Place of Origin: | Guangdong , China |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949 |
Model Number: | 4007 N P03 / 4007NP03 / 4007N P03 |
Minimum Order Quantity: | 1pc |
---|---|
Price: | $59-159/pc |
Packaging Details: | strong carton box or as customer's need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union,paypal or others |
Supply Ability: | 1000pcs/week |
Material: | Rubber Bellows ,Steel Piston | CONTITECH: | 4007 N P03 / 4007NP03 / 4007N P03 |
---|---|---|---|
Other Name: | GIGANT Air Spring Shock | AIR FREN: | 2040073CM |
GUOAMT NO.: | 1T4007NP03 | GIGANT: | 246090 |
High Light: | firestone air springs,truck air bag suspension |

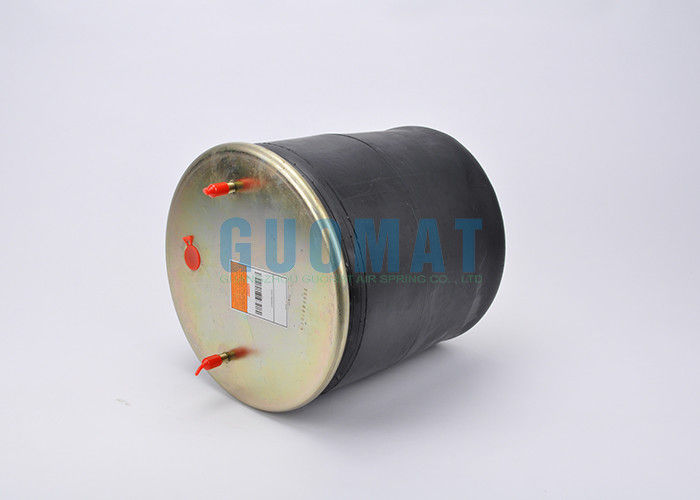

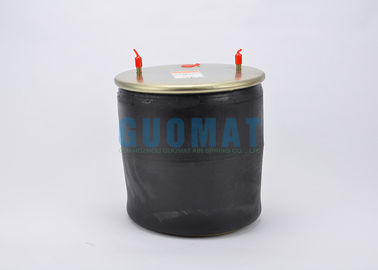

Air Springs CONTITECH 4007 N P03 / 4007NP03 For GIGANT 246090 AIR FREN 2040073CM
OEM Cross Number:
GUOAMT NO.:1T4007NP03
CONTITECH 4007 N P03 / 4007NP03 / 4007N P03
GIGANT 246090
AIR FREN 2040073CM
OEM Suspension Supplier Number:
GIGANT 246090
AIR FREN 2040073CM

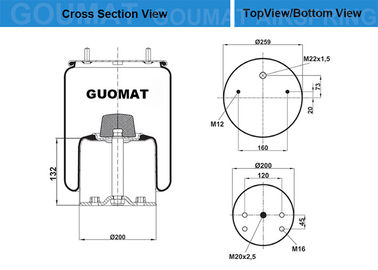

The Composition Of Reversible Sleeve Models Rolling Air Spring Element Has The Following Aspects-GUOMAT
❶ screw bolt / Stud - Produced as a permanent part of the Cover Plate assembly for maximum strength and durability. It is used to attach the air spring to the vehicle’s suspension system.
❷ Combined link rod / Combo Stud – Used as the dual purpose of installing the air spring to the suspension system and providing the air inflation.
❸ Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.
❹Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.
❺ Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.
❻ Bottom Piston - Provides a low installation of air spring. To control the pressure in a changing under the load characteristics of spring.
❼Piston Bolt - Connecting the piston to the bellows. Sometimes extensions as an additional vehicle suspension spring.
