| Place of Origin: | Guangdong , China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949 |
| Model Number: | 4022 N P03 / 4022NP03 / 4022N P03 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $59-159/pc |
| Packaging Details: | strong carton box or as customer's need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,paypal or others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Bellows ,Steel Piston | CONTITECH: | 4022 N P05 / 4022NP05 / 4022N P05 |
|---|---|---|---|
| Other Name: | SAF Air Spring Suspension | SAF Number: | 3229003300 |
| GOODYEAR.: | 1R11-781 / 1R11781 | DUNLOP Number: | D11B41 |
| FIRESTONE: | W01 M58 8612 / W01-M58-8612 / W01M588612 | PHOENIX: | 1DK22E-9 |
| High Light: | firestone air springs,truck air bag suspension |
||

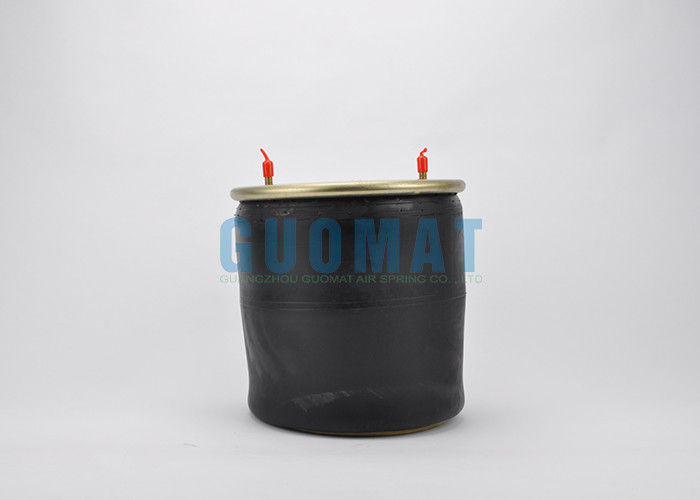

CONTI 4022NP05 FIRESTONE W01M588612 Air Spring System For ROR MLF7030
OEM Cross Number:
GUOAMT NO.:1T4022NP05
CONTITECH 4022 N P05 / 4022NP05 / 4022N P05
FIRESTONE 1T17BS-6 / 1T17BS 6 / 1T17BS6
FIRESTONE W01 M58 8612 / W01-M58-8612 / W01M588612
CF GOMMA 1T300-37 206585 / 1T300 37 / 1T30037
PHOENIX 1DK22E-9
AIRTECH 32619KPP
CONTI Number: 4022NP05
FIRESTONE Number: 1T17BS-6
FIRESTONE Number: W01M588612
AIRTECH Number: 132922
AIRTECH Number: 32619KPP
GOODYEAR Number: 1R11-781
GOODYEAR Number: 1R11781
AIRTECH Number: 132922
GOODYEAR Number: 1R11781
FIRESTONE Number: W01M588612
FIRESTONE Number: 1T17BS6
DUNLOP Number: D11B41
| AIRTECH | CONTITECH |
| 132922 | 50669 |
| AIRTECH PROD. N0. | FIRESTONE REF. |
| 32619 KPP | W01 M58 8612 |
| AUTOMINT | STYLE NO. |
| 3905 | 1T17BS-6 |
| BL ACKTECH | GRANNING |
| RML 75133 CP5 | 16098 |
| CONTINENTAL | PHOENIX |
| 4022 N P05 | 1 DK22 E-9 |
OEM Suspension Supplier Number:
ROR Number: MLF7030
ROR Number: MLF7044
ROR Number: MLF7135SAF
SAF Number: 2619V
SAF Number: 3229003300
PIRELLI Number: 1T30037206585
WABCO Number: 9518117810
SAF Number: 3229003300
DT Number: 1036000
PE Automotive Number: 08410013
WABCO Number: 9518117810
PE Automotive Number: 08410073
SAF Number: 2619V
ROCKWELL Number: MLF7135
ROCKWELL Number: MLF7044
ROCKWELL Number: MLF7030
PIRELLI Number: 1T30037206585

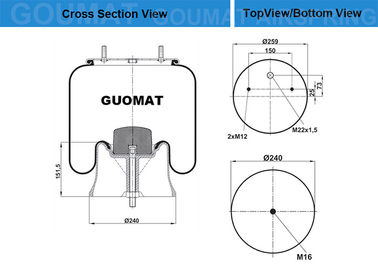

The Composition Of Reversible Sleeve Models Rolling Air Spring Element Has The Following Aspects-GUOMAT
❶ screw bolt / Stud - Produced as a permanent part of the Cover Plate assembly for maximum strength and durability. It is used to attach the air spring to the vehicle’s suspension system.
❷ Combined link rod / Combo Stud – Used as the dual purpose of installing the air spring to the suspension system and providing the air inflation.
❸ Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.
❹Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.
❺ Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.
❻ Bottom Piston - Provides a low installation of air spring. To control the pressure in a changing under the load characteristics of spring.
❼Piston Bolt - Connecting the piston to the bellows. Sometimes extensions as an additional vehicle suspension spring.
