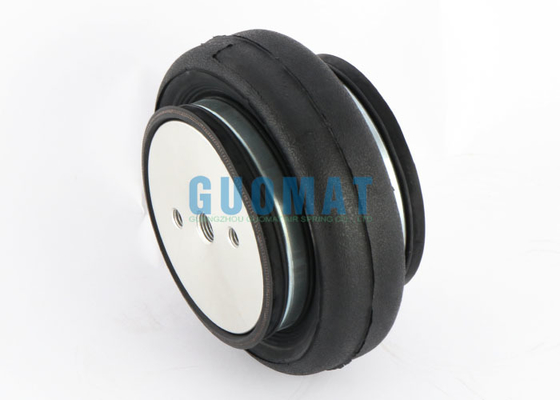

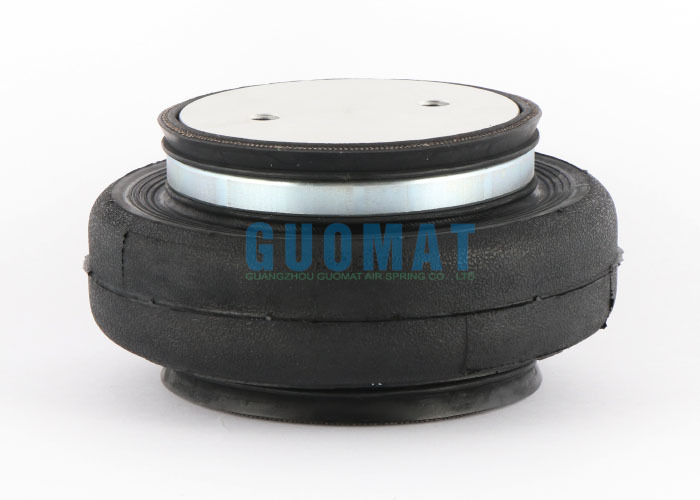

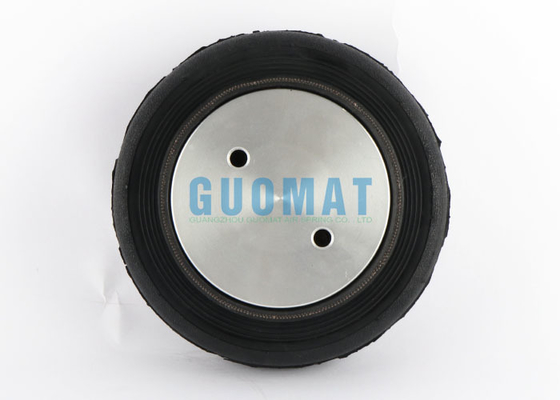

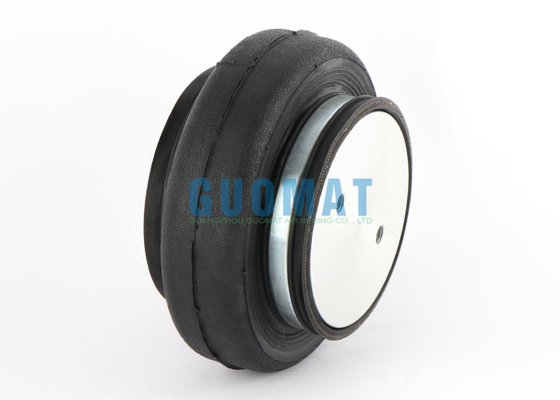

1B5-500 Goodyear Convoluted Air Spring 1K130070 GUOMAT Rubber Air Bellows Suppliers

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1K130070

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$59.9-69.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Warranty:	12 Months	Main Material:	Natural Rubber
Package:	Brown Carton Box	Other Name:	Steel Single Convoluted Air Bag
Goodyear:	1B5-500	Structure:	Double Cylinder
Application:	For Mineral Sample Pulverizers	MOQ:	6pcs
Highlight:	Convoluted Air Spring Rubber Bellows , GUOMAT Air Spring , Air Bellows Suppliers

1B5-500 Goodyear Convoluted Air Spring 1K130070 GUOMAT Rubber Air Bellows Suppliers

Product Description

Item	Industrial Air Spring	Brand	GUOMAT
Model	1K130070	Spring Type	Air Spring
Spring Material	Rubber+Steel	Structure	Double Cylinder

1K130070 Replace The Following Part Number

Goodyear Part Number: 1B5-500

Goodyear Part Number: 1B 5-500

Goodyear Part Number: 1B5 500

Goodyear Part Number: 1B 5500

Goodyear Bellows Number: 579-913-500

Goodyear Bellows Number: 579 913 500

Goodyear Bellows Number: 579913500

Firestone Part Number: W01-358-7001

Firestone Part Number: W01 358 7001

Firestone Part Number: W013587001

Contitech part Number: FS50-5

Contitech part Number: FS 50-5

Contitech part Number: FS50-5 CI

Contitech part Number: FS 50-5 CI

Contitech part Number: FS50-5 CI 1/4 NPT

Contitech part Number: FS 50-5 CI 1/4 NPT

Contitech part Number: FS50-5 CI 1/4 NPT CA

Enidine Part Number: YI-1B5-500

Enidine Part Number: YI 1B5-500

Enidine Part Number: YI1B5500

Technical Data

Top cover plate diameter: 85mm
Bottom cover plate diameter: 85mm
The threaded hole: M8x1.5
Air inlet: G1/4
Center distance between threaded holes: 44.5mm
Effective diameter: 110mm
Min.height: 55mm
Max.height: 90mm
Stroke: 35mm

Model No.		1B5-500	1B5-510	1B5-520
Max.Stroke(in.)		2.00	3.00	3.00
Force(lbs.)@100psi at a stroke of	1.0 (in.)	1250	1500	1500
	2.0(in.)	560	1200	1150
	3.0(in.)	-	520	440
	Maximum Stroke	560	520	440
Isolator Load Range@100psi(lbs.)		1100-1350	1050-1500	1000-1500
Approximate System Natural Frequency Hz		3.25	2.75	2.67
Design Height Range(in.)		2.5-3.0	2.5-4.0	3.5-5.0
Isolation at input frut of		72	82	83
		94	96	96
		98	99	99

Model No.	1B5-500	1B5-510	1B5-520
Max.diameter @100psi(in.)	5.70	6.00	6.50
Compressed Height (in.)	1.80	1.80	1.80
Min.height as actuator (in.)	1.80	1.80	2.80
Max.height as insulator (in.)	3.80	4.80	5.80
Max.height as actuator(in.)	3.80	4.80	5.80
End Plate Ret.Dia.(in.)	3.40	3.40	3.40
Blind Tap Spacing(in.)	1.75	1.75	1.75
End Retainer Style	2	2	2
Air Fitting Port(NPTF)	1/4	1/4	1/4
Internal Bumper	NO	NO	NO
