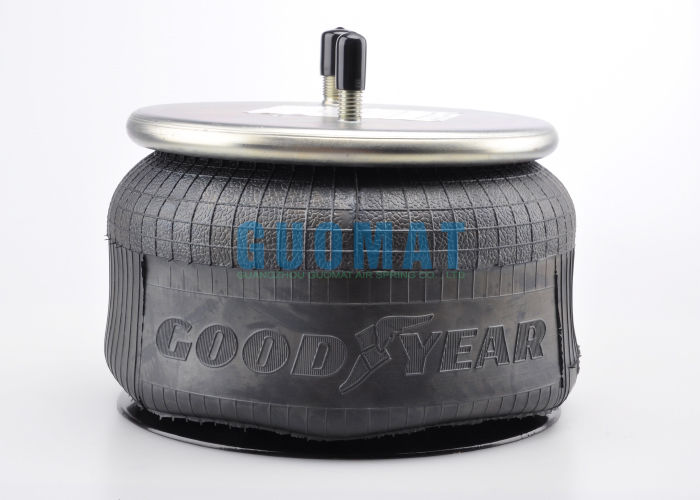

1R11-199 Goodyear Suspension Rubber Bellows 566-222-199-00000 Truck Air Spring

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	Goodyear
Certification:	ISO/TS16949:2009
Model Number:	1R11-199

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$69.9-159.9/pc
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

OEM No.:	Goodyear 1R11-199	Material:	Imported Natrul Rubber
Warranty:	1 Year	Suspension Type:	Air Shock Absorber/Air Spring
Cross Number:	W01-358-8510	Operation:	Gas-filled
Other Name:	Truck Suspesnion Air Spring
Highlight:	1R11-199 Suspension Rubber Bellows , Rubber Bellows Air Spring 566-222-199-00000 , Truck Air Spring 566-222-199-00000

1R11-199 Goodyear Suspension Rubber Bellows 566-222-199-00000 Truck Air Spring

Cross Information
Manufacturer : GOODYEAR

Goodyear : 1R11-199

Goodyear Part Number : 1R11-199

Goodyear Bellows Number: 566-222-199-00000

Firestone Style Number : W01-358-8510

Firestone Style Number : W01 358 8510

Firestone Style Number : W013588510

Volvo Part Number: 20554759

Technical Data

Natural height: 160mm

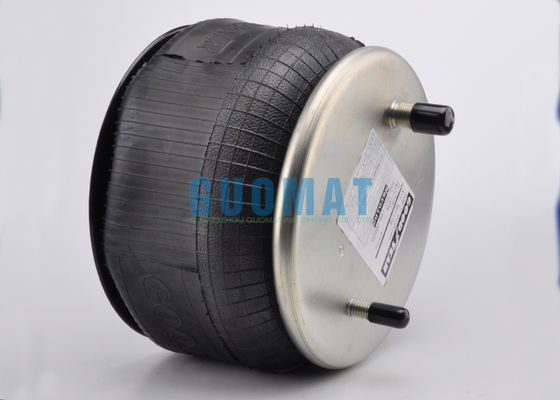

Top cover diameter: 231mm
Screw: 1/2-13UNC
Combination stud: 3/4-16UNC, 1/4NPTF
Center distance between screw and combination stud: 140mm

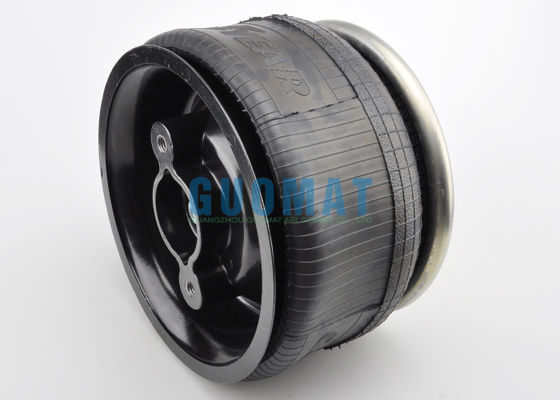

Base piston diameter: 218mm
Threaded holes: 2x1/2-13UNC
Center distance between threaded holes: 105mm

Goodyear Rolling Lobes Truck Air Spring

Part Number	Bellows Number	Piston Number
1R8-009	566-16-3-007	566-16-7-000
1R8-031	566-16-3-007	566-16-7-000
1R8-034	566-16-3-007	566-16-7-021
1R8-041	566-16-3-007	566-16-7-021
1R9-065	566-18-3-003	566-16-7-009
1R9-003	566-18-3-004	566-16-7-021
1R9-047	566-18-3-004	Not Included
1R9-053	566-18-3-004	566-16-7-021
1R9-054	566-18-3-004	566-16-7-000
1R9-056	566-18-3-004	566-16-7-000
1R9-070	566-18-3-004	566-16-7-021
1R9-071	566-18-3-004	566-16-7-021
1R9-025	566-18-3-010	566-16-7-017
1R9-038	566-18-3-010	566-16-7-017
1R12-419	566-20-7-038	566-20-7-233
1R12-423	566-20-7-038	566-20-7-246
1R12-421	566-20-7-076	566-20-7-158
1R12-422	566-20-7-076	566-20-7-036
1R12-406	566-20-7-120	566-20-7-223
1R11-018	566-22-3-006	566-20-7-079
