FD120-17 Contitech Air Spring Bball W01-M58-6353 Firestone Industrial Air Spring

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B120-17

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$59.9-69.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Double Convoluted Air Spring	Spring Material:	Rubber
Type:	Gas-filled	Packing:	Neutral Packing
Firestone:	W01-M58-6353	Contitech:	FD 120-17
Airkraft:	2B-181/13054	Color:	Black
Highlight:	FD120-17 Contitech Air Spring , Contitech Air Spring Bball

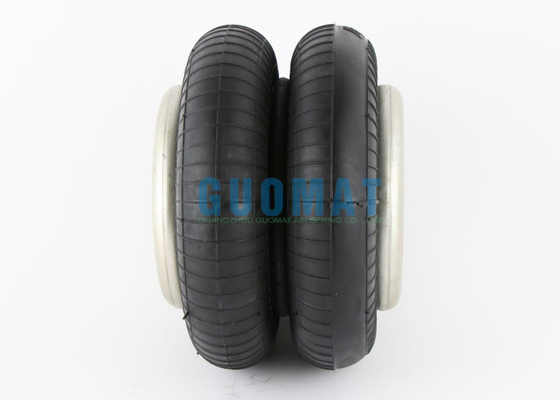

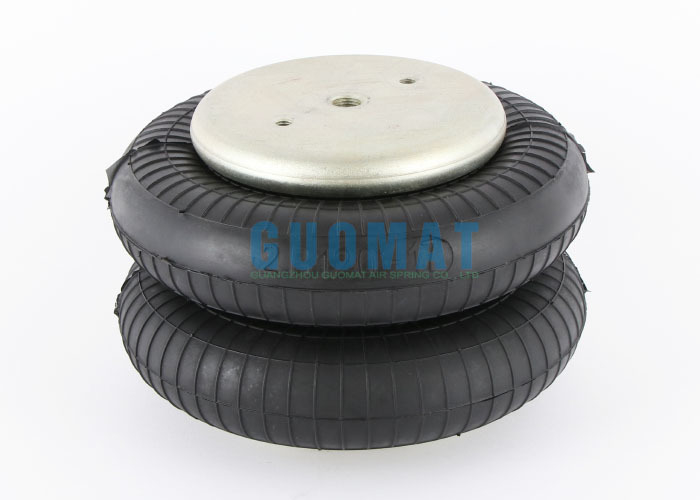

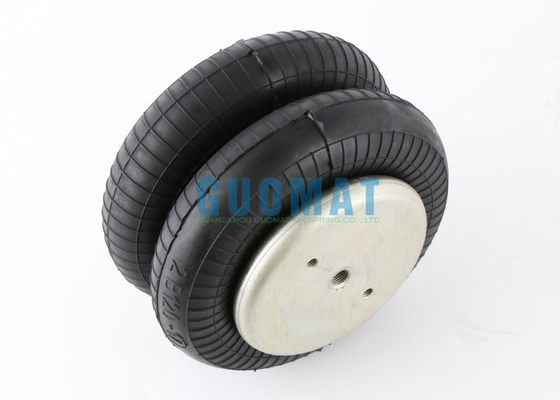

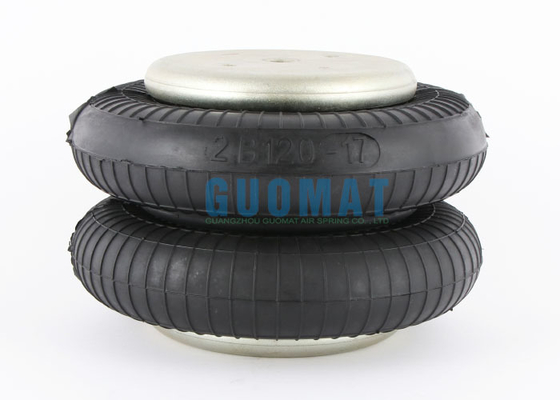

FD120-17 Contitech Air Spring Bball W01-M58-6353 Firestone Industrial Air Spring

Product Description

Item Name: Industrial Air Spring

Brand: GUOMAT

Model No.: 2B120-17

Convolutions: 2

Color: Black

Warranty: 1 Year

Material: Rubber and Steel

Related OE Numbers

Contitech	FD 120-17	Contitech	FD120-17
Firestone	W01-M58-6353	Firestone	Style 26
Airkraft	113054	Airkraft	2B-181

W01M586353,W01 M58 6353,W01-M58-6353,WO1M586353,WO1 M58 6353,WO1 M58 6353

FD120-17,FD 120-17,FD120 17,FD12017,FD120-17 CI G1/4,113054,2B-181

Product Technical Parameters

Top Cover Plate Dia.:132mm

Bottom Cover Plate Dia:135mm

Treaded Hole Center Distance:70mm

Distance Gas Hole Between Nuts:35mm

Gas Hole Type:G1/4

Treaded Hole:2 X M8X1.25

The Rubber Bellows Max.Outer Diameter: 215mm

The Max.Height: 230mm

The min. Height: 75mm

The Stroke: 155mm

Firestone Style Number: Style 26

Assembly Number: W01-M58-6353 / W01 M58 6353 / W01M586353

Blind nuts,1/4BSP

Assembly Number: W01-M58-6387 / W01 M58 6387 / W01M586387

Blind nuts,3/4BSP

Assembly Number: W01-M58-6988 / W01 M58 6988 / W01M586988

Countersunk steel bead rings 40mm bolts,nuts,washers

Assembly Number: W01-358-0142 / W01 358 0142 / W013580142

Rubber Bellows Only

Dynamic Characteristics at 205 mm Design Height
(Required for Airmount isolator design only)

Gauge Pressure (Bar)	Load (kN)	Spring Rate(kN/m)	Natural Frequency Hz
3	3.74	59	1.99
4	5.15	76	1.92
5	6.52	93	1.88
6	8.03	109	1.83
7	9.41	124	1.81

Force Table

Assembly Height (mm)	Volume@7bar (cu cm)	EFF Area @7 Bar(cm/sq)	kN Force
Assembly Height (mm)	Volume@7bar (cu cm)	EFF Area @7 Bar(cm/sq)	@3BAR	@4BAR	@5BAR	@6BAR	@7BAR
220	4202	118	3.19	4.44	5.66	7.06	8.29
200	3918	139	3.90	5.35	6.75	8.32	9.73
180	3594	157	4.51	6.12	7.70	9.43	11.00
160	3233	174	5.08	6.82	8.57	10.46	12.20
140	2840	191	5.60	7.48	9.40	11.46	13.35
120	2434	206	6.05	8.09	10.16	12.36	14.38
100	2007	8.63	6.42	8.63	10.81	13.11	15.25
80	1564	228	6.76	9.08	11.34	13.72	15.94
