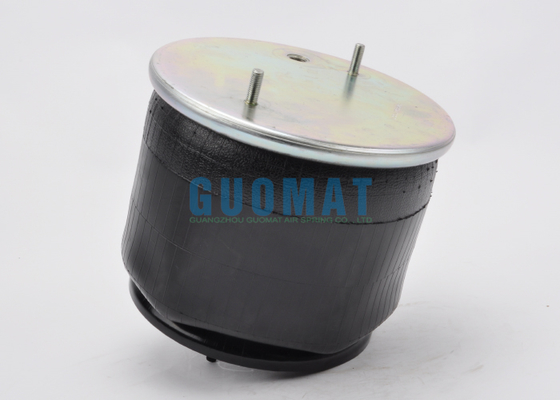

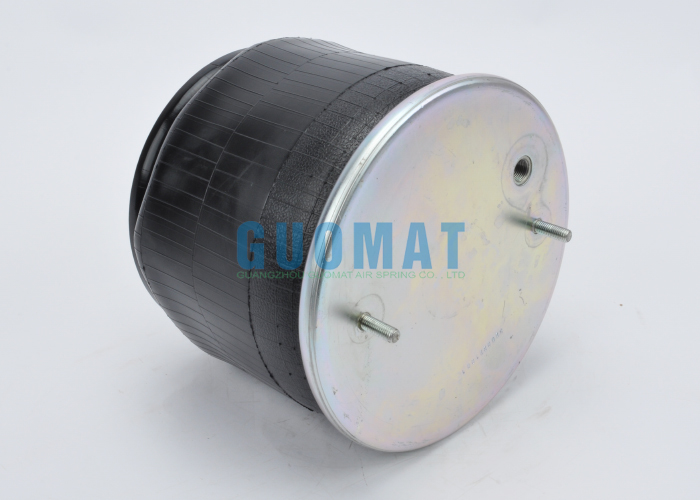

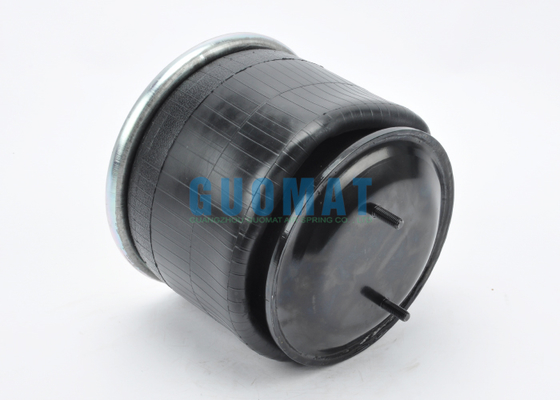

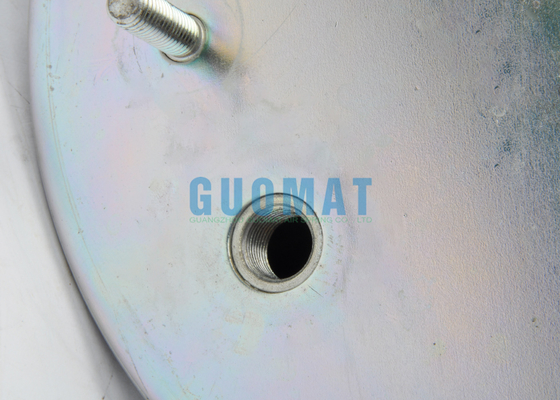

OEM Replacement 1R12-825 Goodyear Rubber Air Spring Volvo Truck Suspension 20703452

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1T6022

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$79.9-89.9/pc
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Item:	Truck Air Suspension Assembly	Material:	Rubber+Steel
Warranty:	1 Year	Color:	Black
Application:	Truck Air Suspension	Goodyear:	1R12-825
Volvo No.:	20703452	Stroke:	215mm-350mm
Highlight:	1R12-825 Truck Suspension Air Spring , Volvo Truck Suspension Air Spring , OEM Replacement Air Spring

OEM Replacement 1R12-825 Goodyear Rubber Air Spring Volvo Truck Suspension 20703452

Product Description

Item	Value
GUOMAT NO.	1T6022
Type	Air Spring
Warranty	12 Months
Truck Model	Heavy Duty Truck
Color	Black
Place of Origin	Guangzhou,China
Certification	ISO/TS16949:2009
Material	Rubber+Steel
Packing	Neutral Packing
MOQ	1 Pcs
Quality	High-Quality
Position	Auto/Truck parts
Application	Auto Suspension Systems

Cross Reference Number

Goodyear Part Number: 1R12-825

Goodyear Part Number:1R 12-825

Goodyear Bellow Number: 566243524

Goodyear Bellow Number: 566 24 3 524

Goodyear Bellow Number: 566-24-3-524

DT Part Number: 2.61032

Volvo Part Number: 20703452

Volvo Part Number: 21054939

Volvo Part Number: 21013010

Volvo Part Number: 21513836

Working Principles and Technology of Truck Suspension Air Springs

Inflation and Deflating Process: Detailed explanation of how the airbag receives compressed air from the air tank through the air system for inflation, and how it is deflated via a valve (manual or automatic).

Height Control: Core function. Explain how the height control valve (mechanical or electronic) senses changes in the relative position between the vehicle frame and axle and automatically adjusts the air pressure within the airbag to maintain the set vehicle height (regardless of load variations).

Pressure Regulation: Explains how air pressure directly translates into load capacity and stiffness. Higher air pressure results in greater load capacity and stiffness.

Shock Absorption: Explains how the compressed air within the airbag absorbs and cushions impact energy from the road, and works with the shock absorber (usually installed separately) to dampen vibration.

Truck Suspension Air Spring

Bellows Number	Piston Number	Goodyear Number
566-16-3-3007	566-16-7-000	1R8-009
566-16-3-3007	566-16-7-000	1R8-031
566-16-3-3007	566-16-7-021	1R8-034
566-16-3-3007	566-16-7-021	1R8-041
566-18-3-003	566-16-7-009	1R9-065
566-18-3-004	566-16-7-021	1R9-003
566-18-3-004		1R9-047
566-18-3-004	566-16-7-021	1R9-053
566-18-3-004	566-16-7-000	1R9-054
566-18-3-004	566-16-7-000	1R9-056
566-18-3-004	566-16-7-021	1R9-070
566-18-3-004	566-16-7-021	1R9-071
566-18-3-010	566-16-7-017	1R9-025
566-18-3-010	566-16-7-017	1R9-038
