W01-358-7025 Firestone Double Convoluted Air Spring 65mm-175mm Stroke For Industrial

Product Details:

Place of Origin:	China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B7025

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$59.9-69.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Type:	Air Spring, Airbags, Air Suspension Spring	Warranty:	12 Months
Operation:	Gas-Filled	Quality:	100% Tested
Stroke:	65-175mm	Convolutions:	2
Firestone:	W01-358-7025	Application:	For Industrial Machine
Highlight:	7025 Convoluted Air Spring , 65mm-175mm Stroke Convoluted Air Spring , Double Convoluted Air Spring 65mm

W01-358-7025 Firestone Double Convoluted Air Spring 65mm-175mm Stroke For Industrial

Product Information

Part Number	1B7025
Working temperature	-40°C bis +70°C
Failure testing	≥3 millions

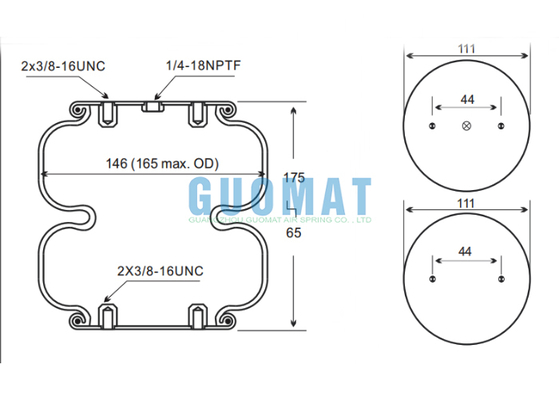

Top Cover Plate Diameter	111mm
Bottom Cover Plate Diameter	111mm
Gas Hole / Air inlet	1/4-18NPTF
Rubber Bellows MAX Diameter	165mm
The Rubber Bellows Natural Diameter	146mm
The Working Stroke	65mm-175mm
Top Cover Plate Screw (Nut) Tooth	2X3/8-16UNC
Bottom Cover Plate Screw (Nut) Tooth	2X3/8-16UNC
Screw Center Distance of Top Cover Plate	44mm
Screw Center Distance of Bottom Cover Plate	44mm

OEM Number

Firestone W01-358-7025

Firestone W01 358 7025

Firestone W013587025

Firestone WO1-358-7025

Firestone WO1 358 7025

Firestone WO13587025

Firestone Style 25

W01-358-7025 Blind nuts,1/4 NPT

W01-358-7047 Blind nuts,3/4 NPT

W01-358-7035 Blind nuts,1/4 NPT both ends

W01-606-7025 3/4NPT both ends(no blind nuts)

W01-358-0030 Socket head aluminum bead rings(bold,nuts,washers not included, use cap screws.

W01-358-7030 3/4NPT(only) upper plater,bild nuts lower plate

W01-358-0319 Rubber bellows only

Force Table

Assembly Hieght (in.)	Volume@100PSIG(in³)	Pounds Force
Assembly Hieght (in.)	Volume@100PSIG(in³)	@20PSIG	@40PSIG	@60PSIG	@80PSIG	@100PSIG
5.0	78	300	590	890	1210	1540
4.0	60	380	720	1080	1450	1810
3.0	39	420	800	1220	1640	2060

Industrial air springs are a mature, high-performance elastic component. Their core value lies in adjustable stiffness and load capacity, excellent vibration isolation, precise height and position control, and long life. Despite drawbacks such as high initial cost and the need for an air source and control system, they are an irreplaceable, key solution in numerous industrial applications requiring precise vibration isolation, high stability, a wide load range, or adaptability to harsh environments. Selection requires comprehensive consideration of factors such as load, travel, frequency, accuracy, environment, space, and cost. With advances in materials, control, and integration technologies, their performance and applicability continue to improve.

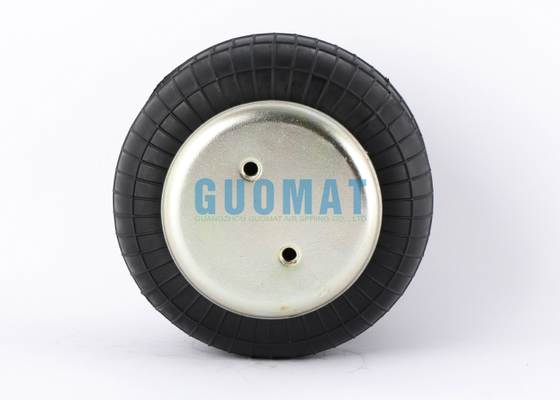

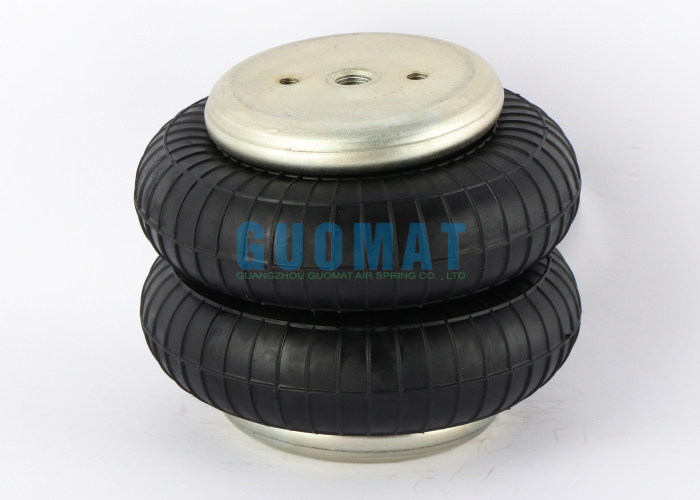

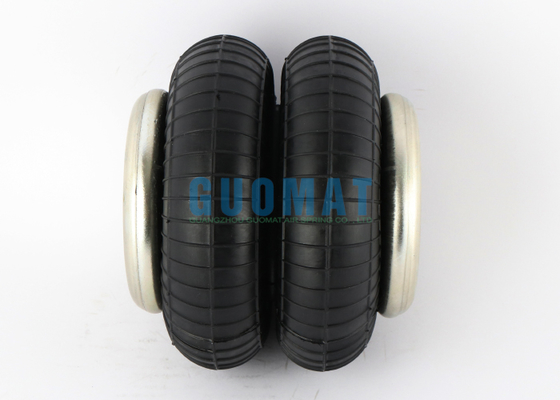

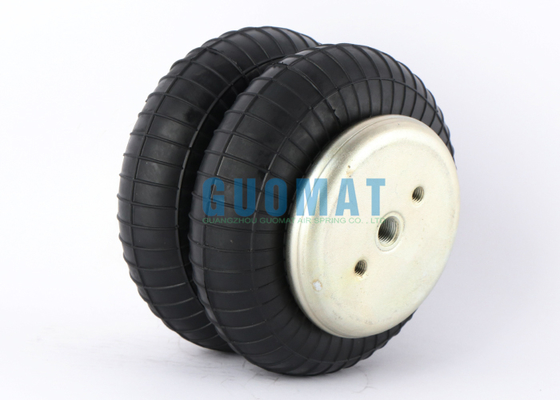

Product Picture

W01-358-7025 Firestone Double Convoluted Air Spring 65mm-175mm Stroke For Industrial 0
