1S3013 Goodyear Rear Air Bag Suspension Air Spring For Motorcycle Or Machine

China 1S3013 Goodyear Rear Air Bag Suspension Air Spring For Motorcycle Or Machine supplier
1S3013 Goodyear Rear Air Bag Suspension Air Spring For Motorcycle Or Machine supplier 1S3013 Goodyear Rear Air Bag Suspension Air Spring For Motorcycle Or Machine supplier 1S3013 Goodyear Rear Air Bag Suspension Air Spring For Motorcycle Or Machine supplier 1S3013 Goodyear Rear Air Bag Suspension Air Spring For Motorcycle Or Machine supplier 1S3013 Goodyear Rear Air Bag Suspension Air Spring For Motorcycle Or Machine supplier

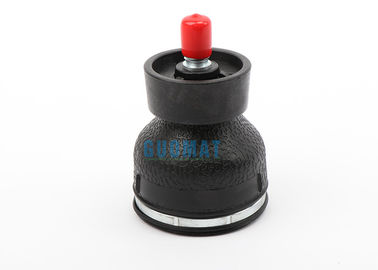

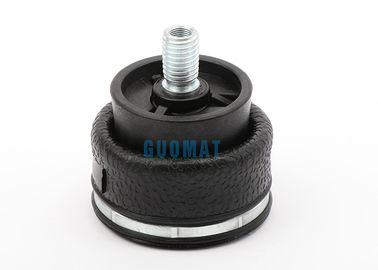

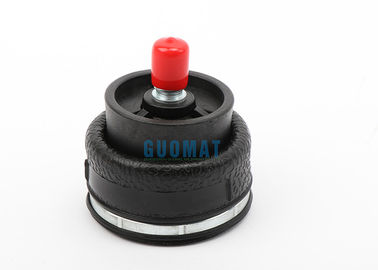

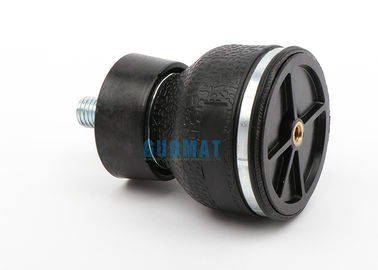

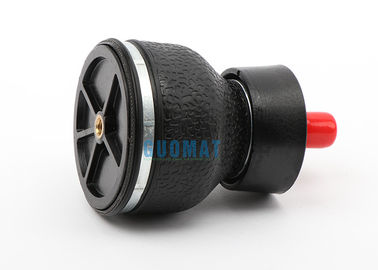

Large Image :  1S3013 Goodyear Rear Air Bag Suspension Air Spring For Motorcycle Or Machine

Product Details:

Place of Origin: Guangdong , China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: G3013

Payment & Shipping Terms:

Price: Negotiable
Packaging Details: Strong Carton Box or as Customer's Require
Delivery Time: 2 - 8 Work Days
Payment Terms: T/T, Western Union,Paypal and Others
Supply Ability: 10000 pcs / week
Contact Now
Detailed Product Description
Main Material: Steel Rubber Position: FRONT Or REAR
Net Weight: 0.26 Kg Other Name: Suspension Air Bags Spring
Car Make: Harley Motorcycle OEM 1: 1S3-013
OEM 2: SZ37-6 OEM 3: W02-358-3000

1S3013 Goodyear Rear Suspension Air Bags Air Spring For Motorcycle or Machine







Cross OEM:



GUOMAT Part Number:G3014

Goodyear Part Number.:1S3-013

Goodyear Part Number:1S3013

Goodyear Part Number:1S3 013

Contitech Part Number:SZ37-6

Contitech Part NumberSZ37 6

Contitech Part Number:SZ376

Firestone Part Number.:W02-358-3000

Firestone Part Number:W023583000

Firestone Part Number:W02 358 3000




Descripition and Specifications:



G.Weight: 0.6 KG

N.Weight: 0.265 KG

Goodyear#:1S3-013

PISTON NUMBER: ASC-06-7-017 / ASC067017 /ASC 06 7 017
Ripple type: sleeve
Automann Bellow#:
Firestone Part Number.:W02-358-3000
Goodyear Bellow#:
Contitech Bellow#:
Triangle Bellows#:
Base plate / Pison type:
Number of roof holes/studs: 1
Upper Plate OD : 3.2 (in.) / 81.28 MM
Top plate C to C diameter: N / A.
Bottom hole stud Qyt: 1
Base Plate OD: 2.40 (in.) / 60.96 MM
Base plate C to C diameter:
Backplane section#:
Backplane alignment: parallel
Bumper: no
bracket:
Minimum height: 1.5 inches /38.1 MM
Maximum height: 3.6 inches /91.44 MM

Extended Height : 3.60 (in.) / 91.44 MM





Detailed parameters:



Vibration isolation - dynamic characteristic values
Design height H: recommended 2.37 inch
Pressure p [psi] 40 60 80 100 120 Vol.V [in.³]
Force (Load) [lbf] 231 327 439 553 677 9
Spring rate [lbf/in] 174 241 312 378 442 9
Natural frequency [Hz] 2.8 2.7 2.7 2.6 2.6 9





Pneumatic application - static characteristic values
Force F [lbf]
Pressure p [psi] 40 60 80 100 120 Vol.V [in.³]
Height H [inch] 3.00 2.2 3.1 4 4.8 5.7 12
Height H [inch] 2.50 2.7 3.6 4.6 5.6 6.5 9.8
Height H [inch] 2.00 3.1 4.1 5.1 6.2 7.3 7.3
Height H [inch] 1.50 3.4 4.5 5.6 6.7 7.9 4.9





Application of 1S3-013 air spring :



1S3-013 Goodyear Sleeve Air Spring. Super-Cushion®AirSprings offers new high productivity and long life for your trucks, trailers and buses. Sleeve Air Springs provides continuous comfort and trouble-free service.



This air spring was originally designed to be used in the Harley-Davidson shock, the current amount is relatively large and Halley motor. But there are many customers used in the relatively small force on the small machinery and equipment, there are precision instruments. Many customers respond to its shock absorption effect is very good.We designed G3014 this airbag is completely replaceable the original one 1S3-013.



The sleeve air spring uses a flexible member without internal molded beads. The flexible member is attached to the end retainer by clamping material between the end retainer and the outer crimp ring, and then the outer crimp ring is forged to the appropriate diameter. Sleeve air springs are commonly used in the following applications:
Passenger car and truck spring
Isolator for truck cab suspension
Seat spring (cab spring) for trucks and buses
Actuators and isolators for industrial applications
