| Place of Origin: | Guangdong , China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | G3006 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Strong Carton Box or as Customer's Require |
| Delivery Time: | 2 - 8 Work Days |
| Payment Terms: | T/T, Western Union,Paypal and Others |
| Supply Ability: | 10000 pcs / week |
| Main Material: | Steel Rubber | Position: | Seat |
|---|---|---|---|
| Net Weight: | 0.28 Kg | Other Name: | AIR Spring Bags |
| Car Make: | Motorcycle Seat | OEM 2: | W02-M58-3006 |
| Status: | Brand New | Spring Type: | Gas Filled |
| Material: | 2-Ply Standard Cord | ||
| High Light: | rear air suspension,rear air springs |
||

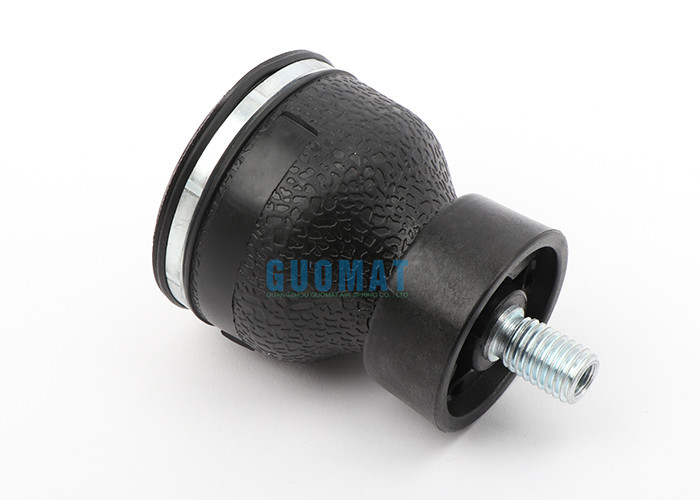

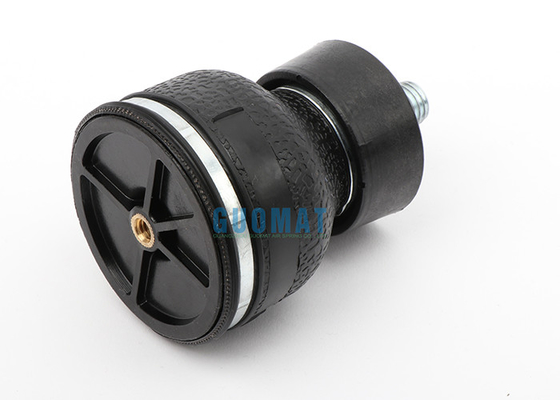

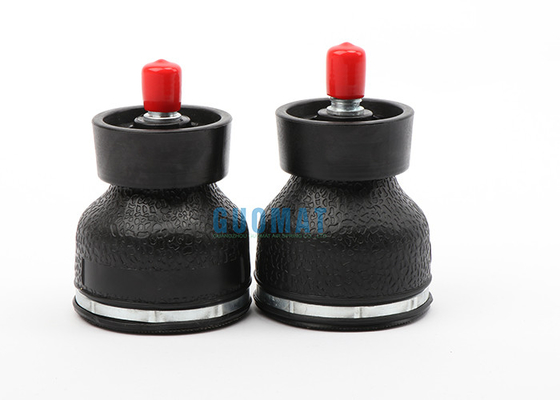

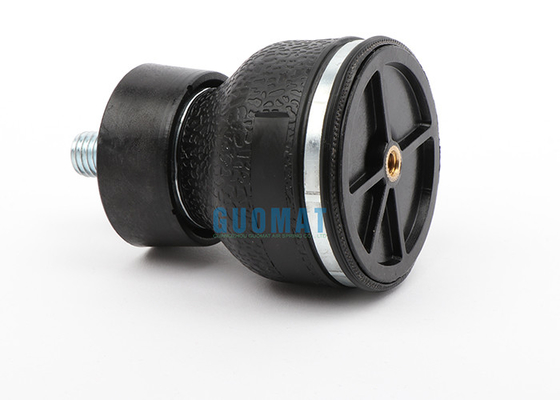

Suspension Air Spring W02-M58-3006 Style 1M1A-1 With Plastic Stud For Precision Instrument
Cross OEM Of this item:
GUOMAT:G3006
Firestone Rubber bellows NO.:1M1A-1
Firestone NO.:W02-M58-3006
Firestone NO.:W02M583006
Firestone NO.: W02 M58 3006
Style 1M1A-1
Two Ply Rubber Bellows
Description Assembly Order No.
Blind nut, 1/8 NPT,
plastic stud W02-M58-3006
Blind nut, 1/8 NPT,
brass stud W02-M58-3006
Blind nut, 1/8 NPT, brass
stud, stainless steel ring W02-M58-3005
Descripition and Specifications Of G3006:
| G3006 Technical Parameters | |
| Top Cover Plate Diameter | 73 mm |
| Bottom Cover Plate Diameter | 61 mm |
| Screw Center Distance | 0 mm |
| Distance Gas Hole Between Nut | together |
| Gas Hole | G1/8 |
| Screw (Nut) Tooth | 1 pcXM8 x 1.25 1 pcXM16 x 2 |
| Rubber Bellows MAX Diameter | 86.36 mm |
| The Stroke | 38-113 mm |
GUOMAT air spring solemn commitment to the customer:
1, we don't spell at a low price, we only make quality products.
2, the same price on the market of air spring, we must be the best quality.
3, the same quality of air spring on the market, we must be the best price.
4, different regions, the same price of air spring there will be a slight difference, because of considering the freight after wait for a reason.
5, GUOMAT air spring not profiteering, only genuine, solid products.
6, all customers for the product quality problems need to be replaced, we have to change.
Packing List of G3000 Air Spring :
| Description | PCS | Net Weight | Package Weight | Gross Weight | Length (cm) |
Width (cm) |
Height (cm) |
Measurememt (cbm) |
| Air Suspension | 1 | 0.6 kg | 0.4 kg | 1.0 kg | 12 | 9.2 | 9.2 | 0.00102 |
| Shipping Terms | By DHL/UPS/FEDEX/TNT/AIRWAY/LCL/FCL or By Sea. It will take about 1 to 4 working days to reach By Express. | |||||||
| Payment Terms | T/T, Western Union,Paypal and Others | |||||||
Other models GUOMAT can produce:
Style 2M1A Two Ply Bellows
1/8 BSP, each end:W02-M58-3002,W02 M58 3002,W02M583002
Assembly weight :0.27 kg.
Force to collapse to minimum height (@ 0 BAR).133.5 N.
Style 2M2A Two Ply Bellows
Blind Nut, 1/8 BSP,plastic studs W02-M58-3019,W02 M58 019,W02M583019
Assembly weight:0.07 kg.
Force to collapse to minimum height (@ 0 BAR) ....22 N.
