| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 916 N1 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $19-29/pc |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,paypal or others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber | Contitech: | 916N1 |
|---|---|---|---|
| Natural Outer Diameter: | 240 Mm | Opening Diameter: | 130.8 Mm |
| Height: | 460 Mm | GOODYEAR: | 9015 |
| DUNLOP FR: | D12S05 | PHOENIX: | 1F21C-5 |
| High Light: | contitech air bags,air spring bellows |
||

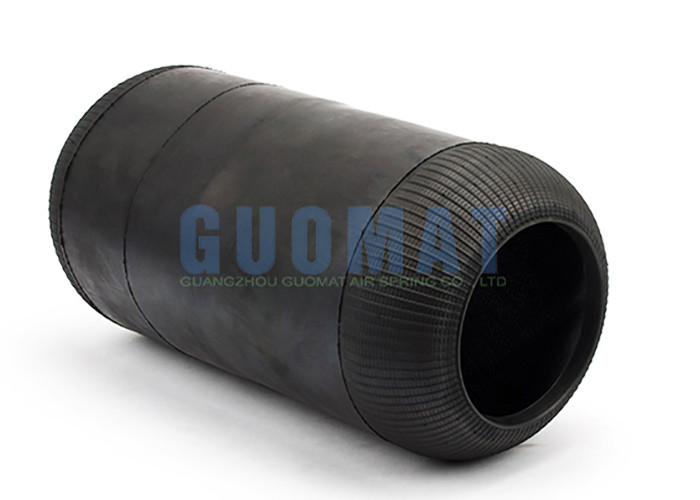

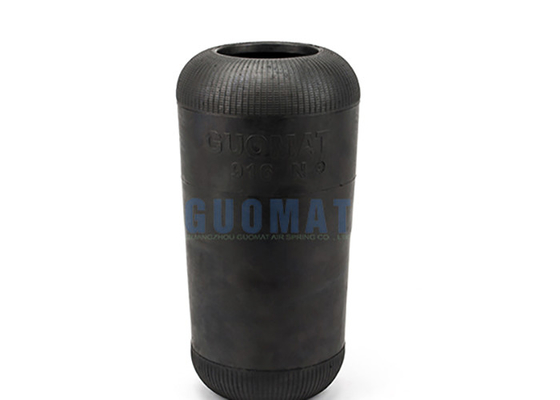

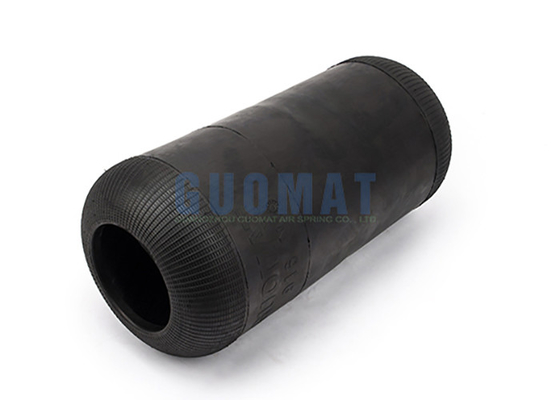

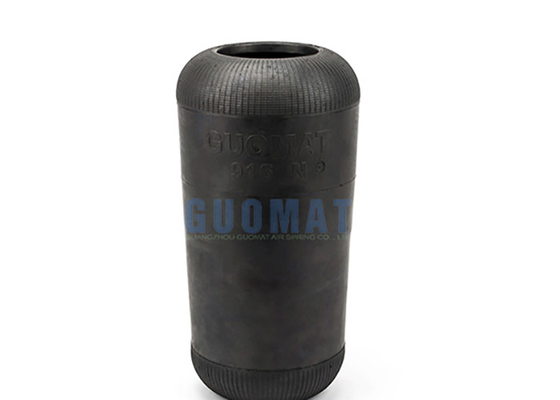

916N1 GUOMAT Air Helper Springs PHOENIX 1F21C-5 GOODYEAR 9015 For MAN 81.43601.0102

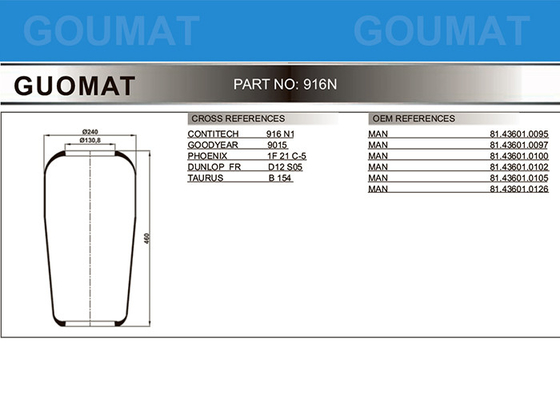

916 N1 Air Spring CROSS REFERENCES
GUOMAT NO.:916N1
CONTITECH 916 N1; 916N1
GOODYEAR 9015
PHOENIX 1F 21 C-5; 1F21C5; 1F21C-5
DUNLOP FR D12 S05; D12S05
TAURU S B 154; B154
Dunlop Part Number
01758A-AP
Contitech Reference
916 N1
Phoenix
1F 21 C-5
Dunlop France
D12 S05
OEM Applications / Part Numbers
MAN 81.43601.0095 MAN 81.43601.0097 MAN 81.43601.0100 MAN 81.43601.0102 MAN 81.43601.0105 MAN 81.43601.0126 OPTARE L5820005
916 N1 Air Spring parameter value:
Nominal Operating Pressure
5.0bar
Maximum Operating Pressure
10.0bar
Minimum Operating Pressure
0.8bar
Space Envelope Diameter
310mm
Assembly Height
265mm
Loading Capacity(at 5.0 bar)
2140kg
OEM REFERENCES
MAN 81.43601.0095
MAN 81.43601.0097
MAN 81.43601.0100
MAN 81.43601.0102
MAN 81.43601.0105
MAN 81.43601.0126
MAN 81436010095
MAN 81436010097
MAN 81436010100
MAN 81436010102
MAN 81436010105
MAN 81436010126
GUOMAT 916N1 Fitment Guide Commercial Vehicles
MAN 81.43601.0126 ( 916N1;GOODYEAR 9015 ) Vehicle : SL 250
MAN 81.43601.0095 ( 916N1;GOODYEAR 9015 ) Vehicle : EL 202
MAN 81.43601.0097 ( 916N1;GOODYEAR 9015 ) Vehicle : MAN 322/422
MAN 81.43601.0102 ( 916N1;GOODYEAR 9015 ) Vehicle : NG 272 Podestlos
MAN 81.43601.0105 ( 916N1;GOODYEAR 9015 ) Vehicle : NL 202 F
MAN 81.43601.0100 ( 916N1;GOODYEAR 9015 ) Vehicle : NL 202 München
MAN 81.43601.0126 ( 916N1;GOODYEAR 9015 ) Vehicle : NL 202 Podestlos
MAN 81.43601.0126 ( 916N1;GOODYEAR 9015 ) Vehicle : NL CNG Podestl.
MAN 81.43601.0126 ( 916N1;GOODYEAR 9015 ) Vehicle : NM 152 Midibus
MAN 81.43601.0126 ( 916N1;GOODYEAR 9015 ) Vehicle : UEL 242
Optare L5820005 ( 916N1;GOODYEAR 9015 ) Vehicle :
The usually kind of 9 that GUOMAT have:
| Contitech | Firestone | Goodyear | Phoenix | Dunlop FR | CF Gomma | Taurus |
| 916 N1 | 9015 | 1F 21C-5 | D 12S 05 | B 154 | ||
| 921 N | W01-095-0226 | 8043 | 1E 18 | D 10S 04 | 1S 285-23 | B 158 |
| 927 N | W01-095-0244 | 8037 | 2E 18B | B 179 | ||
| 928 N | W01-095-0228 | 8042 | 2E 23A | D 12S 03 | B 178 | |
| 943 N | W01-095-0189 | 9001 | D 11S 03 | 1S 285-18 | B 194 | |
| 973 N | W01-095-0198 | 8012 | 1F 21A | SP 1217 | 1S 285-22 | B 141 |
| 945 N | W01-095-0063 | 9014 | 1E 21C | D 11S 02 | 1S 285-25 | K 152 |
| 975 N | W01-095-0437 | 1E 10 |
Features: low cost, wide range of specifications; long service life, no maintenance and lubrication, no internal joystick or piston; no friction effect, soft medium; bending capacity, side load capacity, tight original height.
