Place of Origin: | China |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949:2009 |
Model Number: | 3B2300 |
Minimum Order Quantity: | 1pc |
---|---|
Packaging Details: | strong carton box or as customers need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union,Paypal or Others |
Supply Ability: | 1000pcs/week |
Material: | Steel Cover Plate , Rubber Bellows | GUOMAT: | 3B2300 |
---|---|---|---|
GUOMAT Bellows Number: | 2300 | Screw: | 3/8-16UNC |
Air Inlet: | 1/2 NPT | Plate Dia.: | 113 Mm |
Design Height:: | 187 Mm | Color: | Black |
High Light: | 113mm Suspension Air Spring,3B2300 A Suspension Air Spring,TS16949 Air Suspension Bags |

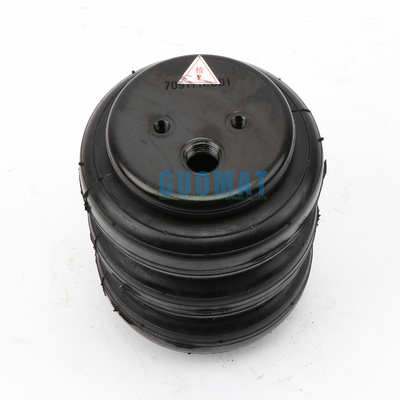

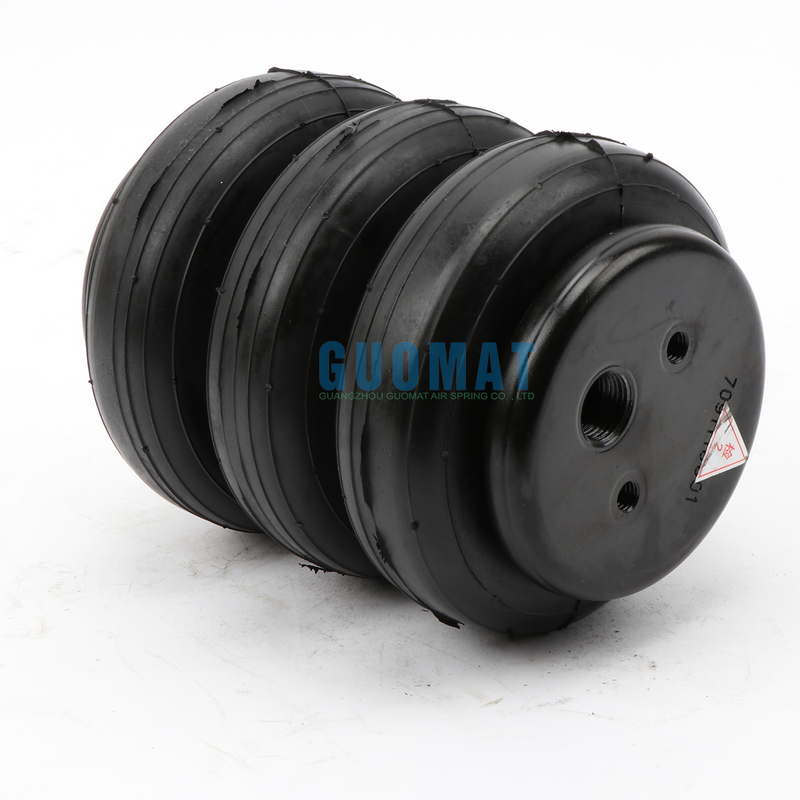

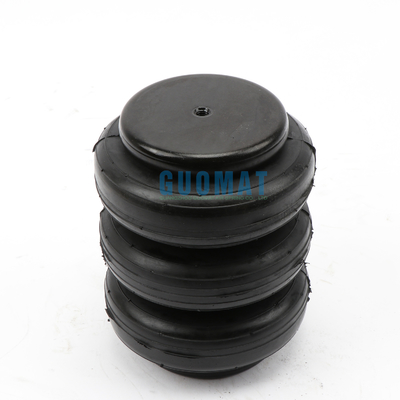

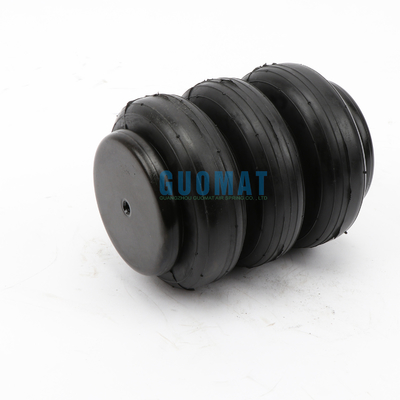

Suspension Air Spring GUOMAT NO. 3B2300 A Comfortable Ride / Air lift Air Suspension In Cars
Description:
GUOMAT 3B2300 offers different types of air springs and air shock absorbers to meet your actuation or isolation needs. Single, double and triple bellows, needle rollers and sleeves are available in various sizes. End bracket types are required depending on your specific installation needs. In addition to our air spring series, we also offer various industrial shock absorbers and vibration damping solutions.
GUOMAT 3B2300 air springs are characterized by extremely high durability, precise technical design and cost efficiency and can be used in a variety of actuation and vibration isolation applications. The GUOMAT 3B2300 gas spring has a proven design combined with a fabric-reinforced flexible Wingprene ™ or natural rubber structure and corrosion-resistant end fixings to provide superior quality and performance. As an actuator, GUOMAT 3B2300 air springs can provide linear or angular movement.
Compared to cylinders, they can isolate vibrations and adjust the load height at the same time, and achieve uniform vibration isolation effects with different loads. These air springs (air shock absorbers) have a good ratio of stroke to pressure height and can accommodate a large number of actuating media such as air, water, nitrogen or antifreeze. As an isolator, the GUOMAT 3B2300 gas spring can effectively reduce the harmful effects of vibrations.
GUOMAT NO. 3B2300 technical parameter:
❶Nut/blind nut
Top plate screw (nut) teeth: 2 x 3 / 8-16UNC
The screw center distance of the top cover plate: 44.5 mm
Screw (nut) teeth of the bottom cover plate: 2 x 1 / 2-13UNC
Screw center distance of bottom cover plate: MIDDLE
❷Air hole/air inlet/air fitting
Air hole/air inlet: 1/2-14NPT
Center distance between air inlet and nut: 22 mm
❸cover
Top plate diameter (width): 113 mm
Diameter of bottom cover (width): 113 mm

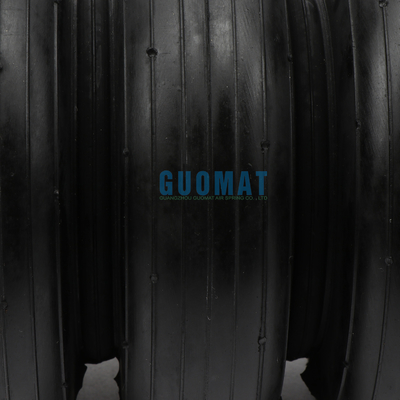

Bell rubber bellows
Natural diameter of rubber bellows: 125 mm
Maximum diameter of rubber bellows: 145 mm
Design height: 187mm
Bellows Number: 2300
❺Bumper block/bumper block
No bumper
❻Belt loop/Belt loop
Belt loop: two pieces of loop belt
GUOMAT 3B2300 can fit for the following cars:
ACURA | MITSUBISHI | INFINITI |
BUICK | NISSAN | ISUZU |
CADILLAC | OLDSMOBILE | JEEP |
CHEVY | PLYMOUTH | KIA |
CHRYSLER | SATURN | LEXUS |
DODGE | SCION | LINCOLN |
FORD | SUZUKI | MAZDA |
GMC | TOYOTA | MERCURY |
HONDA | VOLKSWAGEN | HYUNDAI |
HUMMER |
About GUOMAT air spring:
No matter which GUOMAT air spring product you choose, the air spring has simple installation, smooth driving and strong load-bearing capacity. This is our promise to you and your goods. We have always fulfilled this promise.
Air suspension experts who design GUOMAT air springs and accessories know that driving under harsh conditions is not easy. They all experienced body sinking, sagging and swaying firsthand. After a lot of testing and research, they solved every problem and built the best air spring.
Using China's first brand GUOMAT air spring designed and assembled by China, you can accurately adjust and design your vehicle.
