Place of Origin: | China |
Brand Name: | Goodyear |
Certification: | ISO/TS16949:2009 |
Model Number: | 1B8-560 |
Minimum Order Quantity: | 1pc |
---|---|
Packaging Details: | strong carton box or as customers need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union,Paypal or Others |
Supply Ability: | 1000pcs/week |
Material: | Rubber, Iron | Goodyear: | 1B8-560 |
---|---|---|---|
Warranty: | 12 Months | Weight: | 3.0 Kg |
Other Name: | Air Actuator For Machine | Pressure Ability: | 0.2-0.8 M Pa |
Screw: | 2X3/8-16UNC | Air Inlet: | 1/4" NPT |
Contitech OE: | FS 120-12 CI 1/4 NPT | ||
High Light: | 1/4 NPT Air Spring Contitech,Goodyear Air Spring Contitech,1B8-560 Air Spring Contitech |

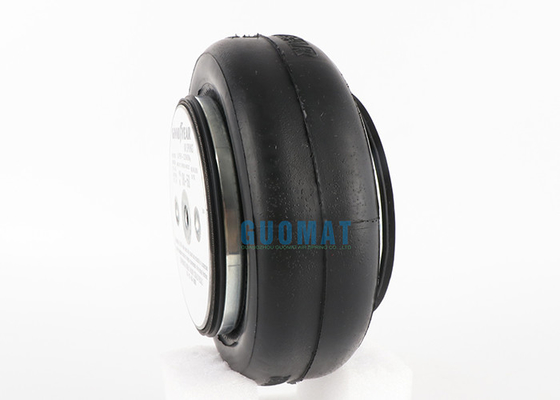

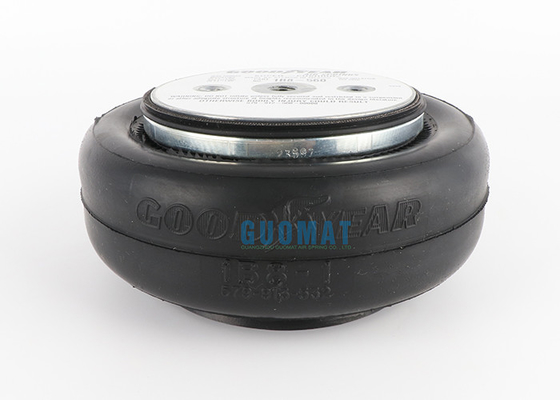

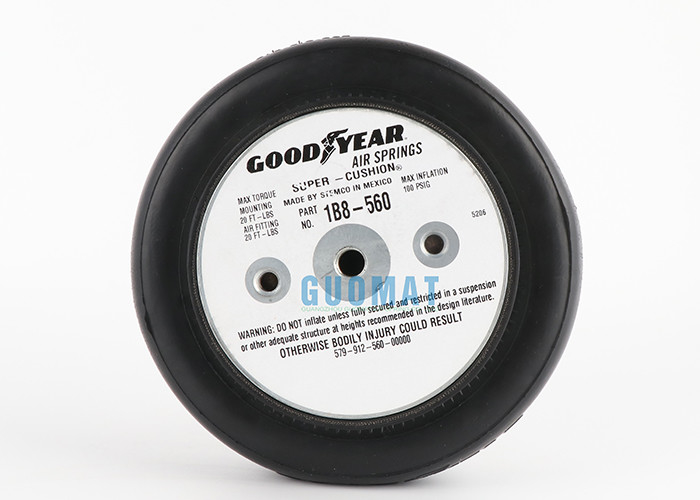

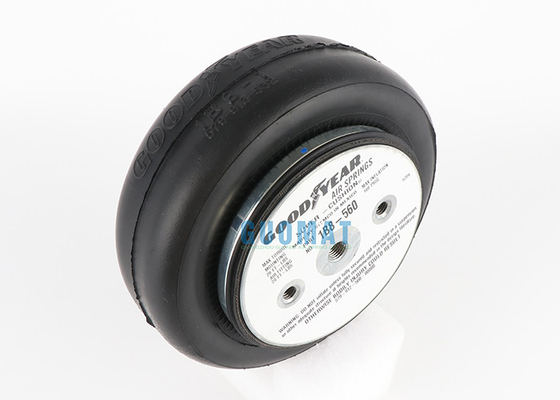

FS 120-12 CI 1/4 NPT Contitech Air Spring Replaces by Goodyear 1B8-560 Air Actuator
Goodyear 1B8-560 Technical parameters Replaces FS 120-12 CI 1/4 NPT Contitech
❶Nut/blind nut
Top plate screw (nut) teeth: 2 x 3 / 8-16UNC
The screw center distance of the top cover plate: 70 mm
Screw (nut) teeth of the bottom cover plate: 2 x 3 / 8-16UNC
The screw center distance of the bottom cover plate: 70 mm
❷Air hole/air inlet/air fittings
Air hole/air inlet: 1 / 4-18NPTF
The screw center distance between the air hole and the nut: 35 mm
❸Cover plate
Top plate diameter: 135 mm
Diameter of the bottom cover: 135 mm
Bell rubber bellows
Maximum diameter of rubber bellows: 240 mm
Natural diameter of rubber bellows: 225 mm
Working stroke: minimum 60 mm to maximum 180 mm
Maximum height: 180 mm
Minimum height: 50 mm
Stroke height: 120mm
❺Bumper block/bumper block
No bumper block
❻Belt loop/Belt loop
With belt loop: not a belt loop
Reference OEM:
Replaces FS 120-12 CI 1/4 NPT Contitech FS120-12 CI 1/4 NPT Contitech FS12012 CI 1/4 NPT Contitech |
W01-358-7598,W013587598,WO1-358-7598,WO13587598 |
Firestone Part # W013587598, | Firestone Part # W01-358-7598 |
Firestone Part # W01 358 7598 | Goodyear Part # 1B8157 |
Goodyear Part # 1B8-157 | Goodyear Part # 1B8 157 |
Goodyear Part #1B8-159 | Goodyear Part #1B8 159 |
Goodyear Part #1B8-560 | Goodyear Part #1B8 560 |
Goodyear Part #1B8-563 | Goodyear Part #1B8 563 |
Goodyear Part #1B8-580 | Goodyear Part #1B8 580 |
Goodyear Part #1B8159 | Goodyear Part #1B8563 |
Goodyear Part #1B8560 | Goodyear Part #1B8580 |
Goodyear 1B8-560 Product Description Replaces FS 120-12 CI 1/4 NPT Contitech:
Maximum Height (inches) | 6.2 | Maximum Stroke (pounds) | 1460 |
Maximum Stroke (inches) | 4.2 | Applicable Technigram? | 105 |
Minimum Usable Height (inches) | 2 | Material | 2-Ply Standard Cord |
1 Inch (pounds) | 2980 | Bead plate Type | 1 |
3 Inch (pounds) | 2240 | Blind Nut Centers (inches) | 2.75 |
Design Height | 5.5 |
Durability of Goodyear air spring
Goodyear Air Spring 1B8-560, without internal rod, piston or sliding seal
In Goodyear's 1B8-560 actuator, there is no internal rod, piston or sliding seal like many traditional cylinders. The advantage in Goodyear's application is that dust or grit will corrode traditional cylinder seals. This gives Goodyear an advantage.
Goodyear air spring angle capability
If there is no U-clamp, the stroke through the arc may produce an angular movement of up to 30 degrees.
Goodyear air spring side load
In some cases, free-stroke actuators are not affected by side loads. This eliminates the possibility of rod bends, nicks and excessive seal wear that are common when using traditional cylinders.
Goodyear air spring 1B8-560 friction reduction
In the absence of a sliding seal, the Goodyear actuator 1B8-560 will not break away from friction.
Goodyear Air Spring 1B8-560 can be used flexibly
The free-stroke actuator can be used with a variety of media (liquid or gas) (Please refer to the data sheet for acceptable media selection.)
Note:
• The restoring force is required to compress the air spring cushion to the minimum height. Usually achieved by applying external force
• The entire air spring cushion surface of the upper and lower plates must be used to absorb the force
• The air spring cushion can only move on the workpiece, or it must be equipped with a limit stop at the end of the stroke, otherwise the rubber material of the air spring cushion will be overloaded or cause internal damage
•Before removing the air spring cushion, the air pressure in it must be discharged.
• During the operation, the wall of the air spring cushion must not be in contact with other parts, otherwise the air spring cushion will be worn and damaged, and air leakage will occur.
