| Place of Origin: | Guangdong , China |
| Brand Name: | Goodyear |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1S4-007 |
| Price: | Negotiable |
|---|---|
| Packaging Details: | Strong Carton Box or as Customer's Require |
| Delivery Time: | 2 - 8 Work Days |
| Payment Terms: | T/T, Western Union,Paypal and Others |
| Supply Ability: | 10000 pcs / week |
| Main Material: | Steel Rubber | Position: | Seat OF Cabin |
|---|---|---|---|
| Weight: | 0.7 KG | Other Name: | Seat Air BAGS |
| Car Make: | Mac-k Truck TRUCK | OEM: | 1S4-007 |
| TRUCK: | 227QS33 | Goodyear: | 1S4-007 |
| Goodyear PISTON: | ASC-08-7-139 | ||
| High Light: | Goodyear Seat Suspension Air Spring,Steel Rubber Suspension Air Spring,1S4-007 Car Bags Suspension |
||

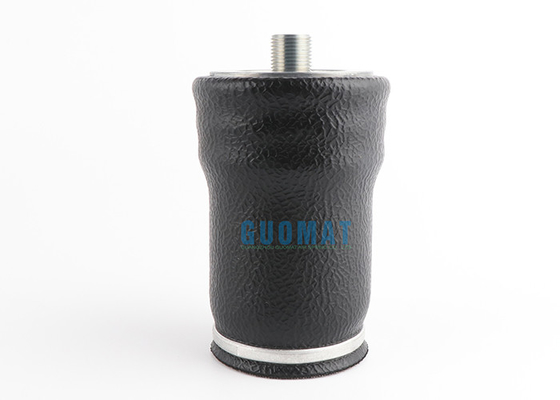

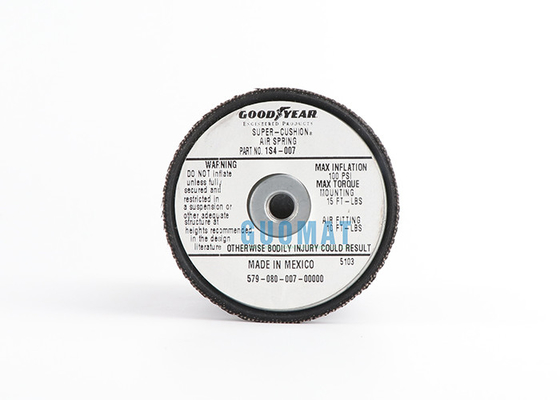

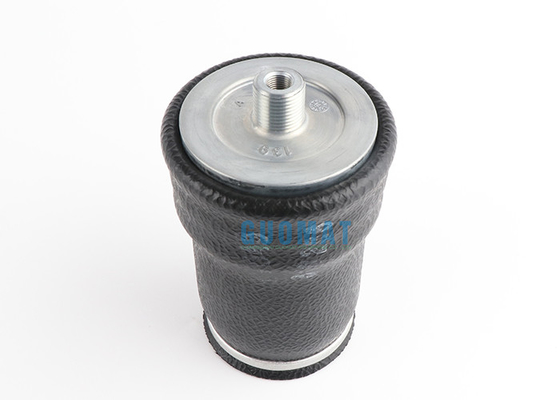

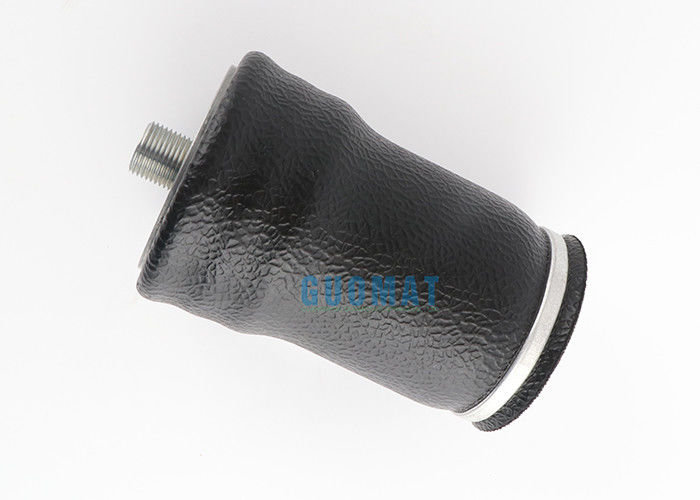

Goodyear Seat Suspension Air Spring 1S4-007 PISTON ASC-08-7-139 For Cabin
1S4-007 Goodyear Air Spring Cross OEM:
Goodyear 1S4-007,
AS7031,
Firestone 7031,
Firestone W02-358-7031,
Link 1101-0020,
Mac-k truck 227QS33,
Goodyear 1S4-007,
Duraform S9383,
Triangle 5001,
Euclid E-FS7031,
Euclid FS7031,
PAI FAS-4906.ASC-08-7-139, ASB-08-5-007, 7014, NBD-10082, 7049, NBD-10549,
7.00", green. Same as Dayton 453-7031, Dayton 453-7031L, Automann ABSZ70-7031,
| Brand | Goodyear |
| Item Weight | 0.675 KG |
| Package Dimensions | 51 x 31 x 18.5 cm |
| Item model number | 1S4-007 |
| Exterior | Smooth |
| Manufacturer Part Number | 1S4007 |
| Cross OEM NO. | |
| Firestone: | W02-358-7001 W02 358 7001 W02 358 7001 |
| Firestone: | W02-358-7002 W02 358 7002 W02 358 7002 |
| Firestone: | W02-358-7031 W02 358 7031 W02 358 7031 |
| Link Manufacturing: | 1101-0020;1101 0020 |
| : | 227QS33 |
| Flexible/Grumman: | 97999901867 |
| Euclid/Meritor Aftermarket: | E FS7031 |
| PAI Industries: | FAS 4906 |
| Euclid/Meritor Aftermarket: | FS7031 |
| TRUCK | 227QS33 |
| LINK CAB & SEAT SPRINGS | 1101 0020 |
| TRUCK | 227QS33 |
Goodyear #: 1S4-007
Top Plate Hole/Stud Qty: 1
Top Plate Dia: 2.65 inch
Top Plate C to C Diameter: N/A
Bottom Plate Hole Stud Qyt: 1
Bottom Plate Dia: 2.87 inch
Min Height: 2.2 inch
Max Height: 7.1 inch
Specifications
Goodyear # 1S4-007 Sleeve Style Air Spring
Single Convolute
4" Nominal Outside Working Diameter
7.1" Extended Height
Top Measurements: 2.65" Diameter, 1 Tapped Hole on Top Retainers 3/8-16, on Pistons - 1/2-13
Bottom Measurements: 2.875" Diameter, 1 Single Centered Stud, 0.750-16 UNF-2A Outside, 0125-27 NPTF Inside
Piston ASC-08-7-139
ASB-08-5-007
| Type | seat air spring | Height Adjusting Handle | 2.2-7.1 INCH |
| Width W(mm) | 117 | Load Range(kN) | 2.501~5.500 |
| Allowable Load(kN) | 3.9 | Thread Length L1(mm) | 12 |
| Main Body Height h(mm) | 180 | Nominal of Thread M(mm) | - |
| Properties | Standard / Performance of Vibration Proofing | Mounting Style | 1 |
| Air Supply Port | 1/8 NPTF | Presence/Absence of Bottoming Bumper | WITHOUT |
Product description of 1S4-007 Goodyear Air Spring:
Goodyear sleeve airbag springs have many applications. The most common uses are passenger car springs and trucks, isolators and springs for truck cab and seat springs, and many common industrial applications. 1S4-007 sleeve air spring is durable and the length of service life.
Goodyear sleeve air springs will use flexible parts instead of internally molded weld beads. The flexible part is connected to the end of the holder by clamping the material between the end and the outer crimping ring, and then adjusting the outer crimping ring to an appropriate diameter.
Other kinds of Goodyear Air Spring:
| 1S4-007 | 57908000700000 | 20035952 | Y | 1S4-007 |
| 1S4-007 Sleeve Air Spring | 1S4-007 | 20116860 | N | 1S4-007 Sleeve Air Spring |
| ENIDINE YI-1S4-007 | 57908000700019 | 20095175 | Y | ENIDINE YI-1S4-007 |
| 1S4-007 58184 AIR LIFT | 57908000700021 | 20095176 | Y | 1S4-007 58184 AIR LIFT |
| 1S4-007 1101-0020 | 1S4-007LM | 20125262 | N | 1S4-007 1101-0020 |
| 1S4-008 | 57908000800000 | 20069111 | Y | 1S4-008 |
| 1S4-008 Sleeve Air Spring | 1S4-008 | 20116861 | N | 1S4-008 Sleeve Air Spring |
| ENIDINE YI-1S4-008 | 57908000800019 | 20095180 | Y | ENIDINE YI-1S4-008 |
| 1S4-008 58186 | 57908000800021 | 20133599 | Y | 1S4-008 58186 |
| 1S4-008 JOHN DEEREAA40969 | 57908000800060 | 20095181 | Y | 1S4-008 JD AA40969 |
| 1S4-008 1101-0021 | 1S4-008LM | 20126768 | N | 1S4-008 1101-0021 |
| 1S4-016 | 57908001600000 | 20095184 | Y | 1S4-016 |
| 1S4-016 Sleeve Air Spring | 1S4-016 | 20254571 | N | 1S4-016 Sleeve Air Spring |
| 1S4-016 NAVISTAR 1680378C1 | 57908001600050 | 20110936 | Y | 1S4-016 NAVISTAR 1680378C1 |
| 1S4-029 NATNAL 2112283 | 1S4-029 | 20095193 | N | 1S4-029 NATNAL 2112283 |
| 1S4-030 Sleeve Air Spring | 1S4-030 | 20254573 | N | 1S4-030 Sleeve Air Spring |
| PACCAR 1S4-030 20-12461 | 57908003000012 | 20095195 | Y | PACCAR 1S4-030 20-12461 |
| 1S4-034 | 1S4-034 | 20054191 | N | 1S4-034 |
| 1S4-035 | 57908003500000 | 20095196 | Y | 1S4-035 |
| 1S4-035 Sleeve Air Spring | 1S4-035 | 20254575 | N | 1S4-035 Sleeve Air Spring |
| BOSTRM 1107622001 1S4-039 | 57908003900000 | 20095200 | Y | BOSTRM 1107622001 1S4-039 |
| 1S4-042 Sleeve Air Spring | 1S4-042 | 20254576 | N | 1S4-042 Sleeve Air Spring |
| 1S4-044 | 57908004400000 | 20111212 | Y | 1S4-044 |
| 1S4-044 Sleeve Air Spring | 1S4-044 | 20254579 | N | 1S4-044 Sleeve Air Spring |
| 1S4-046 | 1S4-046 | 20095205 | N | 1S4-046 |
| 1S4-053 Mac-k truck 227QS39301 | 1S4-053 | 20095211 | N | 1S4-053 Mac-k truck 227QS39301 |
| 1S4-054 | 1S4-054 | 20095212 | N | 1S4-054 |
| 1S4-055 | 1S4-055 | 20095213 | N | 1S4-055 |
| 1S4-056 | 57908005600000 | 20095214 | Y | 1S4-056 |
| 1S4-056 Sleeve Air Spring | 1S4-056 | 20254580 | N | 1S4-056 Sleeve Air Spring |
| 1S4-058 | 57908005800000 | 20095216 | Y | 1S4-058 |
| 1S4-058 Sleeve Air Spring | 1S4-058 | 20266781 | N | 1S4-058 Sleeve Air Spring |
| 1S4-060 | 1S4-060 | 20095218 | N | 1S4-060 |
| 1S4-065 KNOEDLER MFG 9212 | 1S4-065 | 20095222 | N | 1S4-065 KNOEDLER MFG 9212 |
| 1S4-067 Mac-k truck 25166846 227QS34B | 1S4-067M | 20095225 | N | 1S4-067 Mac-k truck 25166846 227QS34B |
| 1S4-067 Sleeve Air Spring | 1S4-067 | 20243837 | N | 1S4-067 Sleeve Air Spring |
| 1S4-068 | 1S4-068 | 20111214 | N | 1S4-068 |
| 1S4-070 | 1S4-070 | 20111215 | N | 1S4-070 |
| 1S4-074 Sleeve Air Spring | 1S4-074 | 20254472 | N | 1S4-074 Sleeve Air Spring |
