| Place of Origin: | Guangdong , China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949 |
| Model Number: | 1T4913NP02 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $59-159/pc |
| Packaging Details: | strong carton box or as customer's need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,paypal or others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber ,Steel ,Aluminum | CONTITECH: | 4913 N P02 |
|---|---|---|---|
| FIRESTONE: | W01-095-0500 | GOODYEAR: | 1R14-753 |
| PHOENIX: | 1D 28 H-16 | DUNLOP FR: | D14B42 |
| Brand: | Guomat Or Netural | ||
| High Light: | W01-095-0500 Truck Air Springs,Firestone Truck Air Springs,Contitech 4913NP02 Truck Air Springs |
||
FIRESTONE W01-095-0500 Truck Air Springs CONTITECH 4913NP02 PHOENIX 1D28H-16
| Cross References | Vehicles OEM References |
| CONTITECH 4913 N P02 | SCANIA 1379392 |
| FIRESTONE W01-095-0500
W010950366 / W01 095 0366 / W01-095-0366 W010950500/ W01 095 0500/ W01-095-0500 W01M588098 / W01-M58-8098 / W01 M58 8098 |
SCANIA 1440294 |
| FIRESTONE 1T19F-14 W01 095 0366 | SCANIA 1543691 |
| GOODYEAR 1R14-753 | Meritor MLF7081 |
| PHOENIX 1D 28 H-16;1D28H-16 | Scania 1402423 |
| DUNLOP FR D14B42 | CONTITECH 4913NP02 |
| CF GOMMA 1T19E-93 | CF GOMMA 206201 |
| TAURUS KR 625-16 | |
| Granning 16105 | |
| WABCO 951 814 753 0 | WABCO 9518147530 |
1T4913NP02 Technical parameters
❶ Screw Bolt / Stud
Top Cover Plate screw bolt / Stud Tooth :2 pcs M12X1.5
Distance Between Two Stud :144 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : M16X1.5.
Distance Between Air inlet and Stud: 177 mm and 33 mm
❸ Cover Plate
Top Cover Plate Diameter: Ø286 mm
❹Rubber Bellows
Rubber Bellows Natural Diameter: 330 mm
Rubber Bellows MAX Height : 797 mm
Rubber Bellows MIN Height :235 mm
Working stroke : 562 mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Bottom Piston
Bottom Piston Diameter : Ø230 mm
Bottom Piston Height :210 mm
❼ Piston Bolt
Piston Bolt Tooth : M16X2.0 and Ø16
2 pieces of Bolt
Distance Between Two Bolt : 70 mm
| Interchange Part Number: | W01-095-0500, W01-M58-8098 | Other Part Number: | 1R14753, D14753, 34913K, 4913NP02 |
| Superseded Part Number: | 1D28H16, MLF7081, 1440294, 1379392 | ||
| Placement on Vehicle: | Left, Right, Front, Rear | Type: | Air Suspension Spring |
| Fitment Type: | Direct Replacement | Size: | Single Dimension(CM) 42.00(Length)*30.00(Width)*30.00(Height) |
| Single Weight(KG): | 13.400 | Upper Mounting Isolator Included: | No Isolator Required |
| Lower Mounting Isolator Included: | No Isolator Required | Upper Mount Type: | Stud |
| Lower Mount Type: | Stud | Included Hardware: | None |
| Drive Layout: | Universal | Platform: | Universal |
| Custom Bundle: | Yes | Material: | Iron,Aluminium Alloy,Rubber |
| Quantity: | Pair | Manufacturer Warranty: | 1 Year |
| OE Spec or Performance/Custom: | OE Spec | Adjustable: | Yes |
| Features: | Sealed | Brand: | Guomat or Netural |
| UPC: | Does not apply | Manufacturer Part Number: | 1T4913NP02 |
566-24-3-522 / 566 24 3 522 /566243522
SCANIA 1440294
SCANIA 1510195
SCANIA 1543691
SCANIA 1379392
SCANIA 1379393
SCANIA 1379394
Scania
1440294
1379392
1379393
FIRESTONE
1T19F-14
Airtech
34913K
Cf Gomma
206201
1T19E93
Contitech
4913NP02
Dunlop
00937AAP
C282H
2821600
V1D28H16
14913K
Goodyear
1R14753
D14753
Phoenix
1D28H16
Meritor
MLF7081

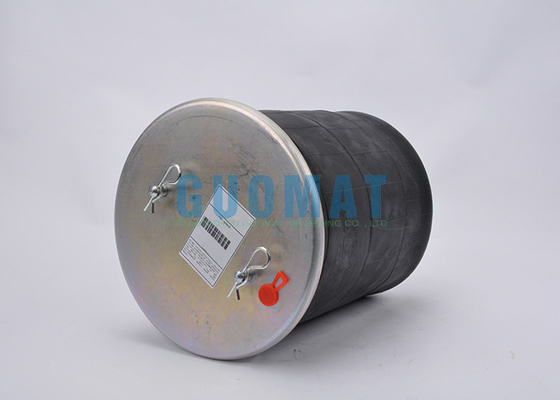

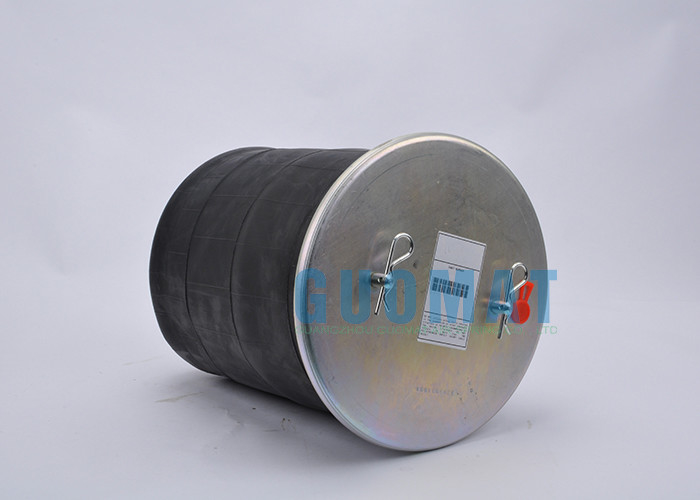

The cover plate and the piston of 4913NP02
4913NP02 CONTITECH has two screw and on air inlet on the cover of the steel plate.The air inlet is not in the middle of these two screw but is in the side of screw rod.

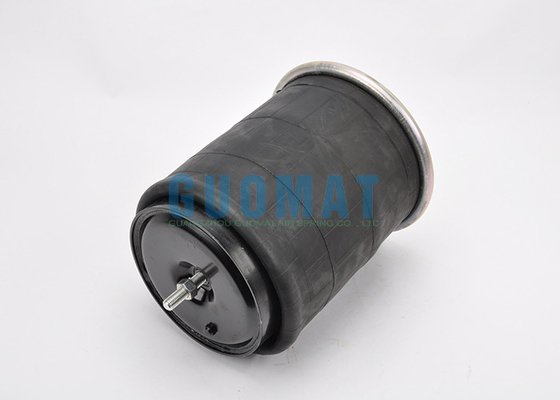

a single screw rod is prominent out of the base.
