| Place of Origin: | Guangdong , China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949 |
| Model Number: | 1T9084 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $59-159/pc |

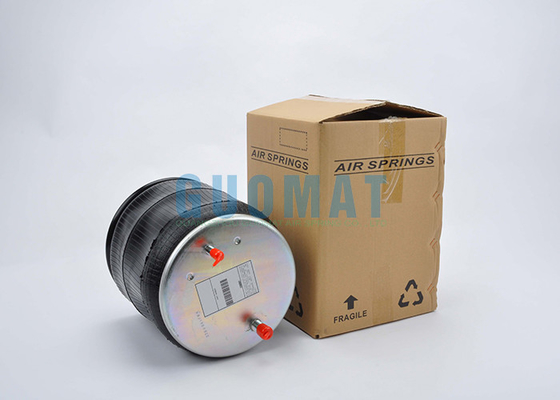

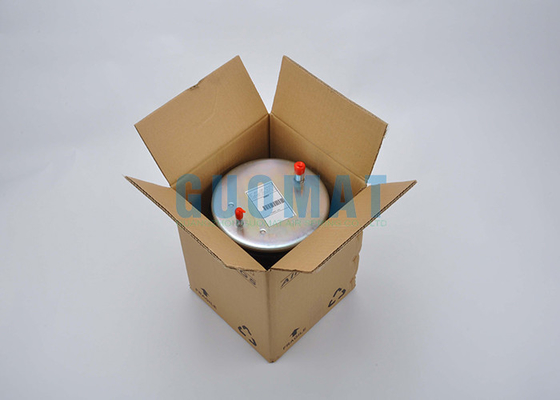

| Packaging Details: | strong carton box or as customer's need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,paypal or others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber ,Steel ,Aluminum | Bellows: | 1T15M-6 |
|---|---|---|---|
| FIRESTONE 1: | W01-358-9084 | GOODYEAR: | / |
| FIRESTONE 2: | W01-358-9211 | Triangle: | 6363 |
| Granning: | 2692 | ||
| High Light: | W01-681-9084 Suspension Air Spring,1T15M-6 Firestone Suspension Air Spring,W01-358-9211 Firestone Suspension Air Spring |
||

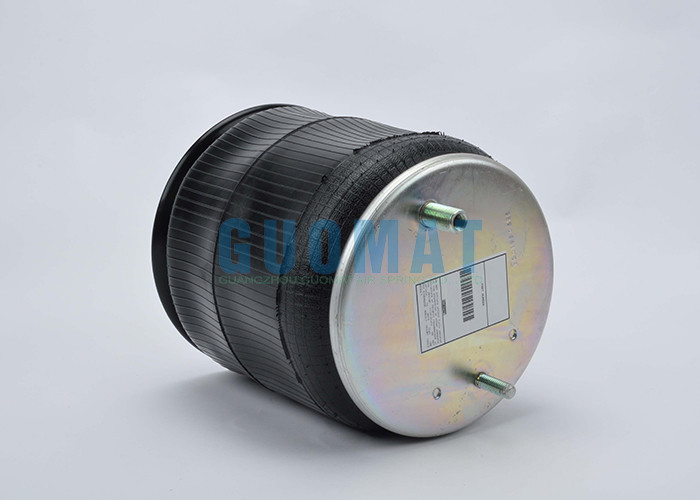

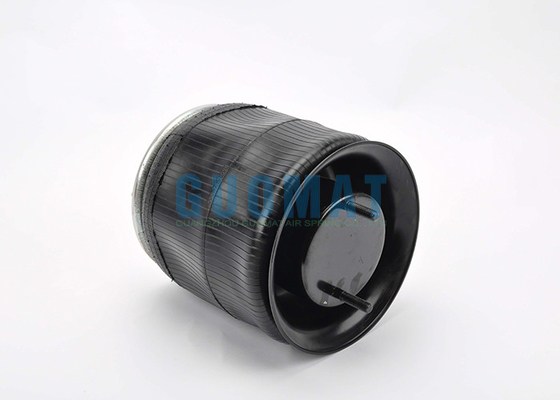

1T15M-6 FIRESTONE W01-681-9084 Suspension Air Spring W01-358-9211 Granning 2692 Triangle 6363
GUOMAT 1T9084 details OEM References
| Firestone | Piston |
| : W01-681-9084 | Wc1 358 0697 |
| 1T 15M-6 | Triangle |
| : W01-358-9211 | : 8512/6363 |
| Granning | |
| 2692/1 5690 |
GUOMAT 1T9084 Technical parameters
❶ Bolt/stud
Top cover plate bolt/stud teeth: 1/2-13UNC
Top cover screw center distance: 231 mm
❷ Air hole/air inlet/air connector
Air hole/air inlet: M22x1,5.
The distance between the air hole and the stud: 25 mm
Distance between air hole and central axis: 95 mm
❸ Cover
Top cover diameter: Ø311.5 mm
❹Rubber bellows
Natural diameter of rubber bellows: 355 mm
❺ Buffer block/buffer block
Bumper height: 30 mm
❻ Bottom piston
Diameter of the bottom piston: Ø257mm
Height of bottom piston: 188.5 mm
❼ Piston bolt
Piston bolt teeth: M16
12 bolts
Center inside between center bolts: 70 mm
Intermediate speed between center bolts: 120 mm
