| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2S70-13F |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $69.9-79.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Name: | Air Spring For Modified Car | Material: | Natural Rubber |
|---|---|---|---|
| Warranty: | 1 Year Warranty | Failure Testing: | ≥3 Millions |
| Type: | With Cover Plate | Name Of Convolution: | 2 |
| Category: | Double Layer | Other Name: | Air Shock Part |
| High Light: | 153mm Rubber Air Bag Suspension Kit,2S70-13F Air Bag Suspension Kit,Double Convoluted Air Bag Suspension Kit |
||
2S70-13F Double Convolute Air Shock Absorber 153mm Rubber Air Suspension Kit Bag
Product Description
Application: Car Air Suspension/Truck/Passenger Car
Item No.: 2S70-13F
Material: Rubber+Steel
Factory Warranty: 12 Months
MOQ: 10 Pieces
Place of Origin: Guangzhou,China
Certification: ISO/TS16949:2009
Packing: Neutral Packing
Quality: High-Quality
2S70-13F Air Spring Technical Data
|
Weight |
1.35kg |
|
Load Bearing |
2.88kN 3.0 bar |
|
The Screw Hole |
6 pieces X1/4 |
|
Flange Width |
134mm |
|
Distance Between Screw Holes |
114.5mm |
|
Design Height |
153 mm |
|
Minimum Height |
65 mm |
|
Maximum Height |
175 mm |
|
Stroke |
110 mm |
|
The Rubber Bellow Diameter |
146mm |
|
Flange Thickness |
15mm |
Product Application
Compatible with most brands of trucks
Product Specification
100% quality assurance tested, quicker response, cheaper and easier to install.
This airbag will give you excellent labels. With even more lift, a softer, smoother ride, and the lowest price in the industry!
How Air Springs Work
When the air spring is working, the compressed air is filled into the inside of the air spring to form a compressed air column. With the increase of the vibration load, the height of the spring decreases, the volume of the inner cavity decreases, the stiffness of the spring increases, the effective bearing area of the air column in the inner cavity increases, and the bearing capacity of the spring increases at this time.
When the vibration load decreases, the height of the spring increases, the volume of the inner cavity increases, the stiffness of the spring decreases, the effective bearing area of the air column in the inner cavity decreases, and the bearing capacity of the spring decreases at this time.
In this way, within the effective stroke of the air spring, the height, inner cavity volume, and bearing capacity of the air spring can be smoothly and flexibly transmitted with the increase and decrease of the vibration load, and the amplitude and vibration load can be efficiently controlled. It is also possible to adjust the stiffness and bearing capacity of the spring by increasing or decreasing the amount of inflation, and an auxiliary air chamber can also be attached to realize self-control adjustment.
The air spring has excellent nonlinear hard characteristics, so it can effectively limit the amplitude, avoid resonance and prevent shock. The natural frequency of the air spring vibration isolation system can be designed very low, even below 1Hz, while the natural frequency of the rubber vibration isolator is generally 5-7Hz.
Therefore, the vibration isolation efficiency of the air spring is much higher than that of other vibration isolation components, and it can isolate low frequency vibration. Especially because the air spring vibration isolation system is easy to implement active control, as a vibration isolation element with adjustable nonlinear static and dynamic stiffness and damping characteristics, air springs are more and more widely used.

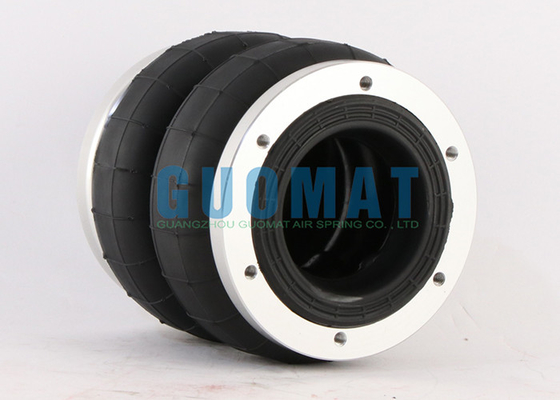

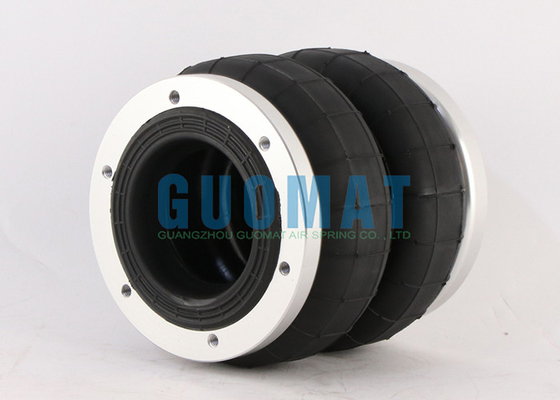

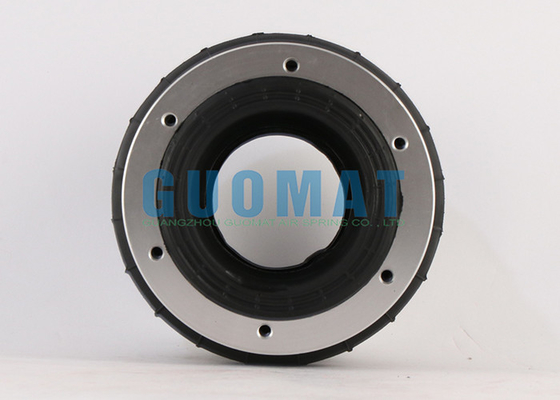

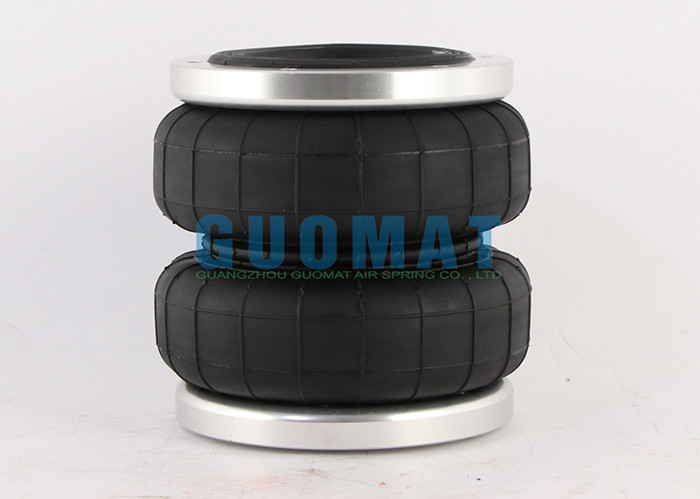

The Real Pictures
