| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | V1E26a |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | $19-29/pc |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Car Make: | BOVA | Main Material: | Natural Rubber |
|---|---|---|---|
| Warranty: | 12 Months | Air Spring: | Bus Air Bag |
| Function: | Reduce Shock | Weight: | 2.0KG |
| Application: | For Bus Air Suspension | Spring Type: | Air Spring |
| High Light: | Bus Air Spring 1E26A,Single Bellow Bus Air Spring,Suspension Rubber Bus Air Spring |
||
Suspension Rubber Air Spring 1E26A Phoenix Bus Single Bellow Air Bag BOVA 234908
OEM Number
|
Manufacturer |
Reference Number |
|
Phoenix |
1E26A |
|
Phoenix |
1 E 26 A |
|
BOVA |
234908 |
|
Bova |
B.23.49.08 |
|
Wijlhuizen |
33.248 |
|
Vibracoustic |
V1E26a |
|
Vibracoustic |
V 1 E 26 A |
GUOMAT:GV1E26a
Material: High Quality Rubber
Warranty: 1 Year
Certification: ISO/TS16949
Origin: China
HS Code: 87088090000
Color: Black
Weight: 2.0kg
Design height:260mm
Deflection(Height min):160mm
Deflection(Height max):420mm
Measurement d max:325mm
Space required:350mm
Loading cap.at 5.0bar:26kn
Loading cap.at 7.0bar:37.2kn
Bus Air Spring
Air springs for passenger cars originated nearly 50 years ago. Due to the vibration and sudden impact of buses caused by road structures, in order to improve the comfort of driving and riding, air springs are used in almost all buses in Europe. We produce air springs for more comfortable driving and optimized vehicle load requirements.
The generally preferred spring type for buses and light commercial vehicles are coil springs. A coil spring is a spring with superspring sensitivity. They provide extremely comfortable suspension and can reach high strokes without increasing the working diameter usually due to the longer product length. Plates and pistons produced in the appropriate diameter and conical form can be easily fitted to and dismounted from these products, both connecting necks are conical. However, in the type produced in a conical form, the direction of the narrower diameter conical part must be mounted on the piston (lower shaft), and the direction of its wider diameter must be mounted on the plate (frame).
Different fields of use have different operating pressure ranges, connection heights, operating spaces, operating frequencies and lifting forces.
Air springs in buses both ensure high driving comfort for passengers and keep the vehicle height at the same and desired level during travel. Additionally, air suspension springs allow the bus to be tilted and lowered, allowing passengers to get on and off the bus with ease. Generally, two air springs need to be installed.
PHOENIX Rubber Air Bellow
| Phoenix No. | Phoenix No. | Phoenix No. |
| 1E06 | 1E06-a | 1E21 |
| 1E25 | 1E32 | 1F21A |
| 1E26-1 | 1F21D | 1F25 |
| 1F21 | 1F32A | 1F26 |
| 1F26C | 1F32 | 1E18 |
| 1F14 | 1F16 | 1F20A |
| 2E18A | 2E23 | 1F21C5 |
| 2E18B | 2E23A | 1F21A |
| 1E21C | 1E10 | 1F20B |
| 1F20B | 2G20A |

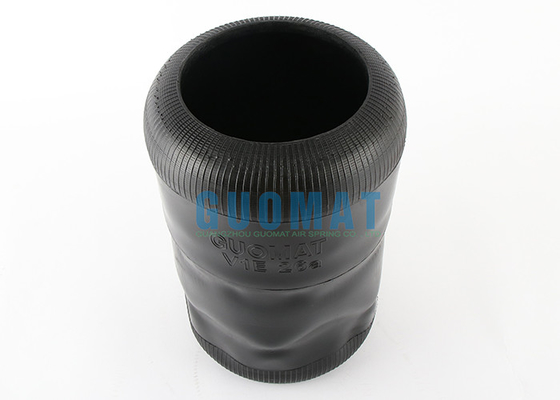

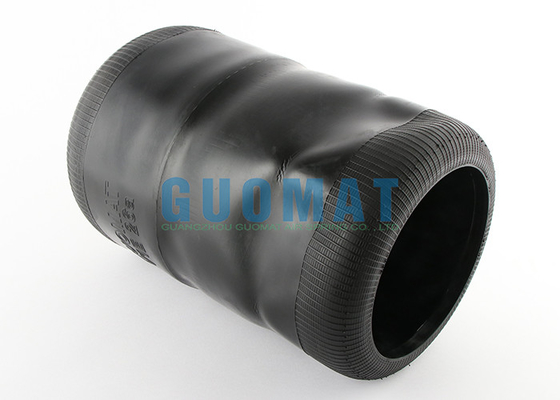

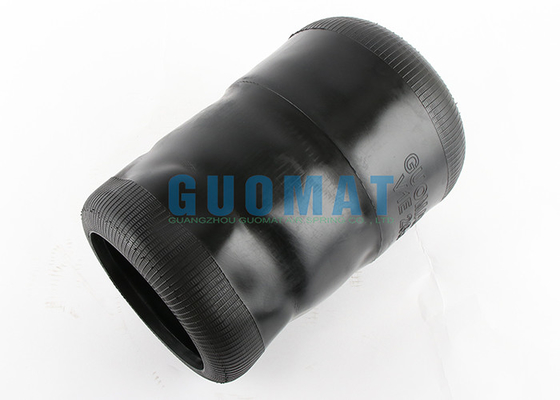

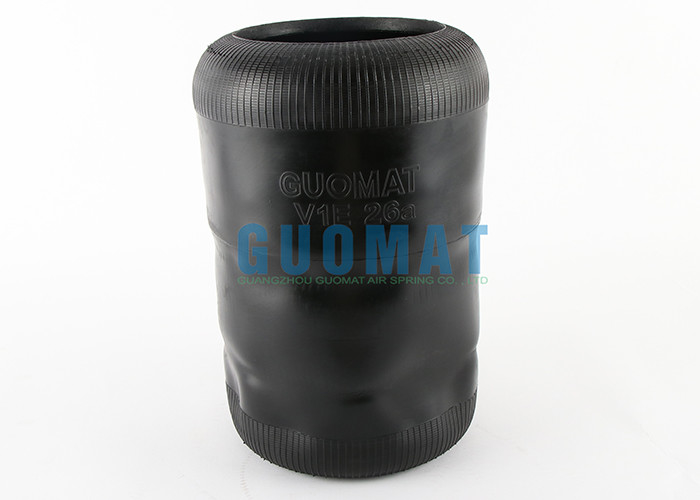

The Real Pictures
