| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2S12017F |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $69.9-99.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Bellow+Aluminum Alloy | Warranty: | 1 Year Warranty |
|---|---|---|---|
| Quality: | 100 % Tested | Applicable Vehicle: | Passenger Car/Truck/Truck/RV |
| Spring Type: | Convoluted Type Air Spring | Sample: | Available |
| Internal Pressure: | ≥2.0Mpa | Flange: | With Flange |
| High Light: | Double Convoluted Suspension Air Spring,2S12017F Suspension Air Spring,Suspension Air Spring For Modified Car |
||

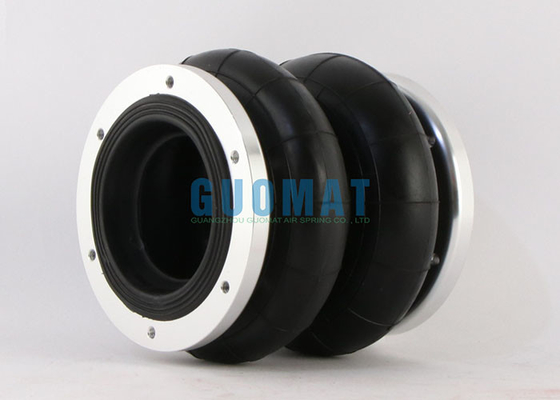

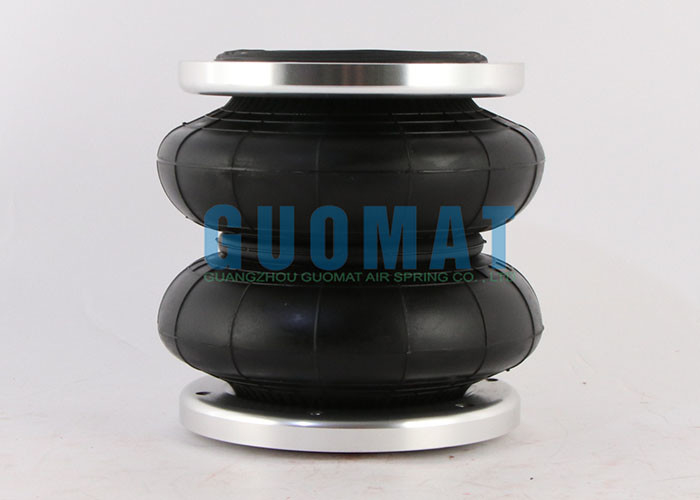

2S12017F Double Convoluted Suspension Air Spring 6X1/4'' Blind Nuts For Modified Car Reduce Vibration
Product Description
|
Type |
Suspension Air Spring |
|
Height |
178mm |
|
Top Diameter |
Ø157mm |
|
Blind Nuts on Top |
6X1/4'' |
|
Distance between Blind Nuts on Top |
Ø137.5mm |
|
Bottom Diameter |
Ø157mm |
|
Blind Nuts on Bottom |
6X1/4'' |
|
Distance between Blind Nuts on Bottom |
6X1/4'' |
|
Rubber Bellows Diameter |
Ø176mm |
|
The Thickness of the Flange |
15mm |
Model Number: 2S12017F
Warranty: 12 Months
Color: Black
Main Material: Rubber
Place of Origin: Guangzhou,China
Certification: ISO/TS16949:2009
Packing: Neutral Packing
Application: Auto Suspension
Skills Requirement
1. The peel test requirement of the product is ≥25KG/F
2. The bench life of the air spring is more than 3 million times
3. The airtight performance is 24 hours air pressure drop <0.02Mpa
4. The blasting internal pressure of the product shall not be lower than 2.0Mpa
5. The telescopic test and appearance should comply with GB/T 13061-91
Double Convoluted Contitech Air Suspension Spring
|
CONTITECH |
GOODYEAR |
FIRESTONE |
|
FD 110-15 |
2B7-840 |
W01-M58-6400 |
|
FD 70-13 |
2B6-835 |
W01-M58-6105 |
|
FD 530-35 |
|
W01-M58-6107 |
|
FD 530-35 544 |
2B14-358 |
W01-358-7782 |
|
FD 530-35 543 |
2B14-476 |
W01-358-6799 |
|
FD 530-30 |
2B14-468 |
W01-M58-6377 |
|
FD 530-30 532 |
2B14-462 |
W01-358-6805 |
|
FD 530-30 518 |
2B15-375 |
W01-358-6800 |
|
FD 530-30 451 |
2B14-365 |
W01-358-6801 |
|
FD 530-30 449 |
2B14-366 |
W01-358-6803 |
|
FD 530-22 |
2B14-467 |
W01-M58-6114 |
|
FD 530-22 345 |
2B14-367 |
W01-358-7133 |
|
FD 330-22 |
|
W01-M58-6381 |
|
FD 200-25 |
2B9-273 |
W01-M58-6194 |
|
FD 200-25 454 |
2B9-266 |
W01-358-6944 |
|
FD 200-19 320 |
2B9-200 |
W01-358-6910 |
|
FD 200-20 |
2B8-850 |
W01-M58-6353 |
|
FD 120-17 |
2B8-5252 |
