| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 3S70-13F |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $79.9-99.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber | Warranty: | 1 Year Warranty |
|---|---|---|---|
| Quality: | 100 % Tested | Flange Material: | Aluminum Alloy |
| Product: | Air Bag Suspension | Availability: | Many In Stock |
| Convolutions: | 3 | Feature: | Easy To Install |
| High Light: | Suspension Air Spring 206mm Height,3S70-13F Suspension Air Spring,Triple Convolutions Air Lift Bag |
||
3S70-13F Suspension Rubber Modified Air Spring 206mm Height Triple Convolutions Air Lift Bag
Product Description
Spring Type: Modified Air Spring,Suspension Air Spring
Model No.: 3S70-13F
Warranty: 1 Year
Place of Origin: Guangzhou,China
Main Material: Natural Rubber
Packing: Neutral Packing
MOQ: High-Quality
Fitting Position: Auto/Truck Suspension
Shipment: By air, By sea,By express
Payment: PayPal,TT,West union,L/C
Flange: With Open Flange
Flange Diameter: Ø134mm
The Thickness of the Flange: Ø15mm
Threaded Hole: 6X1/4''
Distance Between Threaded Holes: 114.5mm
Rubber Bellow Diameter: Ø144.5mm
Height: 206mm
3S70-13F Suspension Air Spring Features
1. 100% air tightness test
2. Made of high quality rubber and durable material
3. Product surface corrosion resistance
4. Constructed under strict quality control standards
5. Easy installation
6. Installed on the car suspension to improve comfort
7. Reduce vibration
8. Test more than 3 million times
Instructions for Using Rubber Air Spring
Warning: Do not inflate the air spring when it is not installed, unless the product is firmly installed in a suitable structure, the maximum pressure is 7 pressures, otherwise there is a risk of product damage or personal injury
About Store
Air springs should be placed indoors at room temperature, in a cool and dry place
The air spring is made of high-quality spring material, and its good dynamic performance ensures that the air spring is maintenance-free and has a long service life.
Triple Convoluted Suspension Air Spring For Modified Cars
|
Model No. |
Convolutions |
Height(mm) |
Diameter(mm) |
Cross Ref. |
|
3S70-13 |
3 |
213 |
145 |
|
|
3S2200 |
3 |
182 |
100 |
|
|
3S120-17 |
3 |
254 |
177 |
|
|
3S2400 |
3 |
172 |
127 |
|
|
1S142P01 |
3 |
146 |
140 |
|
|
1S107 |
3 |
150 |
90 |
|
|
1S9000 |
3 |
235 |
|
W217609000 |
|
1S7002 |
|
190 |
94 |
|
About us
We always focus on the development of automotive components, and provide you with quality products and competitive prices.
If you are interested in our products, we are pleased to offer you our best quotation. If you have any question, please do let me know
We are looking forward to establishing business with you.

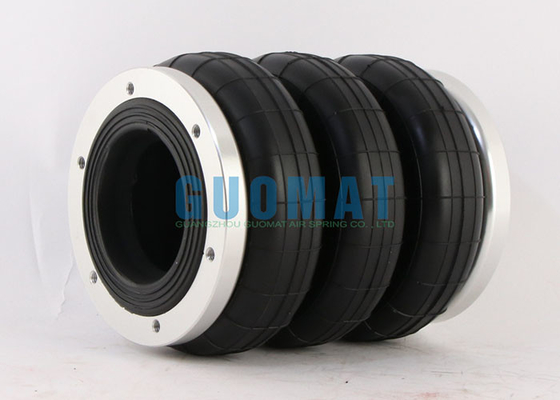

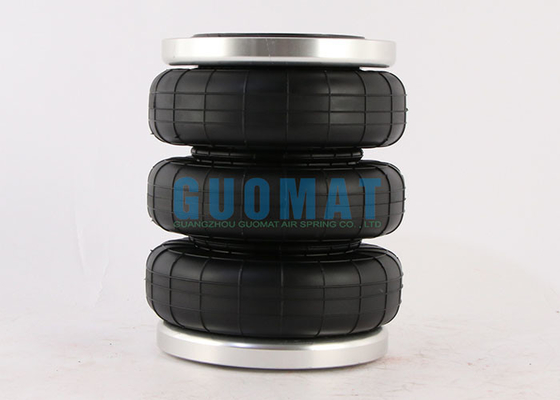

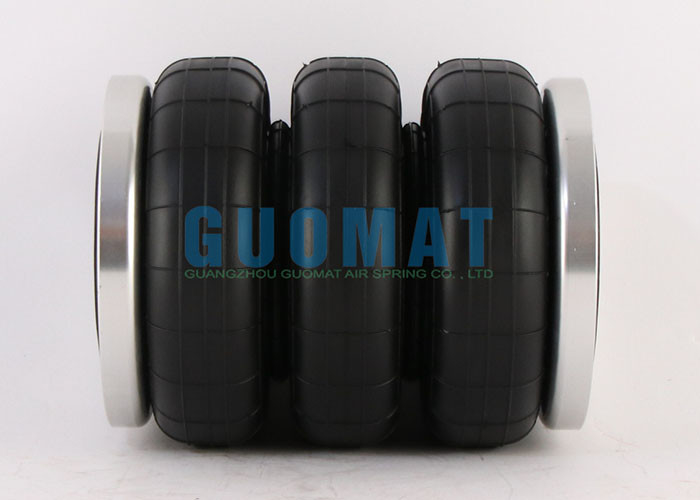

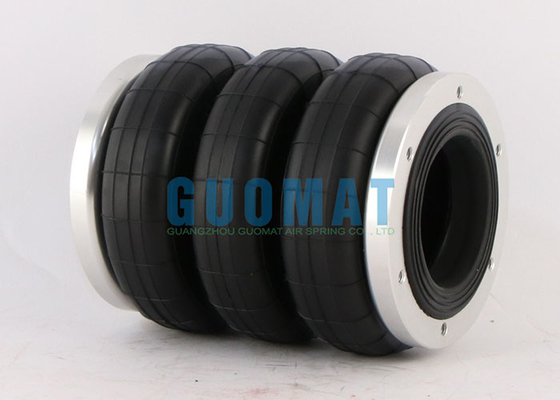

The Real Pictures of 3S70-13F Suspension Air Spring Bag
