| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1T9204 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $79.9-99.9/pc |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Product Name: | Air Spring Assembly | Spring Material: | Rubber+Steel |
|---|---|---|---|
| Warranty: | 1 Year | Car Model: | For Truck/Trailer |
| Type Of Goods: | Air Spring/Air Bags/Air Ballon | Flexmember Number: | 1T19L-5 |
| Firestone: | W013589204 | Other Name: | Firestone Rolling Lobe Air Spring |
| High Light: | Drive Axle Firestone Air Spring,Rubber Material Firestone Air Spring,W013589204 Firestone Air Spring |
||

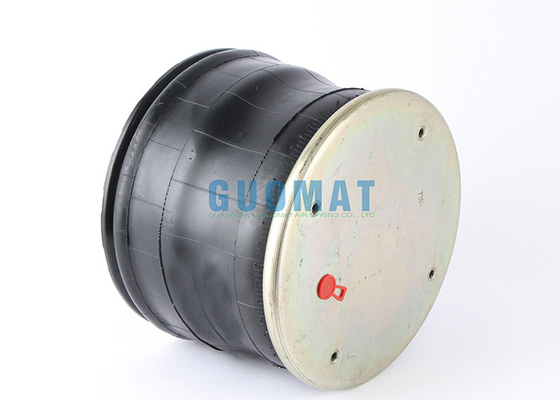

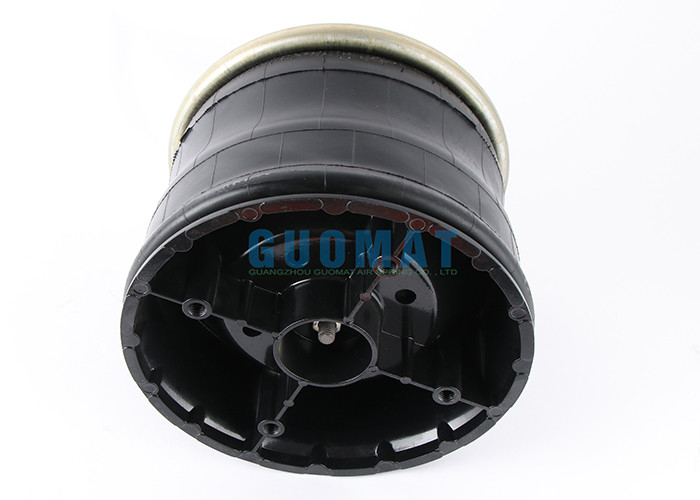

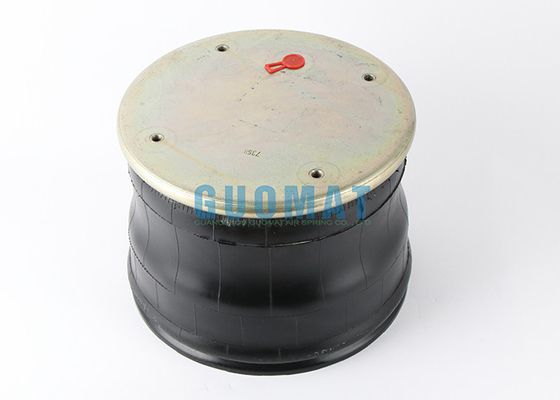

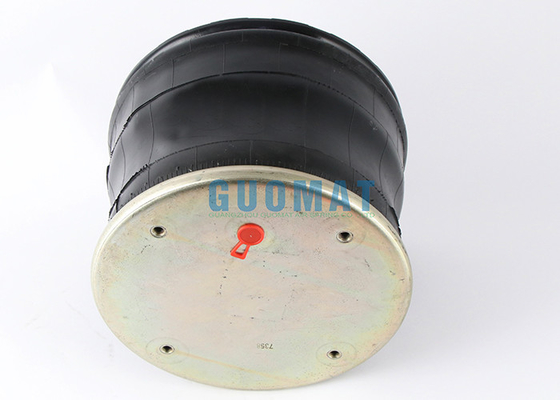

Drive Axle Air Spring W01-358-9204 Firestone Truck Air Suspension Bag 1T19L-5 For Ravens Trailer
Product Description
Item: Firestone Rolling Lobe Air Spring
Part Number: 1T9204
Material: Rubber+Aluminum Alloy
Warranty: 1 Year
Weight: 9.1KG
Piston Material: Aluminum
Packing Size: 32.5*32.5*39(cm)
Firestone Number: W013589204
Firestone Number: W01-358-9204
Firestone Number: W01 358 9204
Firestone Number: WO13589204
Firestone Number: WO1-358-9204
Firestone Number: WO1 358 9204
Firestone Bellows Number: 1T19L-5
Firestone Bellows Number: 1T19L 5
Replaces: Ravens Trailer
W01-358-9204 Firestone Air Spring Techinical Data
Top Cover Plate Diameter: 11.31in
Air Inlet: 1/4NPT
Threaded Hole: 3/8-16
Threaded Hole Center Distance: 6.25in
Threaded Hole and Air Inlet Center Distance: 3.12in
Piston Bottom Diameter: 11.81in
Blind Nut: 1/2-13
Blind Nut Center Distance: 7.88in
Rubber Bellows Diameter: 10.62in
Max.Height: 17 in
Min.Height: 5.5in
1T19L-5 Rubber Bellows Number Firestone Truck Air Spring
|
Bellows No. |
Firestone No. |
Piston order No. |
Weight(lbs.) |
Replace |
|
1T16L-5 |
W01-358-9204 |
WC1-358-0631 |
21.4 |
Ravens Trailer |
|
1T16L-5 |
W01-358-9215 |
WC1-358-0631 |
21.7 |
Hendrickson Trailer S3648 |
|
1T16L-5 |
W01-358-9216 |
WC1-358-9450 |
22.5 |
City Welding |
|
1T16L-5 |
W01-358-9218 |
WC1-358-0631 |
21.4 |
Ridell 1003589218C Holland(Neway) 90557209 Suspension Inc. Watson&Chalin AS-0073 Rowe RV ASC1000/ASC1001/ASC1002/ASC1003 Spartan |
|
1T16L-5 |
W01-358-9277 |
WC1-358-9450 |
21.8 |
Ridewell 1003589277C Reyco 24556-01 |
Composition of Truck Air Springs
|
Service Assembly |
Stud |
|
Air Entrance |
|
|
Tapped Hole |
|
|
Bellows |
|
|
Bottom |
Piston |
|
Washer |
|
|
Bolt |
How to Analyze Air Spring Damage
Loose Girdle Hoop
| Appearance or Condition | Rubber bellows distorted and girdle hoop torn loose |
| Possible Causes | Running at extended positions with low air pressure |
Bottoming Out
|
Appearance or Condition |
Bead plate concave |
|
Internal bumper lose |
|
|
Hole in girdle hoop area |
|
|
Hole in bead plate junction area |
|
|
Leaking around blind nuts |
|
|
Possible Causes |
Broken or defective shock absorber |
|
Defective leveling valve |
|
|
Overloaded vehicle |
|
|
Pressure regulator set too low |
|
|
Wrong air spring(too tall) |
