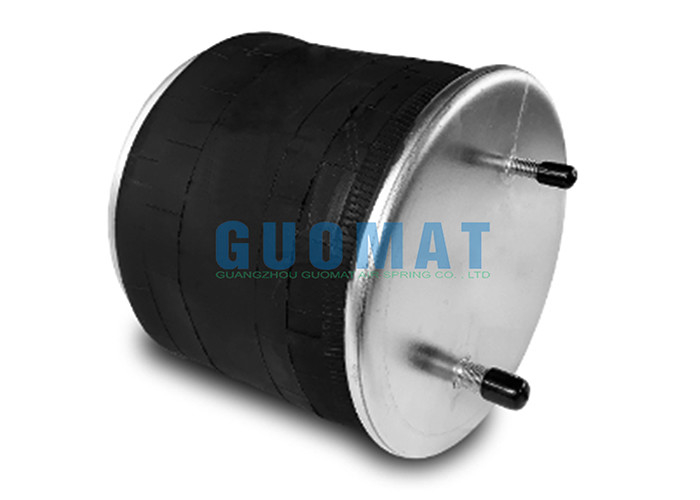

Firestone W01-358-8723 Goodyear Truck Air Suspension Assembly 1R13-097

Name: Firestone W01-358-8723 Goodyear Truck Air Suspension Assembly 1R13-097
Brand: GUOMAT
SKU: 1T8723
Price: 79.9 USD
Availability: InStock
Rating: 4.8 (153 reviews)

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1T8723

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$79.9-99.9/pc
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Air Spring Assembly	Spring Material:	Rubber+Steel
Warranty:	1 Year	Car Model:	For Truck/Trailer
Weight:	8KG	Application:	Truck Air Suspension
OEM Number:	W013588723	Other OEM Number:	1R13-097
High Light:	Goodyear Truck Air Suspension Assembly , Rubber Air Spring Assembly , Goodyear Truck Air Spring Assembly

Firestone Replacement Air Spring W01-358-8723 Goodyear Truck Air Suspension Assembly 1R13-097

Product Description
Item: Firestone Rolling Lobe Air Spring

Brand: GUOMAT/Neutral

Part Number: 1T8723

Material: Rubber+Aluminum Alloy

Warranty: 1 Year

Weight: 8.0KG

Car Model: Truck / Trailer

Type: Auto Parts

Manufacturer Part Number

Firestone Rolling Lobe Air Spring W013588723

Firestone Rolling Lobe Air Spring W01 358 8723

Firestone Rolling Lobe Air Spring W01-358-8723

Firestone Rolling Lobe Air Spring WO13588723

Firestone Rolling Lobe Air Spring WO1 358 8723

Firestone Rolling Lobe Air Spring WO1-358-8723

Contitech Rolling Lobe Air Spring 10 10-15 S 962

Goodyear Rolling Lobe Air Spring 1R13-097

Goodyear Rolling Lobe Air Spring 1R 13-097

Goodyear Rolling Lobe Air Spring 1R13 097

Goodyear Rolling Lobe Air Spring 1R 13 097

Continental ContiTech Order Number: 67600

Automann Number: 1DK25B-8723

Firestone Style Number: 1T17B-5

FleetPride Number: AS8723

Goodyear Number: 1R13-087

Goodyear Flex Number: 566263081

Goodyear Flex Number: 566 26 3 081

Goodyear Flex Number: 566-26-3-081

Hendrickson Number: 698132

Ridewell Number: 1001R13-087

Ridewell Number: 1001R13-097

Triangle Number: AS-8962

TRP Number: AS87230

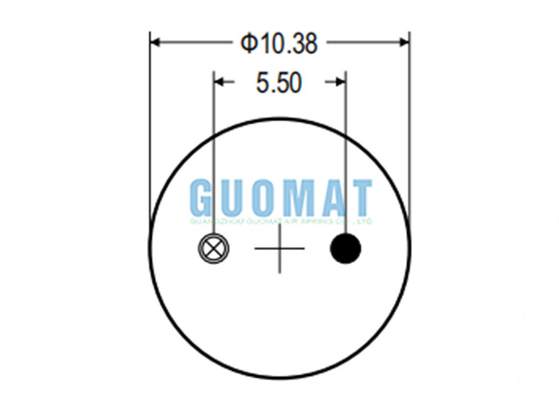

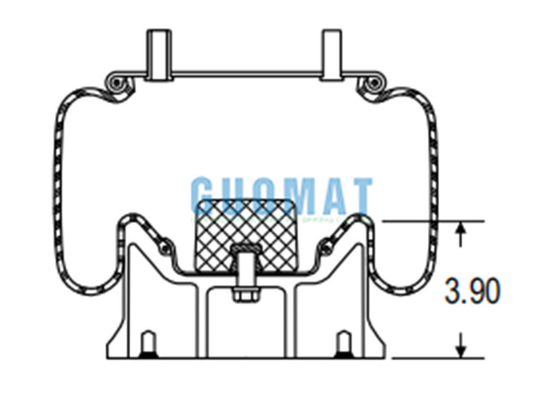

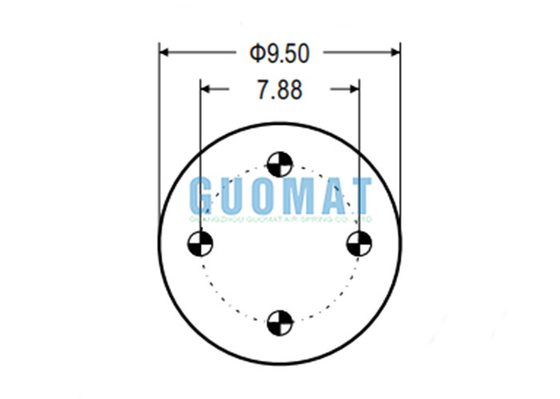

GUOMAT 1T8723 Truck Air Spring Technical Data

Extended Height:17.80 inches
Compressed Height: 5.60 inches
Top Plate Width:10.38 inches
Bottom Plate Width: 9.50 inches
Piston Width:9.50 inches
Piston Height: 3.90 inches

Replacing a Truck Suspension Air Spring

Turn off the air suspension switch.
Raise and support the vehicle.
Deflate the air spring.
Remove any bolts or fasteners securing the air spring to the vehicle.
Remove the air spring from the vehicle.
Install the new air spring.
Secure the air spring with bolts or fasteners.
Inflate the new air spring.
Lower the vehicle.
Turn on the air suspension switch and ensure that the new air spring functions properly.

It is important to note that the specific steps for replacing an air spring can vary depending on the make and model of the truck, as well as the type of suspension system being used.

1T17B-5 Type Firestone Truck Air Bags

GUOMAT No.	Firestone Type	Firestone Number	Cross Reference
1T8740	1T17B-5	W01-358-8740	Contitech 10 10-15 S 773 Reyco 23433-01
1T8752	1T17B-5	W01-358-8752	Contitech 10 10-15 S 518 Watson&Chalin AS-0084 Ridewell 1003588752C Suspension Inc. 201642
1T8753	1T17B-5	W01-358-8753	Contitech 10 10-15 S 713 Watson&Chalin AS-0098 Ridewell 1003588753C
1T8755	1T17B-5	W01-358-8755	Contitech 10 10-15 S 522 Goodyear 1R13-124 Hendrickson Trailer S22045(HK190T) Prototype C21623
1T8456	1T17B-5	W01-358-8756 W01-358-8710	Contitech 10 10-15 S 711 Hendrickson Trailer S22046(HK230) Prototype C21624
1T8782	1T17B-5	W01-358-8782	Contitech 10 10-15 S 871 Goodyear 1R13-109 Ridewell 1001R13109G
