| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B2500 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Stock: | In Stock | Product Name: | Air Suspension Spring |
|---|---|---|---|
| Warranty: | 12 Months | Material: | Rubber + Steel |
| MOQ: | 10 Pieces | Application: | Modified Car Suspension |
| Weight: | 1.9kg | Special Features: | Shock Absorption |
| High Light: | 2B2500 Suspension Air Spring,Suspension Air Spring 212mm Height,212mm Height Rubber Air Spring |
||
2B2500 Suspension Air Spring 212mm Height Standard Double Convoluted Rubber Air Bag
Product Description
GUOMAT 2B2500 This type of suspension air spring is suitable for the vehicle suspension that needs to be modified. It has excellent shock absorption ability and can support the weight of the vehicle to prevent the vehicle from sagging. Additionally, air springs can be used to adjust the vehicle's ride height, which can provide additional ground clearance for off-road use or improve vehicle aerodynamics for racing applications.
Item Name: Air Suspension Spring
Brand: GUOMAT/Neutral
Model Number: 2B2500
Type: Air Suspension Assembly
Material: Rubber and Steel
Warranty: 1 Year
MOQ: 1 Piece
Color: Black
Origin: Mainland China
Size: Manufactured to Standard Specifications

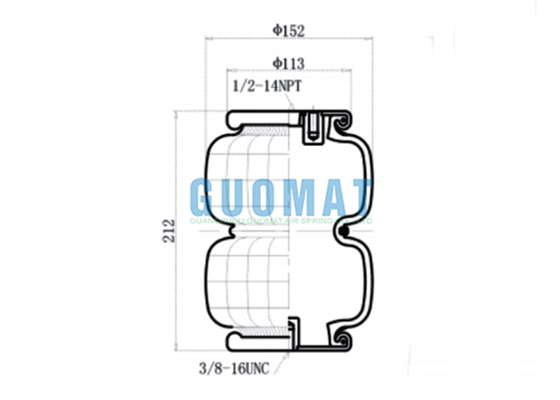

GUOMAT 2B2500 Suspension Air Spring Technical Data
Spring Weight: 1.9KG
Cover Plate Diameter: 113mm
Fastener: 3/8-16UNC
The Rubber Bellows Diamater: 152mm
Design Height: 212mm
Max.Height: 240mm
Min.Height: 110mm
Working Stroke: 130mm
Loading Cap.at 3.0Bar: 1.48kN
Loading Cap.at 7.0Bar: 6.23kN
►Please make sure that the suspension air spring is suitable for your vehicle.

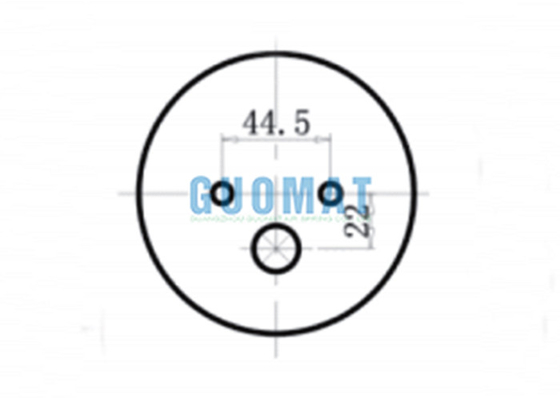

►It is important to compare the hole diameter and hole distance of the air spring when purchasing the tort.
GUOMAT Also Offers other Air Springs for Modified Car Suspensions
GUOMAT No. | Type | Design Height | Rubber Bellows | Fastener |
2B2300 | Doubel Convoluted Type | 137mm | 125mm | 3/8″ – 16UNC |
2B2200 | Doubel Convoluted Type | 124mm | 100mm | 3/8″ – 16UNC |
3B2300 | Triple Convoluted Type | 187mm | 125mm | 3/8″ – 16UNC |
3B2200 | Triple Convoluted Type | 180mm | 100 | 3/8″ – 16UNC |
3B2400 | Triple Convoluted Type | 213mm | 144.5mm | 3/8″ – 16UNC |
How to Choose the Right Modified Car Suspension Air Spring
First, you should research the different types of air spring suspension systems available and determine which one is best suited for your needs.
Next, you should consider the specific air spring kits that are available for your make and model of vehicle. Some kits may be more compatible or easier to install on certain vehicles, so it's important to choose one that is designed specifically for your car.
You should also consider the quality and durability of the air spring kit, as this can have a big impact on the overall performance and longevity of your suspension system. Kits from reputable brands that use high-quality materials are typically a good choice.

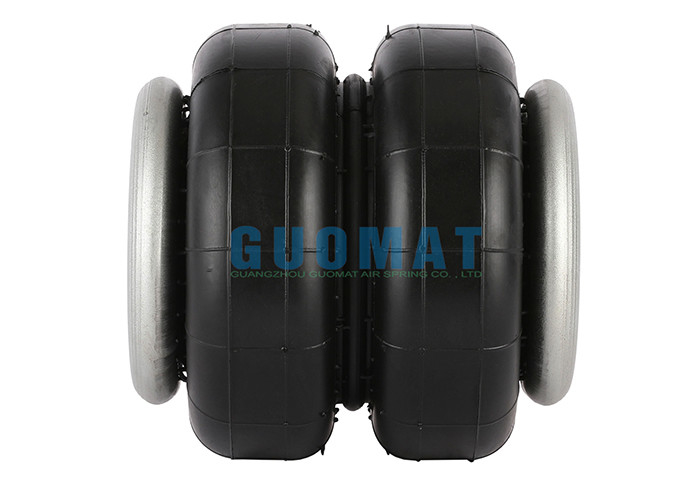

2B2500 Double Convoluted Air Suspension Spring Real Pictures
