W01-358-9034 Firestone Truck Air Springs 3/4 NPT Blind Nuts Pneumatic Bellows Actuators

Name: W01-358-9034 Firestone Truck Air Springs 3/4 NPT Blind Nuts Pneumatic Bellows Actuators
Brand: GUOMAT
SKU: 1T9034
Price: 69.9 USD
Availability: InStock
Rating: 4.5 (170 reviews)

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1T9034

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$69.9-99.9/pc
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Spring Material:	Rubber+Steel	Warranty:	1 Year
Quality:	100% Tested	Packing:	Neutral Packing Or Customized Packing
Firestone:	W01-358-9034	Style:	1T15M-0
Max. Height:	330mm	Application:	For Truck Air Suspension
High Light:	W01-358-9034 Truck Air Springs , Pneumatic Bellows Actuators Truck Air Springs

W01-358-9034 Firestone Truck Air Spring 3/4 NPT Blind Nuts Pneumatic Bellows Actuators

Product Description

GUOMAT 1T9034 truck air spring is manufactured with reference to the specifications of Firestone W01-358-9034, which can completely replace the original air spring, providing a comfortable and stable driving environment for your truck.

OEM Number

Reference Firestone Part Number 9034

Reference Firestone Part Number W013589034

Reference Firestone Part Number W01-358-9034

Reference Firestone Part Number W01 358 9034

Reference Firestone Part Number WO13589034

Reference Firestone Part Number WO1-358-9034

Reference Firestone Part Number WO1 358 9034

Reference Firestone Bellows Number 1T15M-0

Reference Firestone Bellows Number 1T15M 0

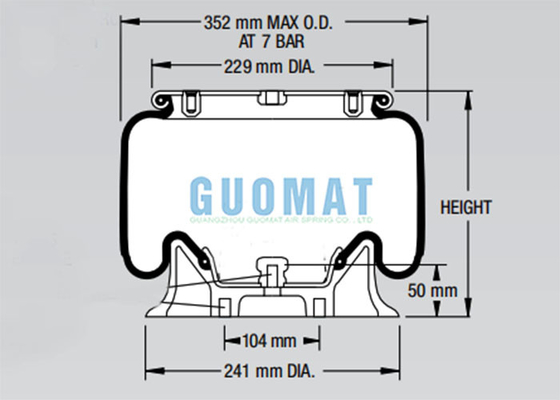

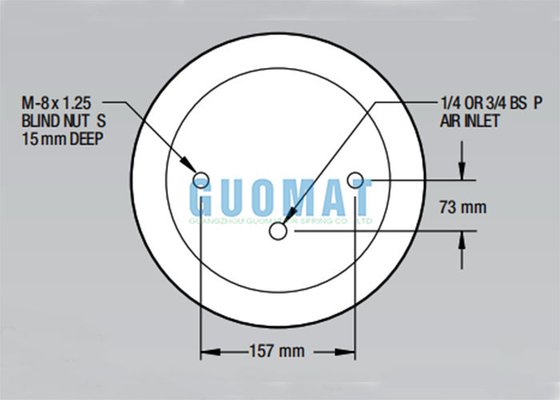

W01-358-9034 Truck Air Spring Technical Data

Top Cover Plate Diamater: 229mm

Air Inlet: 1/4 or 3/4 BSP

Blind Nuts: M8X1.25

The Distance of Air Inlet and Blind Nut: 73mm

Center Distance between Blind Nuts: 157mm

Maximum Outside Diameter of Rubber Bellows: 352mm (At 7 Bar)

Bumper: Optional

Base Width: 241mm

MAX.Height: 330mm

MIN.Height: 109mm

1T15M-0 Style - Firestone Truck Air Suspension Spring

Firestone Air Spring Assembly Number: W01-358-9030 , Blind Nuts , 1/4 NPT (Two Ply Bellows)

Firestone Air Spring Assembly Number: W01-358-9031 , Blind Nuts , 1/4 NPT , Rubber Bumper (Two Ply Bellows)

Firestone Air Spring Assembly Number: W01-358-9036 , Blind Nuts , 3/4NPT , Rubber Bumper (Two Ply Bellows)

Firestone Air Spring Assembly Number: W01-358-9038 , Countersunk Steel Bead Ring , 40mm Bolts , Nuts , Washers (Two Ply Bellows)

What are the Reasons for Using Air Springs

Improved Stability: Air springs can provide higher spring rates, which can improve vehicle stability, especially in crosswinds and emergency maneuvers.
Level Suspension: Air springs help keep the rear suspension level when carrying heavy loads or towing a trailer, improving handling and safety.
Increased load carrying capacity: By providing additional support, air springs can increase the maximum load carrying capacity of a vehicle.
Comfort: Compared with metal springs, air springs can provide a smoother ride, reduce fatigue and improve passenger comfort.
Eliminates bottoming out: Air springs also help prevent vehicle bottoming out under heavy loads or rough conditions.
