Place of Origin: | GuangDong, China |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949:2009 |
Model Number: | 1T9031 |
Minimum Order Quantity: | 6pcs |
---|---|
Price: | $69.9-99.9/pc |
Packaging Details: | strong carton box or as customers need |
Delivery Time: | 2-8 work days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 1000pcs/week |
Spring Material: | Rubber+Steel | Warranty: | 1 Year |
---|---|---|---|
Application: | Truck/Trailer | Function: | Reduce Vibration, Lift |
Spring Style: | 1T15M-0 | Peerless: | 0550-00051 |
Weight: | 13.0 Lbs. | Other Name: | Firestone Truck Air Springs |
High Light: | Firestone Rolling Lobe Air Spring,W01-358-9031 Lobe Air Spring,Firestone Truck Air Springs |
W01-358-9031 Firestone Rolling Lobe Air Spring Bellow No.1T15M-0 Truck Air Suspension With Piston
Product Description
Item |
Truck Air Springs |
GUOMAT NO. |
1T9031 |
Warranty |
1 Year |
Material |
Rubber+Steel |
MOQ |
1 pc |
Package |
Carton |
OEM |
Firestone W01-358-9031 |
Replaces |
0550-00051 |
GUOMAT 1T9031 Air Spring Cross Reference
Firestone Bellow Number: 1T15M-0
Firestone Bellow Number: 1T15M 0
Firestone OEM Number: W01-358-9031
Firestone OEM Number: W01 358 9031
Firestone OEM Number: W013589031
Firestone OEM Number: WO1-358-9031
Firestone OEM Number: WO1 358 9031
Firestone OEM Number: WO13589031
Airspring Supplier |
Supplier Number |
Airspring Supplier |
Supplier Number |
Contitech |
91010P339 |
Goodyear |
1R12115 |
Goodyear |
1R12-115 |
Goodyear |
566243061 |
Goodyear |
566-24-3-061 |
Goodyear |
1R12350 |
Goodyear |
1R12-350 |
Goodyear |
566243067 |
Goodyear |
566-24-3-067 |
Triangle |
6360 |
Triangle |
8339 |
Flxible |
63792 |
Peerless |
55000051 |
Peerless |
0550-00051 |
Ridewell |
1003589031C |
Firestone Trimmed |
w013589031 |
Firestone Truck AirBags Technical Data

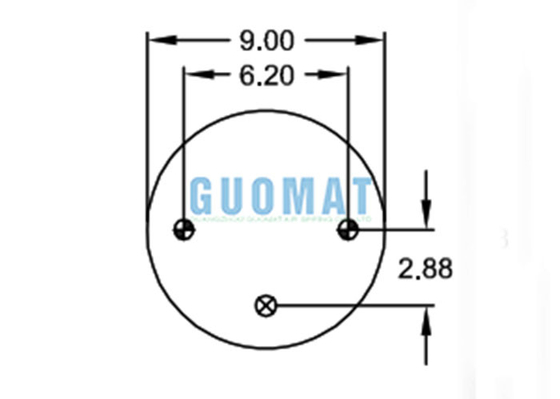

BEAD PLATE TOP DATA
Top Bead Plate Diameter: 9.00 in
Air Inlet: 1/4NPT
Center Distance Between Threaded Holes: 6.20 in
Distance between Threaded Hole and Air Inlet: 2.88 in

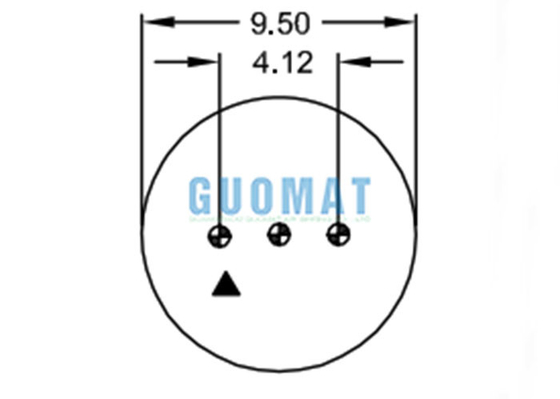

PISTON BOTTOM DATA
Diameter of Bottom Piston: 9.50 in
Number of Threaded Hole: 3
Piston Height: 3.00 in

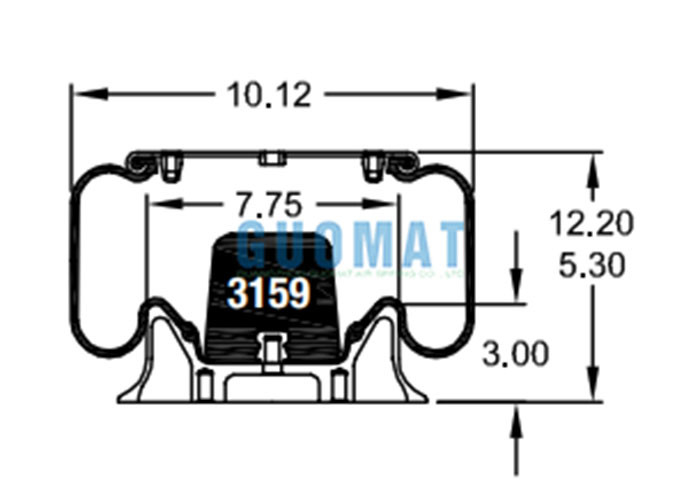

RUBBER BELLOW
Rubber Bellow Diamater: 10.12 in
Max.Height: 12.20 in
Min.Height: 5.30 in
Contitech Assembly Number to Firestone
Contitech Air Spring 9 10-10 P 311 |
Firestone Rolling Lobe Airbag W013589039 |
Contitech Air Spring 9 10-10 P 328 |
Firestone Rolling Lobe Airbag W013589033 |
Contitech Air Spring 9 10-10 P 331 |
Firestone Rolling Lobe Airbag W013589077 |
Contitech Air Spring 9 10-10 P 339 |
Firestone Rolling Lobe Airbag W013589031 |
Contitech Air Spring 9 10-10 P 397 |
Firestone Rolling Lobe Airbag W013589332 |
Contitech Air Spring 9 10-10 P 398 |
Firestone Rolling Lobe Airbag W013589308 |
Contitech Air Spring 9 10-10 P 399 |
Firestone Rolling Lobe Airbag W013589029 |
Contitech Air Spring 9 10-10 P 400 |
Firestone Rolling Lobe Airbag W013588986 |
Contitech Air Spring 9 10-10 P 465 |
Firestone Rolling Lobe Airbag W013589335 |
Contitech Air Spring 9 10-10 P 471 |
Firestone Rolling Lobe Airbag W013589307 |
Contitech Air Spring 9 10-10 P 473 |
Firestone Rolling Lobe Airbag W013588963 |
Contitech Air Spring 9 10-10 P 480 |
Firestone Rolling Lobe Airbag W013588964 |
Contitech Air Spring 9 10-10 P 482 |
Firestone Rolling Lobe Airbag W013589334 |
Contitech Air Spring 9 10-10 P 503 |
Firestone Rolling Lobe Airbag W013588976 |
Contitech Air Spring 9 10-10 P 542 |
Firestone Rolling Lobe Airbag W013588961 |
The Package Picture of Truck Air Suspension Spring
