| Place of Origin: | GuangDong, China |
| Brand Name: | CONTITECH |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 4984 N6 P02 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $159.9-199.9/pc |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Sample: | Available | Warranty: | 1 Year |
|---|---|---|---|
| Operation: | Gas-Filled | Style: | Rolling Lobe Air Bags |
| Brand: | CONTITECH | Package: | Cartons |
| Color: | Black | Application: | For Truck Air Suspension |
| High Light: | Contitech Rubber Air Springs,4984 N6 P02 Rubber Air Springs |
||

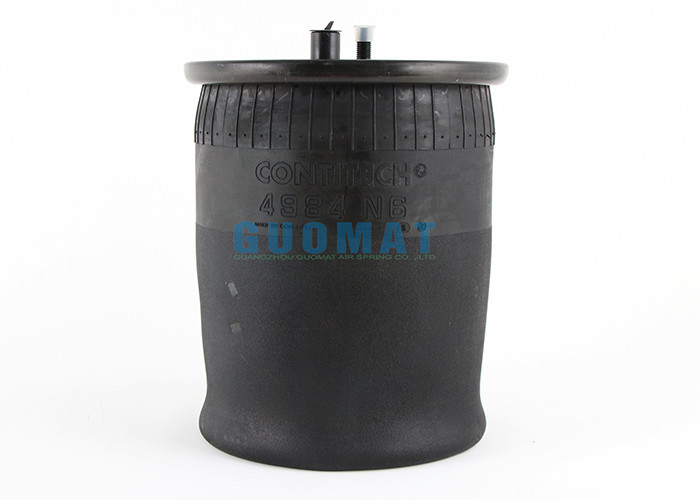

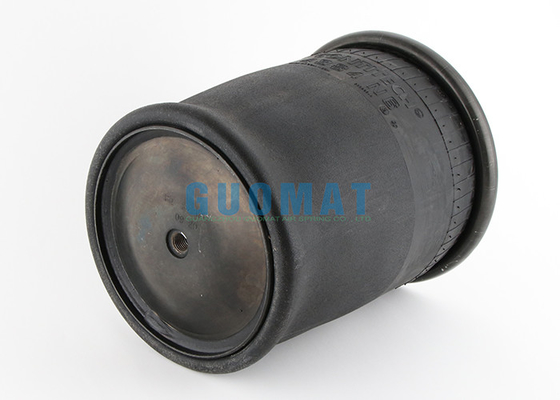

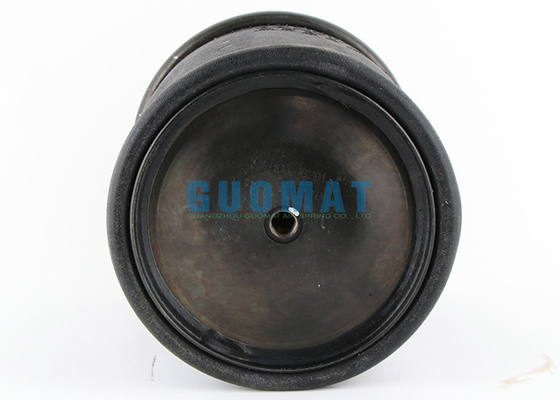

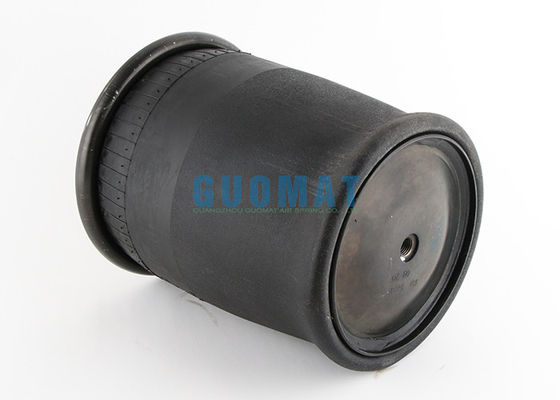

Original Contitech 4984 N6 P02 Truck Rubber Air Spring Trailer Airbag Suspension Components
Product Details
Contitech Truck Air Spring
ContiTech is a company that manufactures air springs for commercial trucks. They offer a range of air spring products to suit different truck models and applications.
Manufacturer: CONTITECH
Manufacturer Part Number: 4984N6P02
Manufacturer Part Number: 4984 N6P02
Manufacturer Part Number: 4984 N6 P02
Application: Truck/Trailer(Axle)
Weight: 10.00KG
Material of Piston: Steel
Truck Air Spring Components
Stud
A permanent part of the bead plate assembly used to attach the air spring to the suspension.
Combination Stud.This provides a dual purpose of mounting the air spring to the suspension and providing an air entrance.
Bead Plate (Top Plate)
Permanently crimped onto the bellows, diaphragm during manufacture.
Bellows
The heart of the airspring. Includes at least four ply, or layers of material - an inner layer, two ply of cord reinforced fabric and an outer layer.
Bumper (Bump Stop)
A solid moulded rubber fail safe device used on many suspension applications. Prevents excessive damage to the vehicle and suspension in the case of sudden air pressure loss.
Piston
The lower section of the airspring made from aluminium, steel or composite material ie. plastic.Provides lower mounting arrangement for the airspring in the form of threaded holes or studs.
Piston Bolt
Attaches the piston to the bellows assembly and in some cases is extended to serve as a means of attaching the airspring to the suspension.
Contitech Other Rubber Air Spring Assembly
|
Model No. |
Order No. |
Weight(9KG) |
Application |
|
644NP21 |
62444 |
7.0 |
EvoBus A6283200425 |
|
644NP02 |
60025 |
6.6KG |
ZF Sachs 0501209514 |
|
644NP04 |
61774 |
8.6KG |
Autosan 1029-900-970 |
|
644NP01 |
60638 |
8.3KG |
AYATS 31001569 IRISBUS 5.010.073.846 |
|
4644NP22 |
74008 |
8.3KG |
EvoBus A6293200025 |
|
4786NP22 |
600325 |
5.6KG |
EvoBus A4443200217 |
|
1924N1P05 |
60254 |
7.4KG |
IRISBUS 5.010.347.891 |
|
4786NP23 |
600326 |
5.6KG |
EvoBus A4443200125 |
|
6600NP01 |
62967 |
5.0KG |
VOL-VO 20573109 VOL-VO 70313718 VOL-VO 1076420 |
|
863NP10 |
70537 |
7.5KG |
DAF 1794420 |
|
836NP11 |
78198 |
9.3KG |
DAF 1794423 |
|
4154NP06 |
67740 |
4.8KG |
French car 7.421.978.506 French car 5.010.600.570 French car 5.010.305.438 VOL-VO 21978510 VOL-VO 20758818 |
|
4185NP21 |
600141 |
10.1KG |
Mercedes A9423203021 |
|
4183NP25 |
600131 |
9.3KG |
Mercedes A9423201321 |
