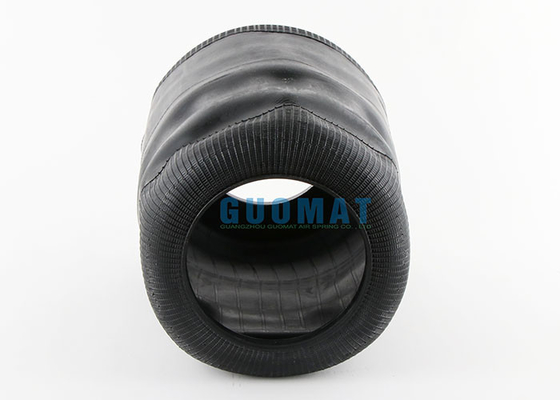

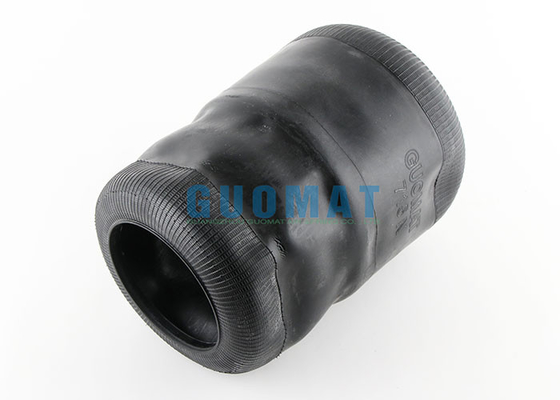

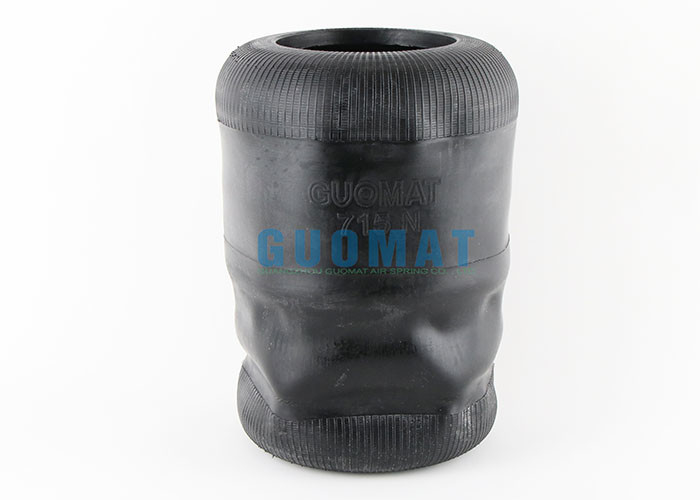

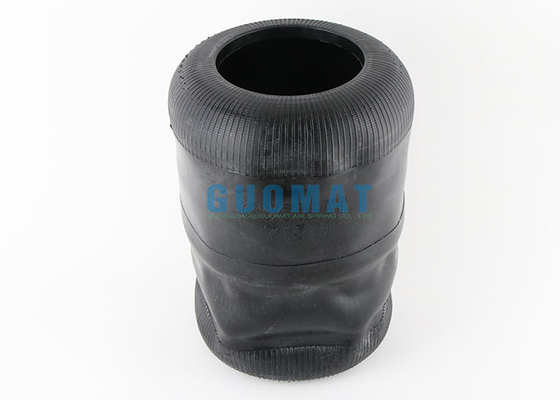

715N Contitech Air Suspension Bellow W01-095-0087 Firestone Rubber Air Shock For Bus Truck Trailer

715N Contitech Air Suspension Bellow W01-095-0087 Firestone Rubber Air Shock For Bus/Truck/Trailer

Product Description

GUOMAT: 715N

Natural Height: 350mm

Rubber Bellow Natural Diameter: 265mm

Nominal Diameter: 150.8mm

Suggestions for Construction (Technical Data)

Weight: 2.0kh

Design height: 275mm

Deflection(Height min): 195mm

Deflection(Height max): 410mm

Working dtroke: 215mm

Measurement d max: 315mm

Space required: 335mm

Loading cap. at 0.3 bar: 1.5kN

Loading cap. at 7.0bar: 35.0kN

Cross Information

CONTITECH 715N / 715 N

FIRESTONE STYLE NUMBER 1R1C335-310

FIRESTONE ORDERNR W01-095-0087 / W01 095 0087 / W010950087

FIRESTONE ORDERNR WO1-095-0087 / WO1 095 0087 / WO10950087

GOODYEAR 8015

PHOENIX 1F25 / 1 F 25

TAURUS B144 / B 144

DUNLOP UK PNP304890101 / PNP 304890101

CF GOMMA 1SC310-16 / 1 SC 310-16

CF GOMMA 93518

OEM Information

DAIMLER CHRYSLER A3633280001 / A 363 328 00 01

IVECO 445.6111

IVECO 4763473

IRIS/RVI 15.000.819.517

DAF 659 561 / 659561

MAGIRUS-DEUTZ 4456111

MERCEDES 3633280001 / 363 328 0001

French car V.I 5000819517

VOL-VO 6885533

MAN 81.43601.0059

MAN 81.43601.0060

MAN 81.43601.0061

MAN 81.43601.0075

MAN 81.43601.0078

MAN 81.43601.0081

MAN 81.43601.0083

MAN 81.43601.0090

MAN 81.43601.0113

MAN 81.43601.0115

MAN 81.43601.0117

Rubber Air Bellow Application

How to install the bus air spring

• Locate the air spring: The air spring is typically located between the axle and the frame of the bus. Before proceeding with the installation, ensure that the air spring is the correct model for your vehicle.
• Remove the old springs: The old spring must be removed to install the air spring. Loosen the nuts and bolts that hold the old springs in place and slowly remove the old spring.
• Prepare the air spring: Before installing the air spring, ensure that it is appropriately inflated to prevent any issues. Instructions for inflating the air spring can be found in the manufacturer's manual.
• Install the air spring: Position the air spring correctly by aligning the holes with the bolts on the vehicle's chassis. Tighten the nuts and bolts securely.
• Test the air spring: Once the air spring is installed, test it to make sure it is functioning correctly. Ensure there are no signs of leakages, and the vehicle's suspension system is working correctly.
