W01-358-5310 Firestone Replacement Air Spring 1T14C-1 Truck Rubber Air Pillow For Hendrickson Trailer S8832

W01-358-5310 Firestone Replacement Air Spring 1T14C-1 Truck Rubber Air Pillow For Hendrickson Trailer S8832

Product Details

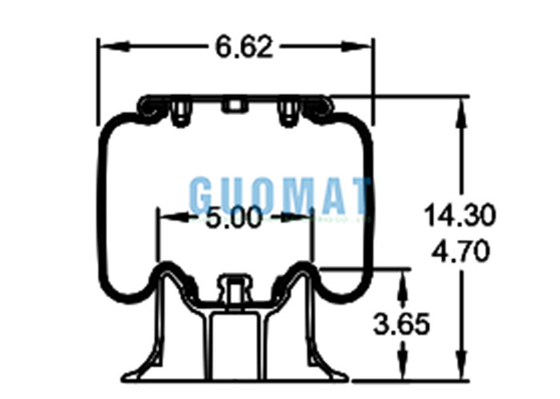

Technical Data: W013585310 Firestone Air Spring
Top plate diameter: 6.31 in
Center distance between threaded holes on top plate: 3.50 in
Distance between threaded hole and air hole on to plate: 1.75 in
Piston Width:3.65 in
Rubber bellow diameter: 6.62 in
Extended height:14.30 inc
Compressed height: 4.70 in

Cross Reference Numbers
Firestone Part Number: W01-358-5310
Firestone Part Number: W01 358 5310
Firestone Part Number: W013585310
Firestone Part Number: WO1-358-5310
Firestone Part Number: WO1 358 5310
Firestone Part Number: WO13585310
Firestone Bellows Number:1T14C-1
American Carrier Number:8003-001
Hendrickson Trailer Number:S-8832
Ridewell Number:1003585310C
Note:Crown Coach, Flxible 6-336-2
UPC: 767555002391
MPN: W013585310

Steps to Install Truck Air Springs

• Determine the proper placement of the air springs. This will depend on the make and model of your truck, as well as the type of air spring kit you have.
• Install the mounting brackets onto the frame and axle of the truck. This may require drilling or welding, depending on the kit.
• Attach the air springs to the mounting brackets.
• Install the air lines and fittings, connecting them to an air compressor and control switch inside the cab of the truck.
• Test the system to ensure it is functioning properly.


Here are some things to pay attention to when installing truck air springs:

• Pay special attention to wiring and hose routing to avoid any damage .
• Pay attention to air-spring load capacities and spring rates .
• Make sure to properly install the air springs to avoid failure.
• Ensure that the air springs are rated properly for the weight of your truck.
• If you're not experienced with installing air bags, it may be best to have a professional do it.

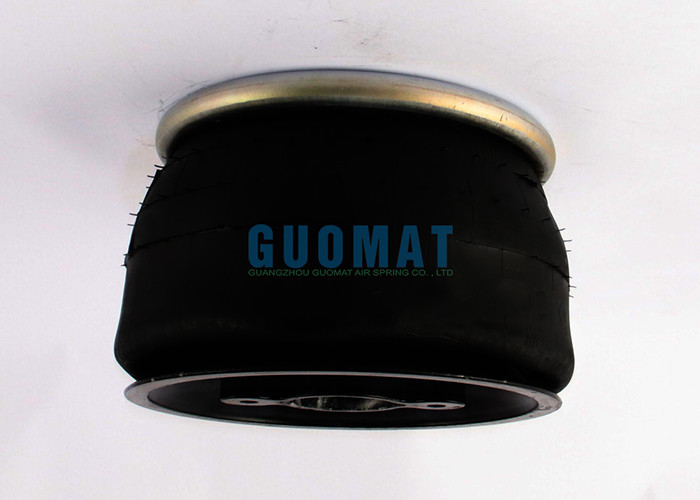

Real Picture Display: GUOMAT 1T5310 Truck Air Spring
