| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1T5311 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $79.9-99.9/pc |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Product Name: | Air Suspension Balloon Spring | Sample: | Available |
|---|---|---|---|
| Warranty: | 1 Year | Material: | Rubber+Steel |
| Cover Plate: | Aluminum Plate | Packing: | Neutral Packing Or Customized |
| OE NO.: | W01-358-5311 | Packing Method: | Carton+ Pallets |
| High Light: | Firestone Steering Axle Air Springs,W013585311 Steering Axle Air Springs |
||

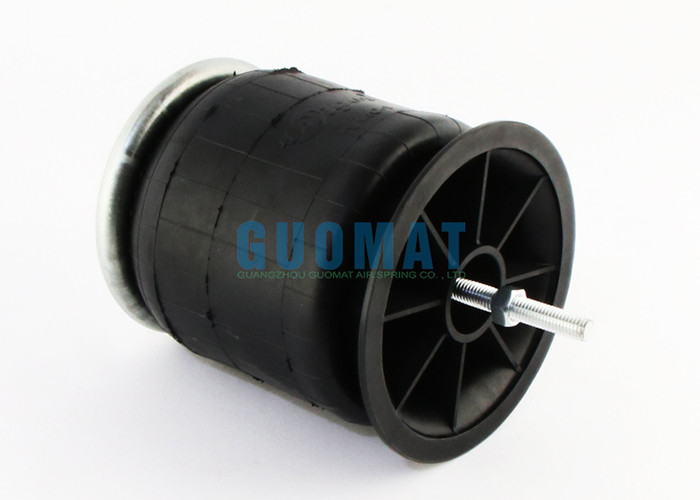

Truck Air Suspension Parts W013585311 Firestone Steering Axle Air Springs 1T14C1 For HENDRICKSON S-13154
Product Details
|
Type |
Air Spring |
Material |
Rubber+Steel |
|
Warranty |
12 Months |
GUOMAT NO. |
1T5311 |
|
Firestone |
W01-358-5311 1T14C-1&1T14F-2 |
Ridewell |
1003585311C |
|
Note |
Flxible 6-379-1 |
Hendrickson |
S-13154 |
|
Meritor |
200 793 |
Meritor |
200793 |

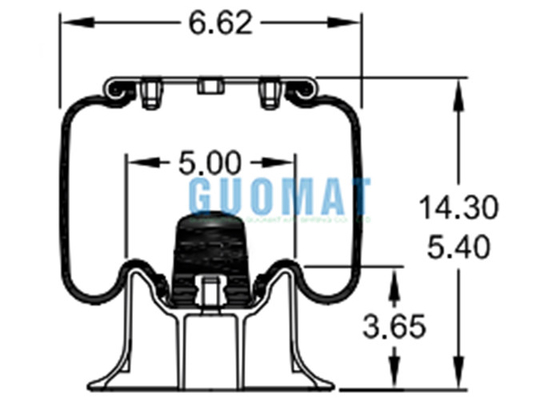

1T5311 Technical Parameter Data
The diameter of the upper cover is 160 mm, the specification of the air hole is 1/4NPT, the specification of the threaded hole is 2 pieces of 3/8-16UNC, the distance between the threaded holes is 89 mm, and the distance between the threaded hole and the air hole is 44 mm. The diameter of the base is 179mm, the height of the base is 93mm, the natural outer diameter of the air spring is 200mm, and the natural height is 230mm
Firestone#W01-358-5311
Firestone#W01 358 5311
Firestone#W013585311
Firestone#WO1-358-5311
Firestone#WO1 358 5311
Firestone#WO13585311
FirestoneStyle#1T14C-1
FirestoneStyle#1T14F-2
FirestoneStyle#1T14C-1&1T14F-2
Ridewell#1003585311C
Hendrickson#S-13154
Meritor#200 793
Composition of Truck Suspension Air Spring
Air springs are usually made of a bellows or rubber bag filled with gas (usually air) and act as a spring to reduce vibration and provide better stability to the unit. Bellows or rubber bags are connected to metal or aluminum plates or other connected fixed parts, which are usually located on the chassis or in the cab suspension. Some air springs may also have rubber bushings or other parts to help with the suspension system. Overall, truck suspension air springs can vary in composition, but typically consist of rubber bags or bellows with connecting components to provide a smoother, safer ride.
For VOL-VO Truck Air Suspension Spring
|
Firestone |
Style |
VOL-VO |
Firestone |
Style |
VOL-VO |
|
W01-M58-8472 |
1T15LR |
0 076 415 |
W01-M58-8690 |
1T15LR |
20 531 988 |
|
W01-M58-8477 |
1T15LR |
20 375 227 |
W01-M58-6088 |
1T15JR |
22 058 737 |
|
W01-M58-6089 |
1T15JR |
22 058 738 |
W01-M58-6092 |
1T15JR |
22 058 739 |
|
W01-358-9422 |
1T15L1.5 |
3130496 |
W01-358-9069 |
1T15M4 |
3130497 |
|
W01-M58-8474 |
1T15UR |
1 075 891 |
W01-M58-8473 |
1T15UR |
1 076 418 |
|
W01-M58-5787 |
1T15UR |
20 582 213 |
W01-M58-8470 |
1T15UR |
20 573 108 |
|
W01-M58-8545 |
1T15UR |
22 058 741 |
W01-M58-8546 |
1T15UR |
22 056 630 |
|
W01-358-9270 |
1T15VP4 |
85101147 |
W01-358-8829 |
1T15XMR7 |
3934699 |
|
W01-M58-8577 |
1T17JBR-9.7 |
1 075 363 |
W01-M58-8069 |
1T17KR |
21715299 |
|
W01-M58-9706 |
1T17SR-8.5 |
1 076 594 |
W01-M58-9707 |
1T17SR-6.5 |
1 076 075 |
|
W01-M58-5520 |
1T16L |
20 726 768 |
W01-M58-5521 |
1T19L |
20 722 412 |
