Place of Origin: | CHINA |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949:2009 |
Model Number: | 1T8472 |
Minimum Order Quantity: | 6pcs |
---|---|
Price: | $89.9-99.9/pc |
Packaging Details: | strong carton box or as customers need |
Delivery Time: | 3-8 work days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 1000pcs/week |
Product Name: | Truck Air Springs | Color: | Black |
---|---|---|---|
Packaging: | Carton | Shape: | Cylindrical |
Material: | Rubber And Steel | Contitech: | 6605NP01 |
Goodyear: | 1R11-805 | Phoenix: | 1DF20D-1 |
High Light: | Trailer Suspension Air Pillow,W01-M58-8472 Suspension Air Pillow,Suspension Air Pillow 20427800 |

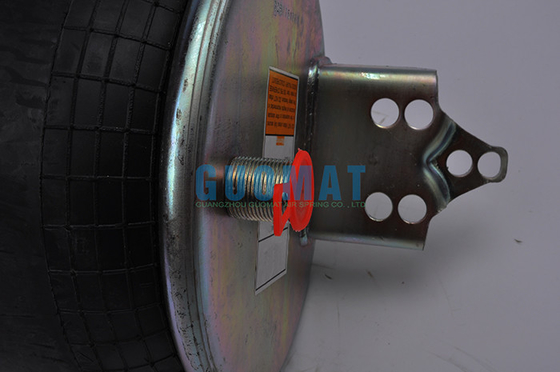

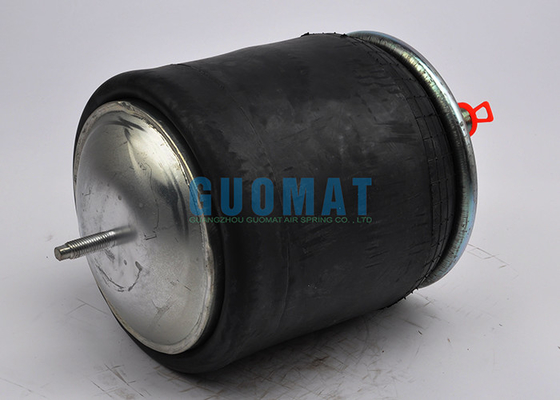

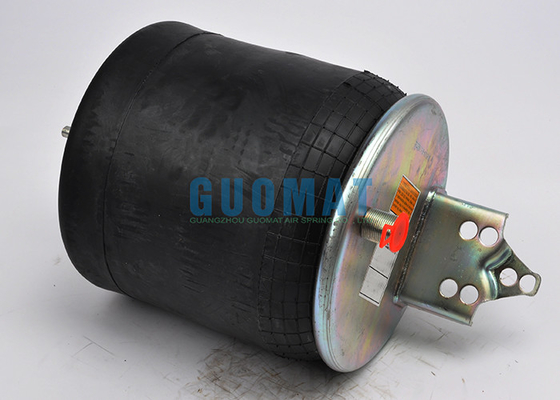

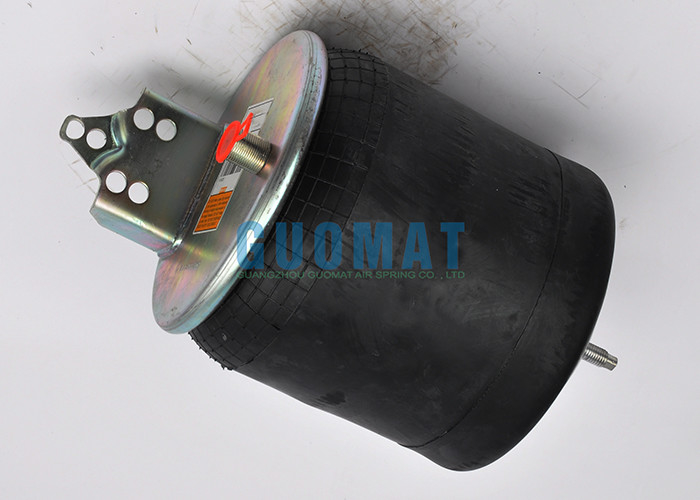

Truck/Trailer Suspension Air Pillow W01-M58-8472 Firestone VOL-VO Air Ride Spring 20427800
Product Description
The Firestone truck air spring with the part number W01-M58-8472 is a high-quality air spring used in trucks and trailers. It is compatible with various truck models and is designed to provide suspension support and shock absorption.
Cross Reference Number:
Firestone Part Number # W01-M58-8472
Firestone Part Number # W01M588472
Firestone Part Number # W01 M58 8472
Contitech Part Number # 6605NP01
Contitech Part Number # 6605 NP 01
Contitech Part Number # 6605 NP01
Goodyear Part Number # 1R11-805
Goodyear Part Number # 1R11 805
Goodyear Part Number # 1R 11-805
Phoenix Part Number # 1DF20D-1
Phoenix Part Number # 1 DF 20D-1
Dunlop FR Part Number # D11B42
Manufacturer | Part Number | Manufacturer | Part Number |
Airtech | 37803K | Airfren | 20.6605.1CM |
DT | 2.62176 | Templin | 04.060.6106.991 |
Granning | 93914 | WABCO | 9518110050 |
Meritor | MLF7154 | VOL-VO | 20427800 |
VOL-VO | 20427803 | VOL-VO | 20456150 |
VOL-VO | 20531984 | VOL-VO | 20582206 |
VOL-VO | 3171692 | - | - |
GUOMAT 1T8472 Detailed Technical Parameters
Top cover diameter: 231mm
Base diameter: 200mm
Combination column of top cover: M16X1.5/M24X1.5
Base bolt: M14X2.0
Natural outer diameter: 280mm
Maximum height: 502mm
Minimum height: 198mm
Piston height: 164mm
Installing Air Springs in VOL-VO Trucks
Prepare the vehicle: Before working on the vehicle, set the parking brakes, place the transmission in neutral, and block the wheels to prevent unexpected vehicle movement .
Remove the old air springs:
Remove the retaining clip from the bottom stud of the air spring .
Unscrew the air spring from the bottom of the cab .
Install the new air springs:
Install the spring plate on top of the new air spring .
Screw the new air spring into the bottom of the cab .
For the VN780 vehicle, place the bottom stud through the cab suspension crossmember and install a new retaining clip over the stud .
Apply pipe sealer to the fitting and install the air fitting in the bottom of the air spring .
Complete the installation:
Install the air line and start the truck to allow the air system to refill .
Remove the bottle jack and the cab supports .
Check for air leaks .
