| Place of Origin: | CHINA |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1T9141 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $89.9-99.9/pc |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 3-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Type: | Truck Air Springs | Color: | Black |
|---|---|---|---|
| Packaging: | Carton | Shape: | Cylindrical |
| Material: | Rubber And Steel | Size: | Standard |
| Application: | For Neway Truck | Warranty: | 1 Year Warranty |
| High Light: | 1R13-039 Air Suspension Repair Kits,4810 NP 03 Air Suspension Repair Kits |
||

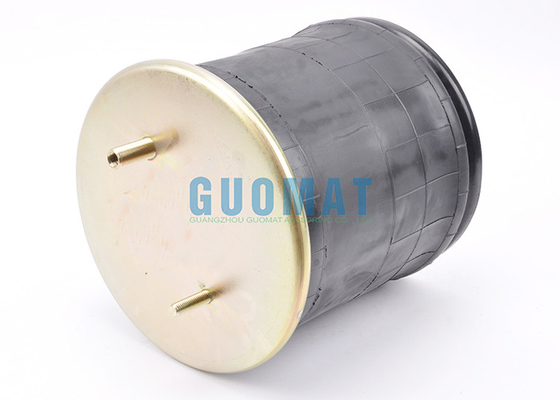

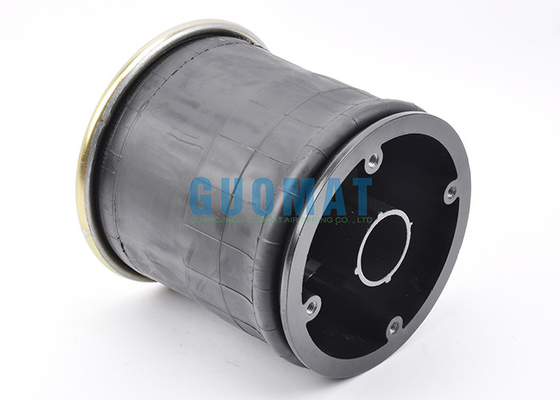

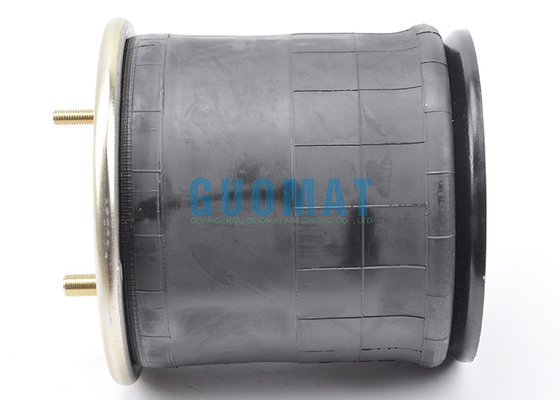

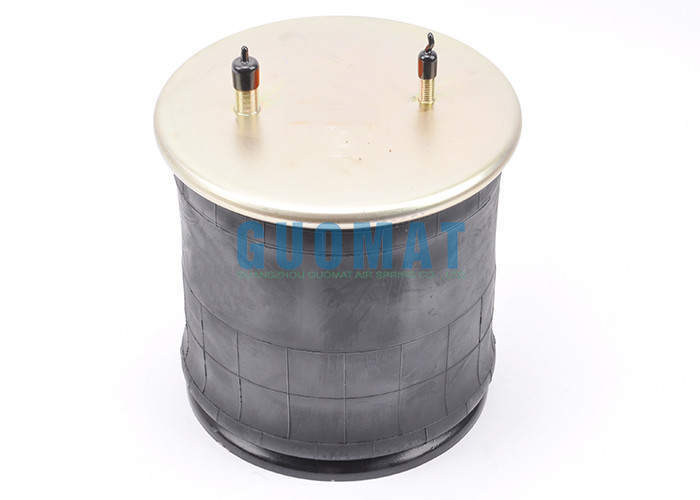

1R13-039 Goodyear Truck Air Suspension Repair Kits 4810 NP 03 Contitech Air Spring Replacement
Product Description
A truck suspension air spring, also known as an airbag or air suspension, is a component of a vehicle's suspension system that uses compressed air to support the weight of the vehicle and provide a smoother ride. It is typically made of a flexible and durable rubber material and is designed to replace traditional coil or leaf springs in certain applications.
Refer Numbers:
Firestone Part Number W01-358-9141
Firestone Part Number W01 358 9141
Firestone Part Number W013589141
Firestone Bellow Number 1T19F-7
Firestone Bellow Number 1T 19F-7
Firestone Bellow Number 1T19F 7
Firestone Part Number W01-358-9121
Firestone Part Number W01 358 9121
Firestone Part Number W013589121
Firestone Bellow Number 1T19L-7
Firestone Bellow Number 1T 19L-7
Firestone Bellow Number 1T19L 7
Contitech Part Number 4810NP03
Contitech Part Number 4810 NP03
Contitech Part Number 4810 NP 03
Contitech Bellow Number 10.5-17A317
Goodyear Part Number 1R13-039
Goodyear Part Number 1R 13-039
Goodyear Part Number 1R13 039
Goodyear Flex Number 566-26-3-051
Goodyear Flex Number 566 26 3 051
Goodyear Flex Number 566263051
Goodyear Piston Number 566-20-7-327
Goodyear Piston Number 566 20 7 327
Goodyear Piston Number 566207327
Sauer Part Number P50-733
Ridewell Part Number 1003589121C
Waston&Chalin AS-0013
GUOMAT 1T9141 Detailed Technical Parameters
Top cover diameter: 289mm
Base diameter: 260mm
Combination column of top cover: 1/4NPT 3/4-16UNF
Bolt: 2/1-13UNC
Natural outer diameter: 330mm
Maximum height: 560mm
Minimum height: 180mm
Piston height: 140mm
Benefits of Truck Suspension Air Springs
Improved Comfort: Air springs can provide a smoother and more comfortable ride by absorbing road shocks and vibrations.
Load Support: They help support heavy loads and prevent the vehicle from sagging or bottoming out.
Adjustable Ride Height: Air springs can be adjusted to different ride heights, allowing for better control and handling.
Leveling Capability: They can help level the vehicle when carrying uneven loads, ensuring proper weight distribution.
Reduced Wear and Tear: By absorbing road impacts, air springs can help reduce wear and tear on other suspension components, such as shocks and tires
Goodyear Truck Air Spring
| Goodyear Number# | Piston Number# | Flex Number# |
| 1R13-070 | 566-20-7-084 | 566-26-3-015 |
| 1R13-117 | 566-20-7-080 | 566-26-3-043 |
| 1R13-115 | 566-20-7-006 | 566-26-3-044 |
| 1R13-116 | 566-20-7-006 | 566-26-3-044 |
| 1R13-124 | 566-20-7-127 | 566-26-3-050 |
| 1R13-138 | 566-20-7-106 | 566-26-3-050 |
| 1R13-039 | 566-20-7-327 | 566-26-3-051 |
| 1R13-047 | 566-20-7-096 | 566-26-3-051 |
| 1R13-049 | 566-26-3-051 | |
| 1R13-053 | 566-20-7-036 | 566-26-3-051 |
| 1R13-075 | 566-20-7-036-03 | 566-26-3-051 |
| 1R13-155 | 566-20-7-106 | 566-26-3-051 |
