| Place of Origin: | GuangDong, China |
| Brand Name: | CONTITECH |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1T6317 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $89.9-99.9/pc |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Item Name: | Truck Air Spring | Warranty: | 1 Year |
|---|---|---|---|
| Rubber Type: | Natural Rubber | Material: | Metal And Rubber |
| The Stroke: | 208mm-565mm | Contitech: | 4157 NP 08 |
| Color: | Black | Phoenix: | 1 DK 20C-2 |
| High Light: | Truck Rolling Lobe Air Spring,W01-M58-6317 Rolling Lobe Air Spring |
||
W01-M58-6317 Firestone Suspension Rubber Bellows 1R11-773 Goodyear Truck Rolling Lobe Air Spring
Product Details
Air Spring Type: T Reversible Sleeve
Brand: GUOMAT
Model Number: 1T6317
Grade Type: Heave Duty
MOQ: 1PC
Warranty: 1 Year
Material: Natural Rubber
Position: Front/Rear
Applition: Air Suspension
OEM Number
| Firestone | W01-M58-6317 | Firestone | 1T15MPW-7 |
| Phoenix | 1DK20C-2 | Goodyear | 1R11-773 |
| Taurus | KR915-53NW | Contitech | 4157NP08 |
| Dunlop FR | D 12B 30 | Fuehauf/SMB | M078580 |
| Neway | 90557233 | Airtech | 134262 |
| Airtech | 39002-A3KPP | Airtech | 39002-08KPP |
| Granning | 15750 | WABCO | 9518117730 |
| Meritor | MLF7180 | - | - |

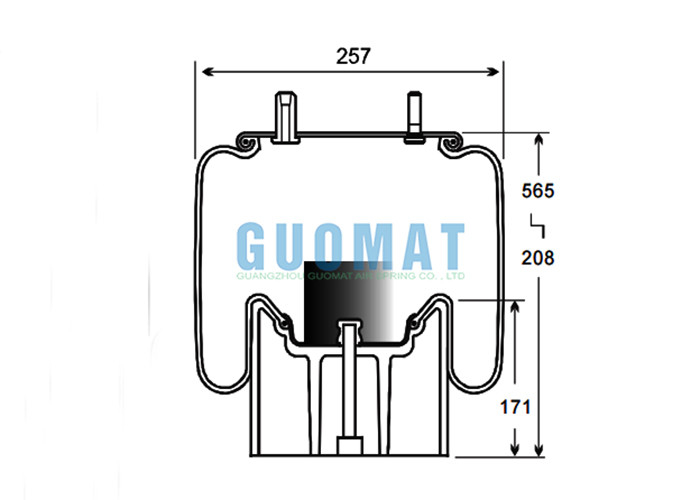

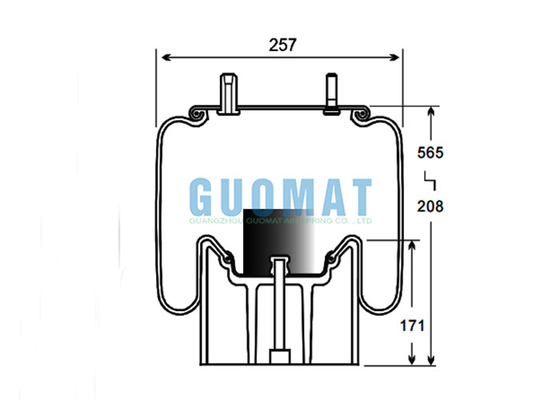

Technical Data

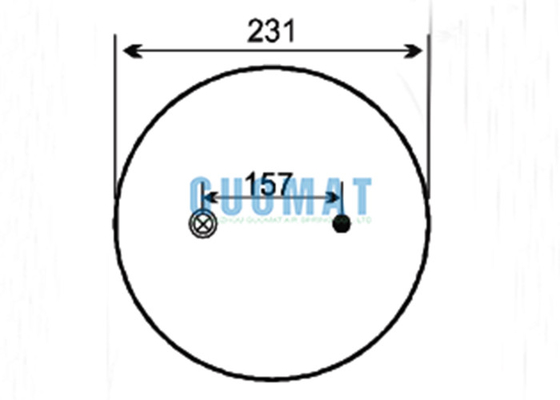

Top cover plate diameter is 231mm
The diameter of the top cover is 231mm
Air connection specification is M20X1.5
The specification of the combo stud is M12X1.5
The center distance between the air hole and the combo stud is 157mm

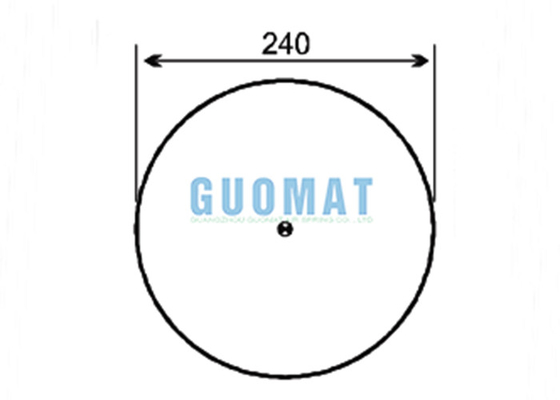

Base width is 240mm
Base height is 171mm
The threaded hole specification of the base is M12X1.75
Natural outer diameter: 257mm
Maximum height: 565mm
Minimum height: 208mm
1T15MPW-7 Firestone Rubber Bellow
Rubber Bellow Number 1T15MPW-7,Firestone Number W01-M58-6260,Hendrickson Truck 59053-2
Rubber Bellow Number 1T15MPW-7,Firestone Number W01-M58-6217,Holland (Neway) 90557233
Rubber Bellow Number 1T15MPW-7,Firestone Number W01-358-6231,Arvin Meritor 21227742FS/FS230
Rubber Bellow Number 1T15MPW-7,Firestone Number W01-M58-6262,Hendrickson Truck Arvin Meritor 21227742 FS25
Rubber Bellow Number 1T15MPW-7,Firestone Number W01-358-8903,Holland (Neway) 905572169(Advance Mixer)
About Our Services
1. We will reply to your inquiry within 24 hours
2. Actively answer your questions
3. We will verify the model number with you before purchasing to avoid errors.
4. After receiving your payment, we will arrange delivery immediately
5. Once we have the tracking number, we will provide it to you
W01-M58-6317 Firestone Specifications
| Bead Plate Diameter (Top) | 9'' |
| Piston Height | 4.75" |
| Weight | 19.5 |
| Extended Height Deflated | 20.7'' |
| Bead Plate (Top) Mounting Bolts Dimension Center to Center | 6.2" |
| Minimum Height | 6.5'' |
The Real Picture
