| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1T12-826 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $89.9-99.9/pc |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Product Name: | Truck Air Spring | Warranty: | 1 Year |
|---|---|---|---|
| Material: | Metal And Rubber | Car Model: | VOL-VO |
| Type: | Air Spring | Weight: | 9.865KG |
| Packing Size: | 27*27*30(CM) | Other Name: | Lift Axle Air Springs |
| High Light: | 566-24-3-524 Truck Air Springs,1R12-825 Truck Air Springs,21057939 Truck Air Springs |
||
For VOL-VO Truck Air Spring 1R12-825 Goodyear 566-24-3-524 Suspension Rubber Bellows 21057939
Product Details
Goodyear 1R12-826 is a rubber air spring used in VOL-VO cars. It is compatible with VOL-VO models such as the VOL-VO 7700. The part numbers for this air spring are 20703452,21057909,21013010,21513836
Goodyear Part Number: 1R12-826
Goodyear Part Number: 1R 12-826
Goodyear Part Number: 1R12826
Goodyear Bellow Number: 566243524
Goodyear Bellow Number: 566 24 3 524
Goodyear Bellow Number: 566-24-3-524
DT Part Number: 2.61032
VOL-VO Part Number: 20703452 / 20 703 452
VOL-VO Part Number: 21057939 / 21 057 939
VOL-VO Part Number: 21013010 / 21 013 010
VOL-VO Part Number: 21513836 / 21 513 836
Detailed Technical Parameters
Cover diameter: 262mm
Bolt/stud:2XM10
Center distance between bolts: 176mm
Air hole connection: M16X1.5
Distance between air hole and Bolt: 48mm
Base piston width: 225mm
Piston material: Steel
Bolt:M10X1.5
Center distance between bolts: 106mm
Rubber bellow outer diameter: 245mm
Maximum height: 350mm
Minimum height: 215mm
Payment & Shipping
|
PAYMENT: |
Standard payment terms: 30% deposit, the balance before shipping after inspection. (T/T, Trade Assurance, Paypal, Western Union) |
|
SHIPPING: |
Delivery time: production time please confirm with salesman for detail requirement. Usually 3-10 working days. |
For VOL-VO Truck Goodyear Air Spring
|
Bellows Number |
Goodyear Number |
Piston |
VOL-VO |
|
566-20-7-038 |
1R12-423 |
566-20-7-246 Steel |
3180673 |
|
566-24-3-038 |
1R12-182 |
566-20-7-079 Steel |
35003-3201 |
|
566-24-3-038 |
1R12-182 |
566-20-7-079 Steel |
35003-3203 |
|
566-24-3-038 |
1R12-182 |
566-20-7-079 Steel |
35003-3204 |
|
566-24-3-038 |
1R12-182 |
566-20-7-079 Steel |
35003-3209 |
|
566-24-3-038 |
1R12-400 |
566-20-7-246 |
8061151 |
|
566-24-3-038 |
1R12-400 |
566-20-7-246 |
8169868 |
|
566-24-3-038 |
1R12-462 |
566-20-7-246 Steel |
3180984P2 |
|
566-24-3-097 |
1R12-1049 |
566-20-7-236 Composite |
21132005 |

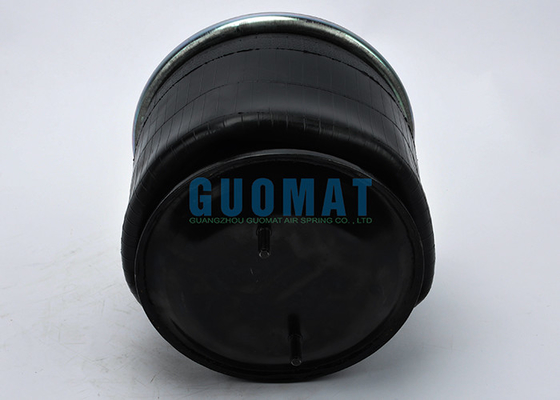

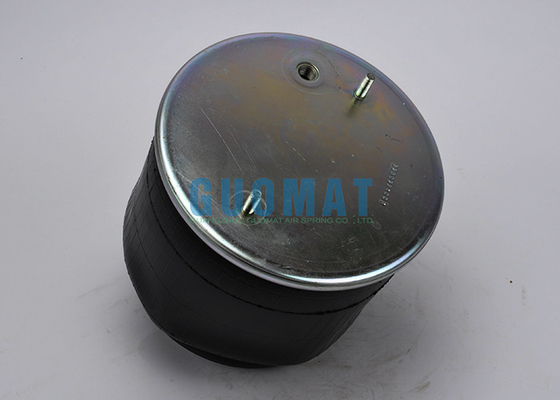

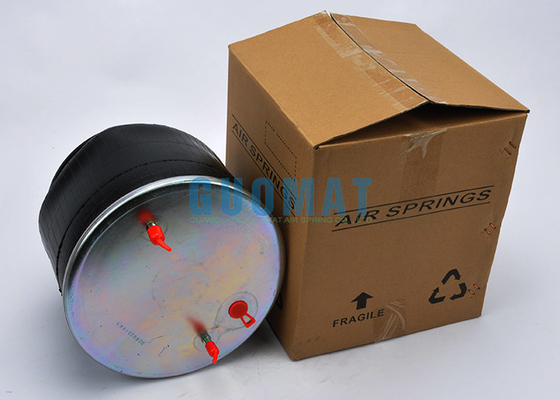

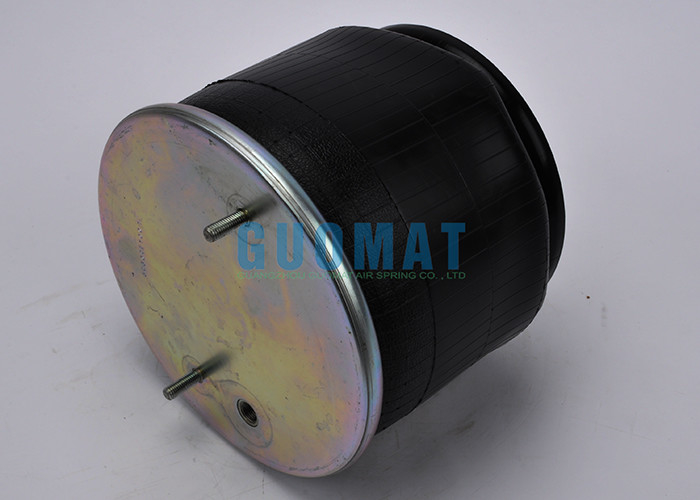

The Real Pictures of VOL-VO Truck Air Sping
