Place of Origin: | GuangDong, China |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949:2009 |
Model Number: | 1T9131 |
Minimum Order Quantity: | 6pcs |
---|---|
Price: | $89.9-99.9/pc |
Packaging Details: | strong carton box or as customers need |
Delivery Time: | 2-8 work days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 1000pcs/week |
Type: | Suspension Air Spring | Material: | Metal And Rubber |
---|---|---|---|
Operation: | Gas-Filled | Quality: | 100% Tested |
Price Condition: | FOB China | Sample: | Available |
OEM: | 4159NP09 | Packaging: | Carton/Pallet |
High Light: | 1T15M-9 Truck Air Springs,W01-M58-0736 Truck Air Springs,W01-M58-9131 Truck Air Springs |

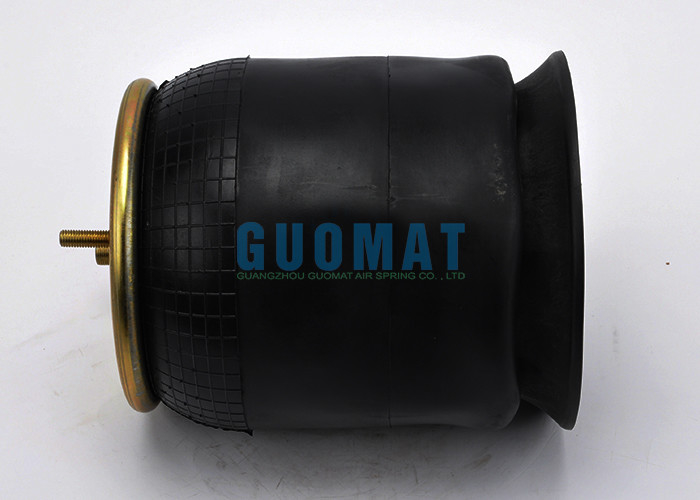

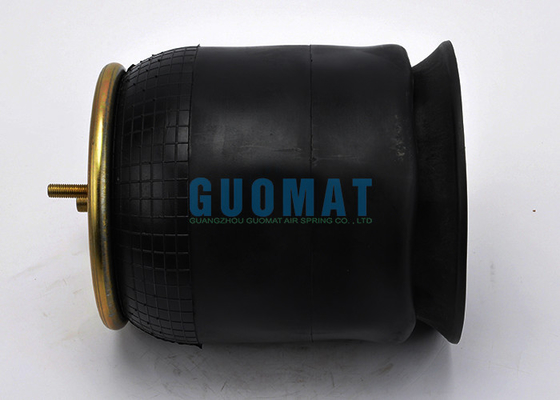

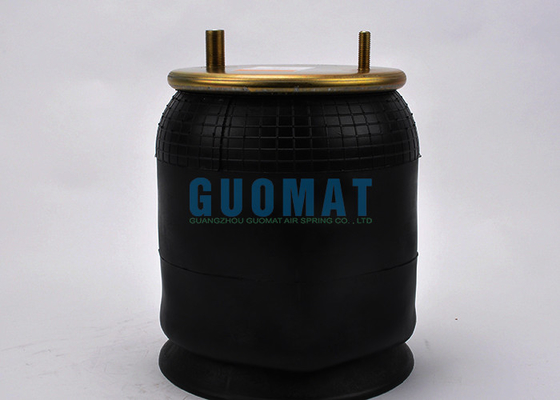

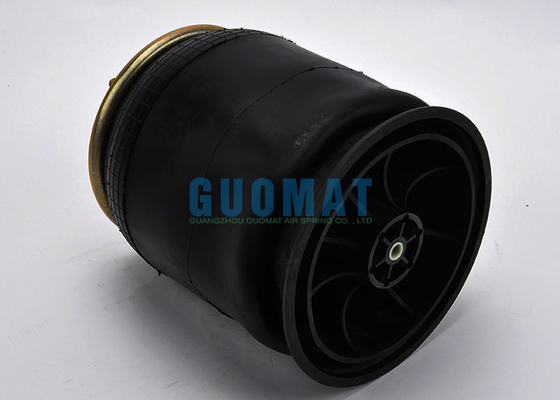

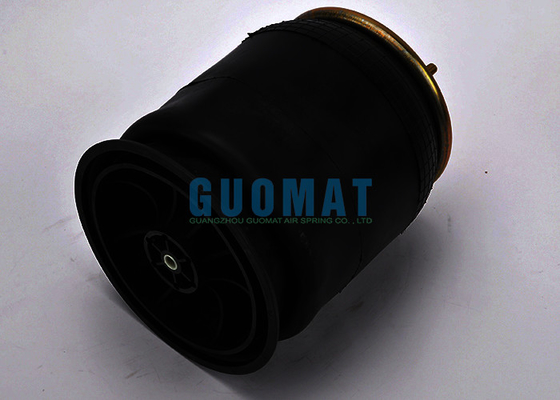

W01-M58-0736/W01-M58-9131 Firestone Suspension Rubber Bellows 1T15M-9 Air Spring
Product Details
Item |
Value |
Model No. |
1T9131 |
Type |
Air Spring |
Warranty |
12 Months |
Truck Model |
Heavy Duty Truck |
Color |
Black |
Place of Origin |
Guangzhou,China |
Certification |
ISO/TS16949:2009 |
Material |
Rubber+Steel |
Packing |
Neutral Packing |
MOQ |
1 Pcs |
Quality |
High-Quality |
Position |
Auto/Truck parts |
Application |
Auto Suspension Systems |
Original Equipment Manufacturer Number
Firestone Number: W01-M58-9131 / W01 M58 9131 / W01M589131
Firestone Number: WO1-M58-9131 / WO1 M58 9131 / WO1M589131
Firestone Number: W01-M58-0769 / W01 M58 0769 / W01M580769
Firestone Number: WO1-M58-0769 / WO1 M58 0769 / WO1M580769
Firestone Style: 1T15M-9 / 1T15M 9 / 1T15M9
Contitech Number: 4159NP09 / 4159 NP09 / 4159 NP 09
Goodyear Number: 1R12-721 / 1R12 721 / 1R12721
Goodyear Bellow Number: 566-24-3-501 / 566 24 3 501 / 566243501
Phoenix Number: 1DK21B8 / 1 DK 21 B8
CF Gomma Number: 1T323-40 / 1T323 40 / 1T32340
Taurus Number: KR 509-9131 / KR 509 9131 / KR 5099131
Acerbi 128147123
Cardi 58051210
Fruehauf UJB 0358 / UJB0358
Fruehauf UJY 0099 / UJY0099
SMB MOO1774 / MOO 1774
Dulop D12B04
Viberti 128147123
Technical Data
Cover plate diameter |
231mm |
Bolt/Stud |
M12X1.75 |
Combo Stud |
M12X1.5 M20X1.5 |
Center distance between Bolt and Combo Stud |
157mm |
Piston base diameter |
260mm |
Piston base height |
192mm |
Max.height |
650mm |
Min.height |
234mm |
Natural outer diameter |
315mm |
Max.outer diameter |
325mm |
Truck Air Spring
Truck air springs, also known as airbags or air suspension systems, are components used in truck and trailer suspension systems. They are designed to provide a smoother ride, higher load carrying capacity and better handling characteristics than traditional coil or leaf spring suspensions.
Air springs work by using compressed air to support the weight of the vehicle and absorb road shock and vibration. They consist of flexible air bladders made of durable materials such as rubber and are connected to an air compressor and control system. The air compressor pumps air into the air springs to adjust the ride height and stiffness of the suspension, providing a comfortable and stable ride under different load conditions.
Air springs offer several advantages over traditional coil or leaf spring suspensions. They offer a smoother ride, higher load carrying capacity and better handling characteristics. Air springs adjust to different ride heights for easier loading and unloading. They also help level the vehicle when carrying heavy loads, reducing the risk of bottoming out or sagging. Additionally, the air springs can be fine-tuned to personal preference, providing customizable suspension settings.
The Drawing of GUOMAT 1T9131 Truck Air Spring
