| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | WBZ 250 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Warranty: | 12 Months | Material: | Rubber + Steel |
|---|---|---|---|
| Special Features: | Shock Absorption | Type: | Convoluted Air Spring |
| Sample: | Available | Operation: | Gas-filled |
| Key Words: | Air Suspension Bellow,Truck Air Bellow | MOQ: | 3 Pieces |
| High Light: | Double Convoluted Air Suspension Bellow,WBZ250-E2 Air Suspension Bellow |
||

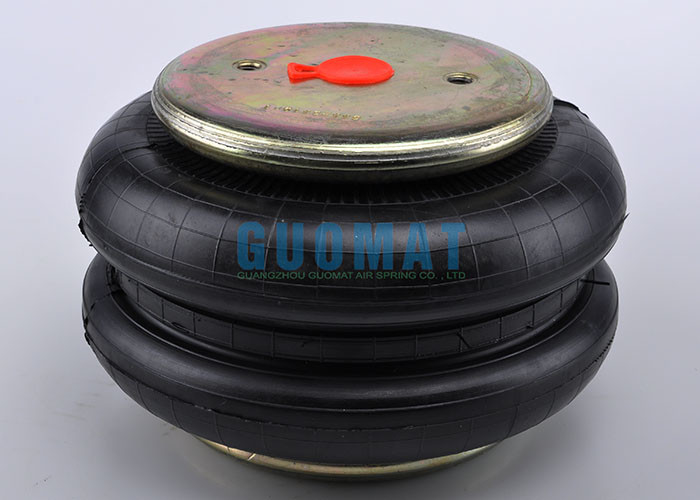

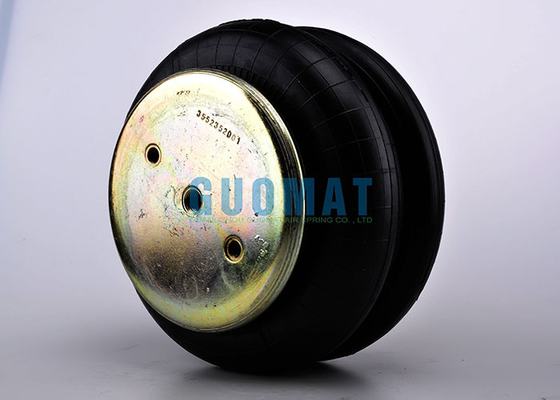

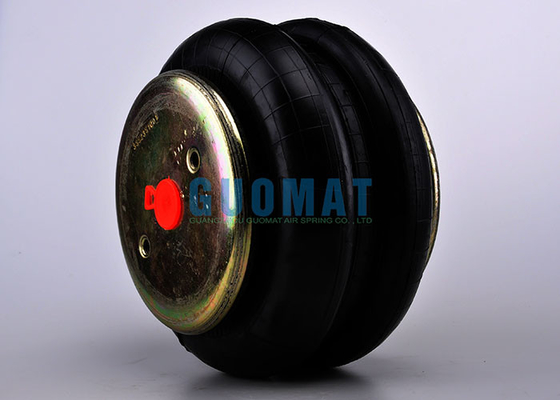

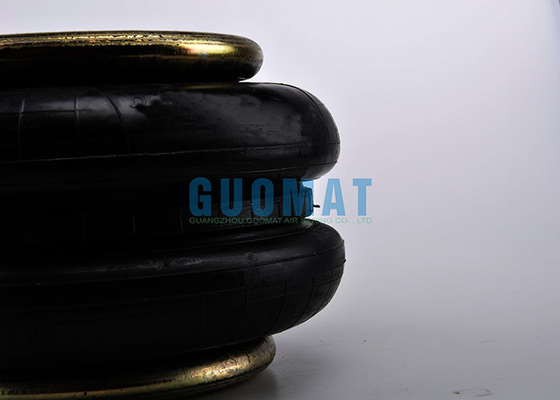

Gas Filled Double Convoluted Air Suspension Bellow WBZ250-E1/WBZ250-E2 Weforma Air Spring
Product Description
| GUOMAT Air Spring WBZ 250 |
|
Weforma Air Spring WBZ250 |
|
Weforma Air Spring WBZ 250 |
|
Weforma Air Spring WBZ 250-E2 |
|
Weforma Air Spring WBZ 250-E1 |
|
Weforma Air Spring WBZ250-E2 |
|
Weforma Air Spring WBZ250-E1 |
|
Weforma Air Spring WBZ 250 E2 |
|
Weforma Air Spring WBZ 250 E1 |
WBZ 250 Suspension Air Bellow Techncal Data
Maximum Height: 228mm
Minimum Height: 72mm
Recommended Height: 175mm
Cover Plate Diameter: 141mm
Air Connection
WBZ 250-E2: G1/4
WBZ 250-E1: G3/4
M8: 25Nm
G1/4: 25Nm
G3/4: 50Nm
Threaded Hole: 2pcsXM8 15mm deep
Center Distance Between Threaded Holes: 70mm
The Rubber Bellows Maximum Outer Diameter: 203mm
Installation Space Needed: 215mm
Min.pressure: 0 bar
Return force to min.height: ≤200N
Overall Weight with Clamped Plates: 2.1KG
Pneumatic Application - Static Characteristic Values
Force F (kN)
| Pressure P | bar | 3 | 4 | 5 | 6 | 7 | 8 | Vol.(I) |
| Height H (mm) | 180 | 3.1 | 4.1 | 5.2 | 6.3 | 7.4 | 8.6 | 2.9 |
| 160 | 3.9 | 5.1 | 6.5 | 7.8 | 9.1 | 10.5 | 2.7 | |
| 140 | 4.5 | 6.0 | 7.5 | 9.0 | 10.6 | 12.2 | 2.4 | |
| 120 | 5.0 | 6.7 | 8.4 | 10.1 | 11.8 | 13.6 | 2.1 | |
| 100 | 5.6 | 7.4 | 9.3 | 11.2 | 13.1 | 15.0 | 1.7 | |
| 80 | 6.1 | 8.1 | 10.1 | 12.2 | 14.2 | 16.2 | 1.3 |
Advantages of Airbags in Vehicle Suspension
1. Improved Ride Quality: Airbags provide a cushioning effect between the vehicle body and the wheels, reducing vibrations and improving overall ride comfort .
2. Enhanced Handling and Stability: Air suspension systems can improve steering response and stability by maintaining a consistent ride height and adjusting the suspension to adapt to different road conditions.
3. Load Carrying Capacity: Airbags can help support heavy loads and improve load-carrying performance. They can be particularly beneficial when towing heavy and uneven loads, as they help to distribute the weight evenly and reduce strain on the vehicle .
4. Adjustable Ride Height: Air suspension systems allow for adjustable ride height, which can be useful in various situations. For example, when driving off-road, the ride height can be increased to provide better ground clearance, and when parking, the ride height can be lowered for easier entry and exit.
5. Versatility: Air suspension systems offer greater versatility compared to traditional spring suspensions. They can be adjusted to accommodate different road conditions, loads, and driving preferences, providing a more customizable driving experience.
6. Improved Braking and Handling: Airbags can help improve braking performance by reducing nose dive during hard braking. They also contribute to better handling by minimizing body roll during cornering.
7. Reduced Wear and Tear: Air suspension systems can help reduce wear and tear on the vehicle and its components. By absorbing shocks and vibrations, they can minimize stress on the chassis, tires, and other suspension parts, potentially extending their lifespan .
The Drawing of WBZ 250 Suspension Air Bellows
