Universal Truck Parts 910-16P310 Contitech 1R12-092 Goodyear Suspension Air Shock Spring
Product Description
GUOMAT1T9082 air springs bring new productivity and longer life to your trucks, trailers and buses. Rolling cam air spring provides constant level traction and provides trouble-free service.
Cross Reference Number
|
Firestone |
W01-358-9082 / W01 358 9082 / W013589082 / 9082 |
|
Firestone |
WO1-358-9082 / WO1 358 9082 / WO13589082 |
|
Contitech |
910-16P310 / 910-16 P 310 / 910-16 P310 / 64269 |
|
Goodyear |
1R12-092 / 1R 12-092 / 1R12092 |
| Goodyear | 566-24-3-163 / 566243163 / 566 24 3 163 |
|
Taurus |
KR506-9082 / KR 506-9082 |
Compatible with OEM Numbers of the Following Vehicles
Airtech: 132302 / 34156-05KPP
Neway: 90557006 / 905-57-006
Neway: 90557027 / 905-57-027
Neway: 90557037 / 905-57-037
Neway: 90557054 / 905-57-054
Neway: 90557075 / 905-57-075
Neway: AR13151F / AR-1315-1-F
Neway: AR13151G / AR-1315-1-G
Dayton: 352-9082
Ganning: 15610
HDA: PMABG9082B
R&S Truck: 1090217
Loadguard: Sc2035
Hutchens: H-9630-01
Triangle: 8310
Watson&Chalin: AS-0011
Ridewell: 1003589082C
ROR/Meritor: MLF7114
Hendrickson: 36514-7/S11651
Hendrickson: B2066/B-12514-007
Automann: AB1DK23K-9082
Fab Tek: 101828
Fleetrite: 1R12-1053
Granning: 2727
Hutchens Ind.: 9630-01
INT'L/NAVISTAR: 517559C9
KWIK-LOK/TODCO: CP-3281 / CP-5125 / CP5152
NOVABUS: N39112
REYCO: 12882-01
SPRINGRIDE: 1R12-1070
SUSPENSIONS INC: 201869
TOYO: TRL-240/393

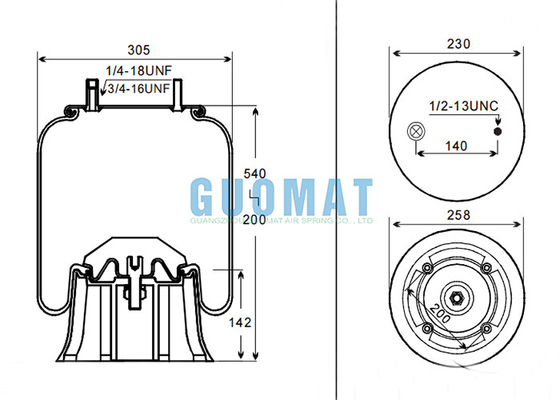

1T9082 Technidal Data Details
Part Type: Trailer/Truck
Details: Rolling Lobe
Top top diameter: 230mm
Number of holes on top: 2
Combo stud: 1/4-18UNF,3/4-16UNF
Bolt/Stud: 1/2-13UNC
The distance between the combo stud and bolt/stud: 140mm
Base plate diameter: 258mm
Number of top holes: 4
Natural outer diameter: 305mm
Maximum height: 540mm
Minimum height: 200mm
Compression height: 240mm
Base height: 142mm
Truck Air Spring with the Same Bellows Number
|
Goodyear Number |
Bellows Number |
Piston Number |
Type |
|
1R12-092 |
566-24-3-163 |
566-20-7-080 |
Composite |
|
1R12-401 |
566-24-3-163 |
566-20-7-221 |
Composite |
|
1R12-538 |
566-24-3-163 |
566-20-7-236 |
Composite |
