25 Style Firestone Air Springs Bellows W01-358-0030 Double Convoluted Industrial Air Bags
Product Description
The W01-358-0030 air spring is a component used in air suspension systems for various vehicles. It is part of the Firestone Airide air springs product line, which offers replacement springs for a wide range of air suspension systems on the market. GUOMAT 2B6X6P06 Designed with reference to W01-358-0030 specifications and providing unparalleled reliability.His description is: Socket head aluminum bead rings (bolts, nuts, washers not included-use M6 cap screws.
GUOMAT Number: 2B6X6P06
GUOMAT Number: 2B 6X6P06
GUOMAT Number: 2B6X6 P06
GUOMAT Number: 2B 6X6 P06
Firestone Number: W01-358-0030
Firestone Number: W01 358 0030
Firestone Number: W013580030
Firestone Number: WO1-358-0030
Firestone Number: WO1 358 0030
Firestone Number: WO13580030

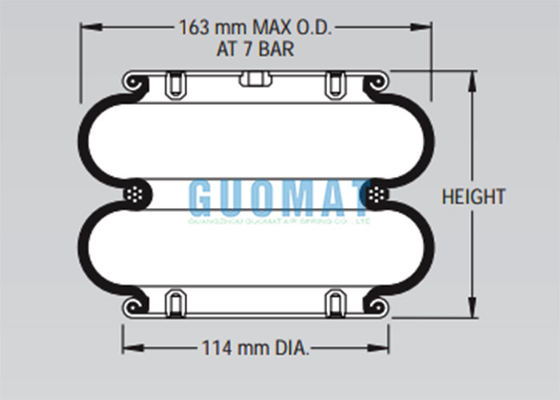

W01-358-0030 Firestone Rubber Air Bellow Technical Data
Top cover diameter: 114mm

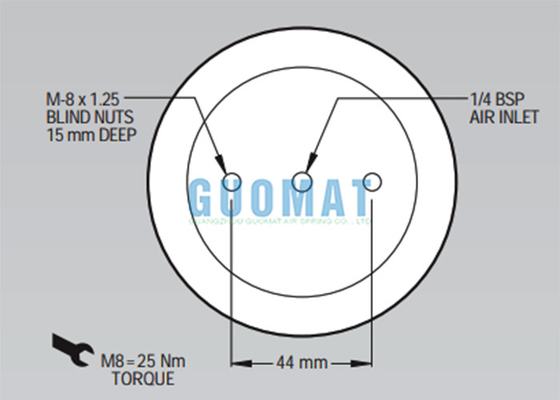

Air hole specifications: 1/4 BSP
Threaded hole specifications: M-8x1.25
The center distance between the two threaded holes of the top cover: 44mm
Bottom cover diameter: 114mm
The center distance between the two threaded holes of the top cover: 44mm
The rubber bellows max outer diameter: 163mm
maximum height: 177mm
Compression height: 72mm
Design height: 140mm
|
|
Description |
Assembly Order No. |
|
Style 25 |
Blind nuts,1/4 BSP |
W01-M58-6160 |
|
Two Ply Bellows |
Socket head aluminum bead rings (bolts, nuts, washers not included-use M6 cap screws. |
W01-358-0030 |
|
Rubber Bellows only(no girdle hoop |
W01-358-0025 |
Installing an Air Spring with Flange Ring
To install an air spring with a flange ring, you can follow the steps below based on the information gathered from various sources:
Step 1: Fasten the Upper Bracket
Fasten the upper bracket to the air spring using 3/8"-16 flange nuts .
Step 2: Attach the Lower Bracket
For 4WD vehicles, fasten the left lower bracket to the air spring with a 3/8"-16 x 3/4" flange bolt. For 2WD vehicles, use a 3/8"-16 x 2" flange hex bolt and ensure the open end of the spacer mounts towards the lower bracket .
Step 3: Position the Fittings
Install the elbow fitting into the air spring through the large access hole in the upper bracket. Tighten the air fitting securely to engage the orange thread sealant. Position the fitting to point to the anticipated location of the air inflation valves .
Step 4: Secure the Ring
Secure the ring by snapping the round clip spring or snap ring into the groove on the flange tailpiece .
Step 5: Tighten the Mounting Ring Assembly
Use appropriate tools such as a hammer and rag to tighten the mounting ring assembly .
By following these steps, you should be able to successfully install an air spring with a flange ring.

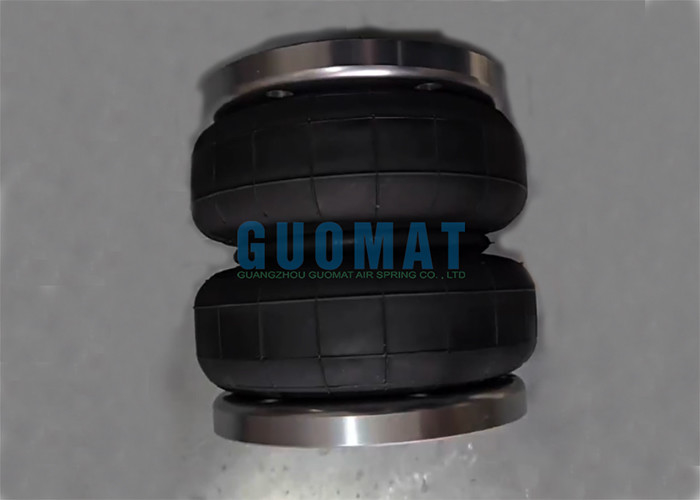

GUOMAT 2B6X6P06 Air Spring Real Pictures
