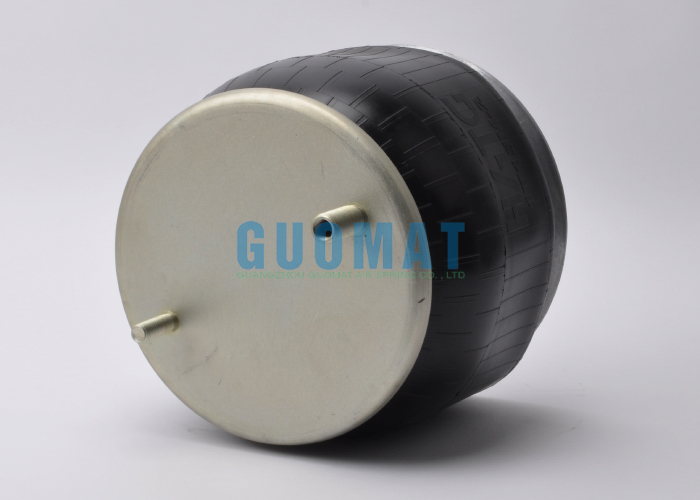

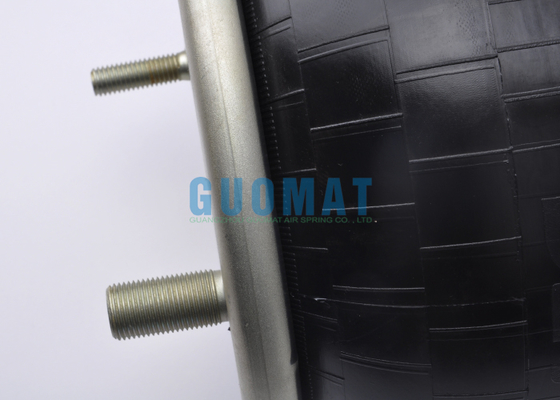

1R8-034 Goodyear Rubber Air Bags W01-358-5710 Firestone Truck Suspension Air Spring

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1T5710

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$79.9-99.9/pc
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Model Name:	Trailer Air Spring	Warranty:	1 Year
Material:	Rubber And Steel	Application:	Truck Air Suspension
Goodyear:	1R8-034	Firestone:	W013585710/W013585730
Operating Temperature:	30℃-70℃	Color:	Black
Highlight:	Goodyear truck air springs , Firestone suspension air bags , heavy duty rubber air springs

1R8-034 Goodyear Rubber Air Bags W01-358-5710 Firestone Truck Suspension Air Spring

Product Attributes

Attribute	Value
Model Name	Trailer Air Spring
Warranty	1 Year
Material	Rubber and Steel
Application	Truck Air Suspension
Goodyear	1R8-034
Firestone	W013585710/W013585730
Operating Temperature	30℃-70℃
Color	Black

Product Description

GUOMAT No.: 1T5710

Warranty: 1 Year

Material: Rubber+Steel

Packing: Carton packing

Application: Truck / Trailer Air Suspension

Color: Black

Installation: Direct Installation

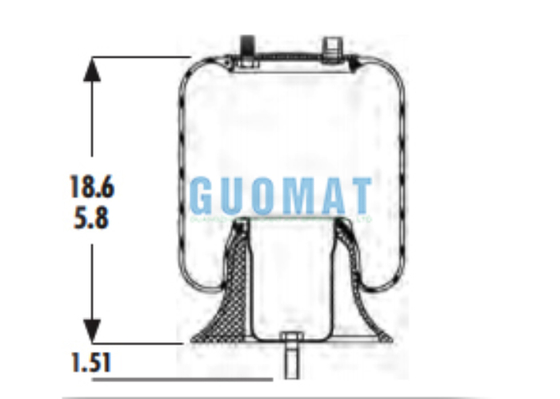

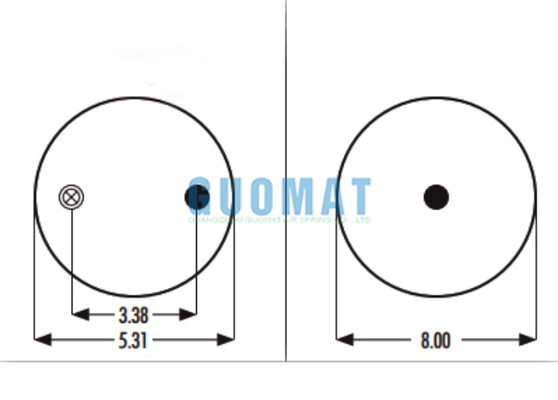

Technical Data

Assembly Weight: 7.2 lbs

Design Height: 12-13.5 inches

Minimum Jounce Height: N/A inches

Maximum Rebound Height: N/A inches

Loading Capacity at 20 psig: 656 lbsf

Loading Capacity at 60 psig: 1,968 lbsf

Loading Capacity at 90 psig: 2,952 lbsf

Natural Frequency: Hz

Maximum Diameter: 9.1 inches

OEM Numbers

GOODYEAR Part #: 1R8-034
GOODYEAR Part #: 1R 8-034
GOODYEAR Bellows #: 566163007
GOODYEAR Bellows #: 566 16 3 007
GOODYEAR Bellows #: 566-16-3-007
GOODYEAR PISTONE #: 566167021
GOODYEAR PISTONE #: 566 16 7 021
GOODYEAR PISTONE #: 566-16-7-021
FIRESTONE Bellows #: 1T14C-7
FIRESTONE Part #: 5710
FIRESTONE Part #: W013585710
FIRESTONE Part #: W01 358 5710
FIRESTONE Part #: W01-358-5710
FIRESTONE Part #: 5730
FIRESTONE Part #: W013585730
FIRESTONE Part #: W01 358 5730
FIRESTONE Part #: W01-358-5730
FLXIBLE Part #: 6-304-156
FLXIBLE Part #: 6-336-175
GMC Part #: 10530086
GMC Part #: 6617550
GMC Part #: 698634
GMC CONT. Part #: 8870484
GMC CONT. Part #: G5008051
LTS AUTOBUS Part #: 10530086
LTS AUTOBUS Part #: 698934
LTS AUTOBUS Part #: G5001705
NOVABUS Part #: G5001705
NOVABUS Part #: G5001706
PREVOST Part #: 63-0226

How Air Springs Are Used on Trailers

Air Spring Installation Location
Replacing Traditional Leaf Springs: Some trailers use air springs directly as the main suspension system, replacing steel leaf springs or coil springs.
Auxiliary Suspension (Stacking): Air springs are added to the existing suspension system to provide additional support when loaded (commonly used on heavy-duty trailers or RVs).
Core Functions
Load Control: Air springs adjust the air pressure to accommodate different loads (lowering the air pressure when unladen reduces jolts, while increasing the air pressure when heavily laden provides enhanced support).
Height Control: Maintains the trailer's levelness, preventing tilting or diving due to uneven loading (especially important when coupled to a tractor or pickup truck).
Shock Absorption: The elastic properties of air springs absorb road vibrations, protecting the cargo and improving comfort (especially important for delicate equipment or RVs).
Typical Application Scenarios
Cargo Trailers: When transporting heavy equipment, air springs are used to balance axle loads and avoid the risk of overloading.
RV/Camping Trailers: Maintain vehicle stability, reduce sway during parking, and enhance comfort.
Racing Car/Yacht Trailers: Protect valuable equipment from road impact.
Advantages Compared to Traditional Suspension
More Adaptable: Adjust air pressure with a single click to adapt to varying road conditions and loads.
Protecting the Vehicle Structure: Reduces impact from bumps on the trailer chassis and cargo.
Extending Tire Life: Balancing the load prevents uneven tire wear.
Precautions
Regularly inspect airbags to prevent aging, cracks, or leaks.
Avoid Overinflation: Observe the manufacturer's maximum air pressure specifications.
Winter Protection: Extreme temperatures may affect rubber elasticity, so use frost-resistant materials.
