Place of Origin: | Guangdong,China |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949:2009 |
Model Number: | 3B7843 |
Minimum Order Quantity: | 1pc |
---|---|
Packaging Details: | strong carton box or as customers need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union,Paypal or Others |
Supply Ability: | 1000pcs/week |
Material: | Steel Cover Plate , Rubber Bellows | Contitech: | FT 530-35 455 |
---|---|---|---|
Firestone: | W013587843 | Gas Hole / Air Inlet: | 1/4NPT |
Cover Plate Diameter (Width): | 287 Mm | Compressed Height: | 114 MM |
Goodyear: | 3B14-364 | ||
High Light: | convoluted air spring,air helper springs |

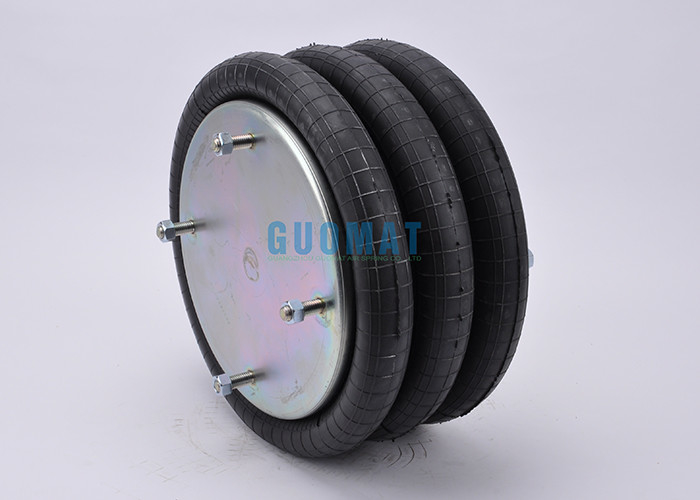

Goodyear Air Spring 3B14-364 Truck Air Bag Suspension For Midland/Haldex: CS314364
Cross Manufacturer | Cross OEM |
Firestone : | W01-358-7843/ W01 358 7843/W013587843 |
Firestone Bellows Number: | 333 |
Contitech : | FT 530-35 455/ FT 530 35 455 |
Goodyear | 3B14-364 |
Goodyear Number: | 3B14364 |
Goodyear Bellows Number: | 578933350/578-93-3-350 |
|
Compressed Height: 4.80 inches
Top Plate Number:3193
Top Plate Width:11.31 inches
Piston Number:3122
Piston Width:11.31 inches
Firestone Bellows Number:333
Goodyear Part Number:3B14-364
Goodyear Bellows Number:578-93-3-350
Triangle Part Number:4455
Triangle Bellows Number:6335
Hendrickson Auxiliary Number:S-7100
Top Plate Hole/Stud: 2
Bottom Plate Hole/Stud: 4
Top Plate Diameter: 11.3
Bottom Plate Diameter: 11.3
Collapsed Height: 4.9
Flexmember: 578-93-3-350
UCF/Impex: AB-3B14-364
Midland/Haldex: CS314364
Leland: SC2135
Goodyear Trimmed: 3B14364
Blind nuts, 1/4 NPT | WO1-358-7845 /W01-358-7845 |
Blind nuts, 1/4 NPT, bumper | WO1-358-7838 / W01-358-7838 |
Blind nuts, 3/4 NPT | WO1-358-7842 / W01-358-7842 |
Blind nuts, 3/4 NPT, bumper | WO1-358-7849 / W01-358-7849 |
Countersunk steel bead ring 13/4 bolts, nuts, washers | WO1-358-7830 /W01-358-7830 |
Rubber bellows only | WO1-358-7019 / W01-358-7019 |

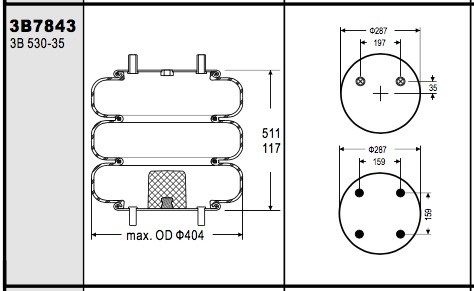

❶Bolts
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/4-16UNC
Screw Center Distance of Top Cover Plate : 159 mm
Bottom Cover Plate Screw (Nut) Tooth : 4 pcs X 1/2-13UNC
Screw Center Distance of Bottom Cover Plate : 159 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4NPT
Center Distance Between Nut and Air inlet: 197 mm
❸ Cover Plate
Top Cover Plate Diameter (Width): 287 mm
Bottom Cover Plate Diameter (Width): 287 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter : 404mm
Compressed Height: 114 mm
Maximum Height: 511 mm
Working Stroke : 117mm
❺ Bumper block / Buffer block
With Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :2 Pieces of Girdle Hoop
