| Place of Origin: | Guangdong,China |
| Brand Name: | Norgren |
| Certification: | ISO/TS16949:2009 |
| Model Number: | PM/31082 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | US$1.00-US$299.00/PC |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel Cover Plate , Rubber Bellows | Bellows NO .: | Springride DF 8 X 2 |
|---|---|---|---|
| Norgren: | PM/31082 | Plate Dia.: | 153.5mm |
| Max Dia.: | 175mm | Pressure Ability: | 0.2-0.8 MPa |
| Air Inlet: | G34 | Stroke: | 115mm |
| Firestone: | W01R584090 | ||
| High Light: | PM/31082 Industrial Air Spring,Double Convoluted Industrial Air Spring,8X2 Industrial Air Spring |
||

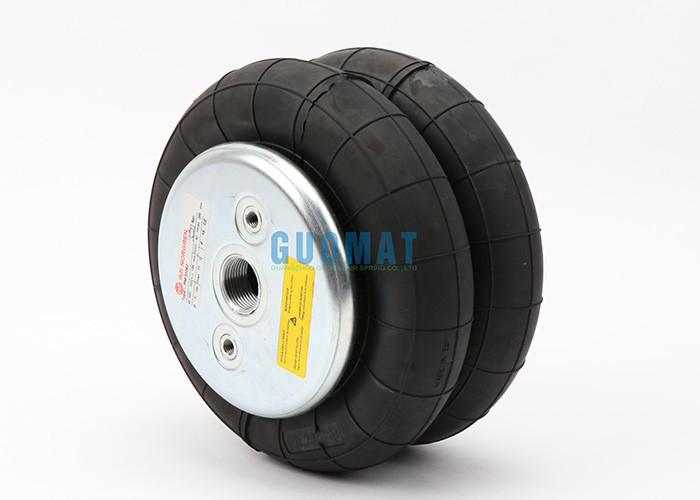

Norgren Imported PM/31082 Industrial Air Spring 8" diameter 185mm stroke 8X2 Double Convoluted
Description of Norgren PM/31082:
Norgren Imported PM/31082 this kind of double Convoluted Air Spring which is produced by Norgren. It can replace bellows Number 8"X2 ; PM/31082 air spring not only use in truck and trailer,but also as Vibratory conveyors,such as Large drying machines,Centrifugal separators,Coordinate measuring tables and machinery and Commercial laundry machines.
PM/31082 Specifications and Detail Technical Parameters:
Operation: Single acting
Stroke length: 185 mm
Port size: G3/4
Nominal diameter: 8"
Number of convolutions:
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4pcs X M10
Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M10
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/2
❸ Cover Plate
Top Cover Plate Diameter (Width): 184 mm
Bottom Cover Plate Diameter (Width): 184 mm
Material top and bottom plate:Steel
❹Rubber Bellows
Diameter max at 7 bar:225MM
Stroke of Rubber Bellows:75mm-225m
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
max force at stroke 25 mm and 5 bar 12,3 kN
Rubber material Standard up to 70°C natural rubber
| Medium: | Compressed Air |
|---|---|
| Port size: | G3/4 |
| Operation: | Single acting |
| Operating pressure: | 0 ... 8 bar |
| Operating temperature: | -30 ... 50 °C |
| Stroke length: | 185 mm |
| Theoretical force: | 16500 N |
| Range: | PM/31000 |
Other kinds of model air bellows:
W01-R58-4081 (2 3/4" x3)
W01-R58-4051 Dunlop Style 4,5 " x 2
W01-R58-4052 - (6" x1 steel)
Firestone W01-R58-4057 - (10 x1 steel)
Firestone W01-R58-4027 - 8x2 (Epichlorhydrin / Herclor)
Firestone W01-R58-4090 - 8"x2 Butyl
Firestone W01-R58-4055 - 8x2 Steel
Firestone W01-R58-4060 (12 x1 steel)
Firestone W01-R58-4077 (12 x1 Herclor )
Firestone W01-R58-4056 -8"x3 Steel
Firestone W01-R58-4062 (12 x3 Steel)
Firestone W01-R58-4065 (14 1/2 x3 Steel)
Firestone W01-R58-4098 (14 1/2 x1 Herclor)
Firestone W01-R58-4097 (14" 1/2 x2 Herclor)
Firestone W01-R58-4025 - (10" x1 Epichlorhydrin/Herclor)
Firestone W01-R58-4078 - (6 x1 Alu )
Firestone W01-R58-4070 - (6 x 2 Alu )
Firestone W01-R58-4053 - (6 x 2 Steel )
Firestone W01-R58-4059 - (10" x3 steel)
Firestone W01-R58-4054 - 8x1 Steel
Firestone W01-R58-4028 - 8"x1 Epichlorhydrin
Spar Part Bellow 8"x2 W01-R58-4045
Firestone W01-R58-4064 -14" 1/2 x2
Firestone W01-R58-4063 -14 1/2 x1
Bellow only 8" x 1 -- W01-R58-4085
Firestone W01-R58-4048
W01-R58-4080 - 2 3/4" x 2
Firestone W01-R58-4060- 12" x2 steel
Firestone W01-R58-4070 - (6 x 2 V2a )
Firestone W01-R58-4051E 4,5 x 2 Stainless Steel
Firestone W01-R58-4050
W01-R58-4080 - 2 3/4" x 1
Norgren PM/31082 Technical parameters Medium:
Compressed air, without lubrication Working pressure: up to 8 bar Working temperature: -PM / 31000 is 40 ° C to + 70 ° C. Important note: The construction of this air bellows enables operation at an angle of 5 ° to 25 ° Dietop and bottom plates may not be aligned depending on the height of the bellows and the number of turns.
To avoid damage, mechanical stops must be used in both end positions.In order to bring the air bellows back to its minimum height, an external restoring force must be applied.The thrust depends directly on the height of the bellows: with increasing height, the thrust decreases.Since the outside diameter changes during operation, there must be sufficient clearance around the air bellows.

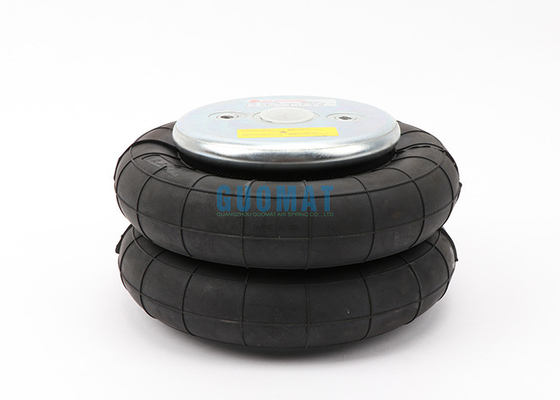

Detail real photo 1 of Norgren PM/31082:

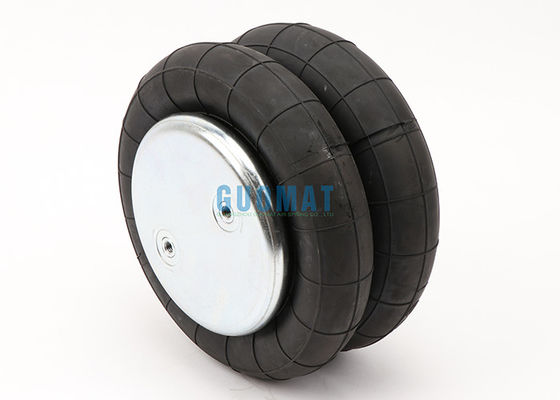

Detail real photo 2 of Norgren PM/31082:

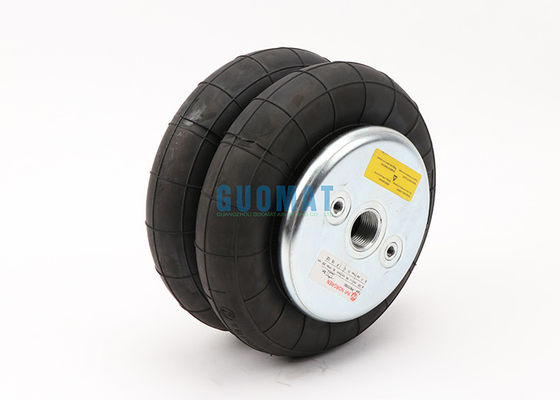

Detail real photo 3 of Norgren PM/31082:
