| Place of Origin: | Guangdong,China |
| Brand Name: | Goodyear |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B6-535 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel Cover Plate , Rubber Bellows | Goodyear: | 2B6-535 |
|---|---|---|---|
| Gas Hole: | 1/4NPTF | Screw Tooth: | 3/8-16UNC |
| Screw Center Distance: | 70 Mm | Cover Plate Diameter: | 105 Mm |
| Pressure Ability: | 0.2-0.8 M Pa | Stroke: | 71~231 Mm |
| Net Weight: | 3.5 Kg | Package Size: | 24*24*24 CM |
| High Light: | 579923515,FD110-15 766,2B6-535 Goodyear Air Spring |
||

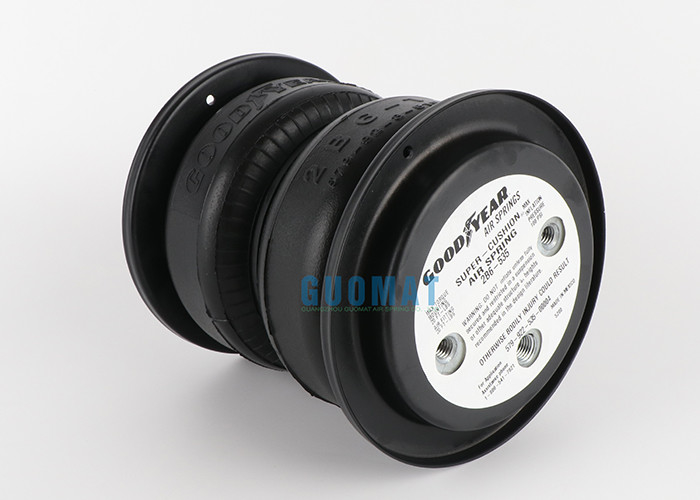

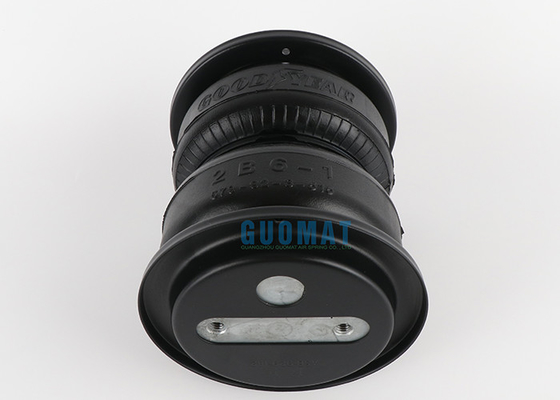

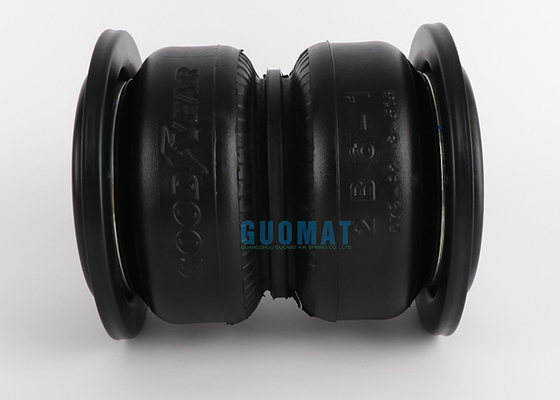

Goodyear Air Springs 2B6-535 Flexmember Number 579923515 Replaces CONTITECH FD110-15 766
2B6-535 Goodyear Air Spring Technical parameters
❶Nut / Blind Nut
Top plate screw (nut) teeth: 2 x 3 / 8-16UNC
The screw center distance of the top cover plate: 70 mm/2.75 inches
Screw (nut) teeth of the bottom cover plate: 2 x 3 / 8-16UNC
The screw center distance of the bottom cover plate: 70 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4-18NPTF
Screw Center Distance Between Gas Hole and Nut : 35 mm
❸ Cover Plate
Top Cover Plate Diameter: 105 mm
Bottom Cover Plate Diameter: 105 mm
❹Rubber Bellows
Maximum diameter of rubber bellows: 178 mm
Natural diameter of rubber bellows: 150 mm
Working stroke: minimum 71 mm to maximum 231 mm
Maximum height: 231 mm
Minimum height: 71mm
Stroke height: 160mm
Maximum OD @ 100 psi (inch): 178mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
2B6-535 Goodyear Air Spring Other information
Manufacturer: Goodyear
Brand name: Goodyear
Product weight: 3.5 kilograms
Package size: 24*24*24 CM
Roof hole / stud: 3 pcs
Floor hole / stud: 2 pcs
Top plate diameter: 4.15=105 mm
Base plate diameter: 4.15=105 mm
Folding height: 2.8=71 mm
Flexible members: 579-92-3-515
Goodyear Trim: 2B6535
Goodyear 2B6-535
Goodyear 2B6 535
Goodyear 2B6535
Goodyear Flexmember Number 579-92-3-515
Goodyear Flexmember Number 579 92 3 515
Goodyear Flexmember Number 579923515
Refer to
CONTITECH FD110-15766
CONTITECH FD110-15 766
CONTITECH FD110 15 766
Application of GOODYEAR 2B6-535
