| Place of Origin: | Guangdong,China |
| Brand Name: | Goodyear |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 3B12-301 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel Cover Plate , Rubber Bellows | Goodyear: | 3B12-301 |
|---|---|---|---|
| Gas Hole: | 1/4NPTF | Screw Tooth: | 3/8-16UNC |
| Screw Center Distance: | 157.5 Mm | Cover Plate Diameter: | 228.6 Mm |
| Pressure Ability: | 0.2-0.8 M Pa | Stroke: | 120~457 Mm |
| Net Weight: | 7.5 Kg | Package Size: | 33 X 33 X 22 Cm |
| High Light: | 3B12-301,FIRESTONE W013588030 |
||

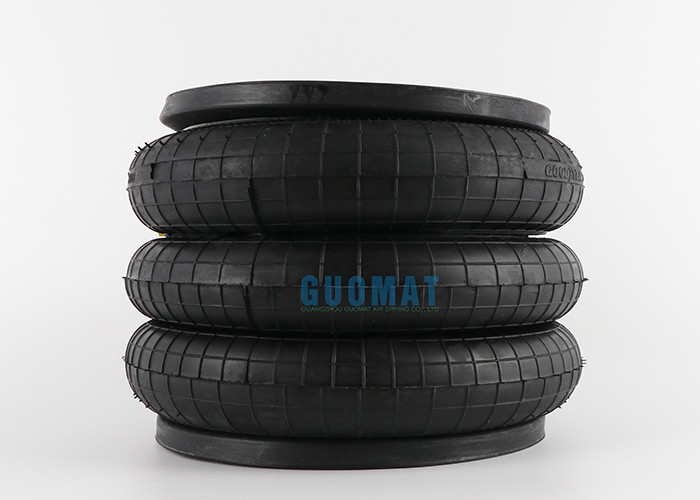

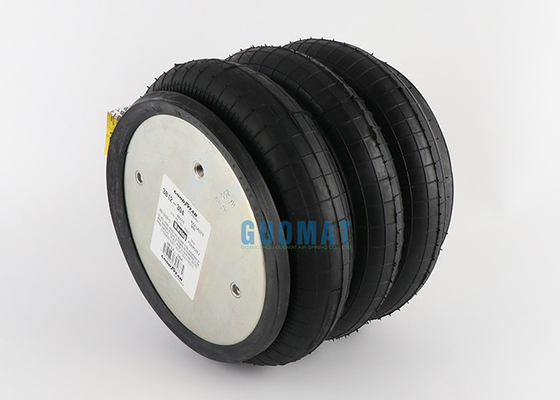

3B12-301 Goodyear Air Spring FIRESTONE W013588030 CONTI 64563 FT 330-29 432 TRIANGLE 4432
Manufacturer: Goodyear
Brand name: Goodyear
Product weight: 7.5 kilograms
Package size: 33 x 33 x 22 cm
Model: 3B12-301
3B12-301 Cross others OEM
Goodyear 3B12-301
Goodyear 3B12 301
Goodyear 3B12301
Goodyear Flexmember 578-93-3-100
Goodyear Flexmember 578 93 3 100
Goodyear Flexmember 578933100
Firestone: 8010；
Firestone:W01-358-8010
Firestone:W01 358 8010
Firestone:W013588010
Firestone: 8030；
Firestone:W01-358-8030
Firestone:W01 358 8030
Firestone:W013588030
Triangle spring: 4430
Triangle spring: 4503
Kangdi Technology: 64568
Suspension company: 200620
batco: 10-98006
UCF / Impex: AB-3B12-304
T.W. Distribution: AB8006
Dallas Spring: AS8006
Midland / Haldex: CS312304
Euclid / Meritor Aftermarket: E-FS8006
Euclid / Meritor Aftermarket: FS8006
Kangdi Technology: FT330-29503
Leland: SC2132
| AUTOMANN |
ABSP3B22R-8010 ABSP3B22R-8030 |
| LOAD GUARD | SC2119 |
| CONTI | 64563 |
| CONTI | FT 330-29 432 |
| FIRESTONE | 8010 |
| FIRESTONE | 8030 |
| FIRESTONE | W013588010 |
| FIRESTONE | W013588030 |
| RIDEWELL | 1003588010C |
| RIDEWELL | S-5844-C |
| RIDEWELL | 1003588030C |
| TRIANGLE | 4432 |
| TRP | AS80100 |

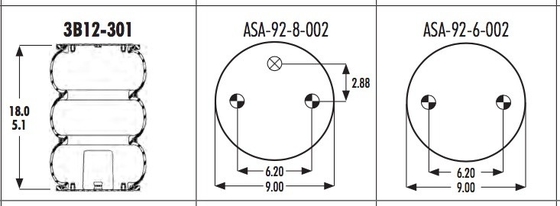

3B12-301 Goodyear Technical parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 157.5 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 157.5 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4-18NPTF
Screw Center Distance Between Gas Hole and Nut : 73 mm
❸ Cover Plate
Top Cover Plate Diameter: 228.6 mm
Bottom Cover Plate Diameter: 228.6 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 330 mm
Rubber Bellows Natural Diameter : 300 mm
The Working Stroke : MIN 120 mm to MAX 457 mm
Maximum Height : 457 mm
Minimum Height :120 mm
Stroke Height : 179mm
❺ Bumper block / Buffer block
Witht Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
Other kinds of goodyear :
