Place of Origin: | Guangdong,China |
Brand Name: | Goodyear |
Certification: | ISO/TS16949:2009 |
Model Number: | 3B12-310 |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | strong carton box or as customers need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union,Paypal or Others |
Supply Ability: | 1000pcs/week |
Material: | Steel Cover Plate , Rubber Bellows | Goodyear: | 3B12-310 |
---|---|---|---|
Gas Hole: | 1/4NPTF | Screw Tooth: | 3/8-16UNC |
Screw Center Distance: | 157.5 Mm | Cover Plate Diameter: | 228.6 Mm |
Pressure Ability: | 0.2-0.8 M Pa | Stroke: | 120~457 Mm |
Net Weight: | 7.5 Kg | Package Size: | 33 X 33 X 22 Cm |
High Light: | 3B12-310 Goodyear Rubber Air Spring,Silent Drive Goodyear Rubber Air Spring,FIRESTONE W013588027 |

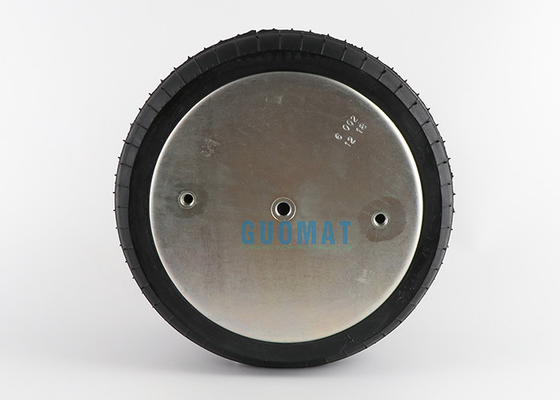

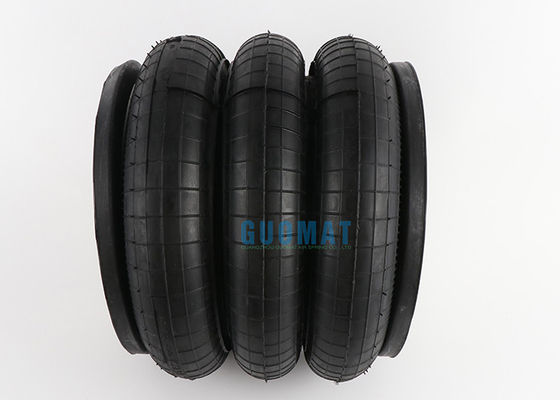

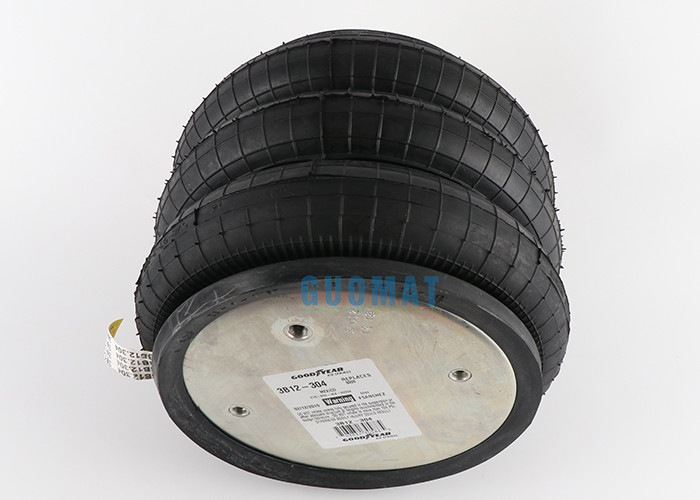

Goodyear Rubber Air Spring 3B12-310 FIRESTONE W013588027 For SILENT DRIVE AS-8025
3B12-310 Cross others OEM
Goodyear 3B12-310
Goodyear 3B12 310
Goodyear 3B12310
Goodyear Flexmember 578-93-3-100
Goodyear Flexmember 578 93 3 100
Goodyear Flexmember 578933100
Contitech FT 330-29 466 CI 1/4 NPT
Contitech FT 330 29 466
Contitech FT330-29 466
Firestone: 8018;
Firestone:W01-358-8027
Firestone:W01 358 8027
Firestone:W013588027
CONTI | 64565 |
CONTI | FT 330-29 466 |
FIRESTONE | 8027 |
FIRESTONE | W013588027 |
SUSPENSIONS INC.
|
200117 |
AUTOMANN | ABSP3B22R-802 |
TRIANGLE | 4466 |
TRP | AS80270 |
SILENT DRIVE | AS-8025 |
SILENT DRIVE |
AS-8027
|
3B12-310 Goodyear Technical parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 1 pc X 3/8-16UNC
Top Cover Plate Screw (Nut) Tooth :1 pc X3/4-16UNC
Screw Center Distance of Top Cover Plate : 157.5 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 157.5 mm
❷ Gas Hole / Air inlet / Air Fitting
Combination Stud Air Fitting:Stud – 3/4-16, Air Fitting – 1/4 NPTF
❸ Cover Plate
Top Cover Plate Diameter: 228.6 mm
Bottom Cover Plate Diameter: 228.6 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 330 mm
Rubber Bellows Natural Diameter : 300 mm
The Working Stroke : MIN 120 mm to MAX 457 mm
Maximum Height : 457 mm
Minimum Height :120 mm
Stroke Height : 179mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop

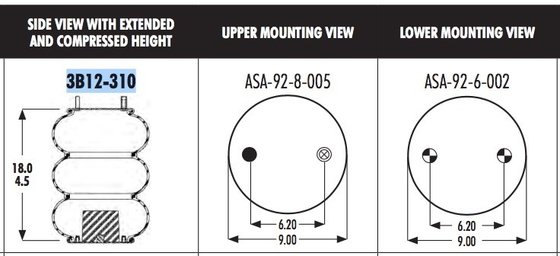

Goodyear 3B12-310 Drawing:
