| Place of Origin: | Guangdong,China |
| Brand Name: | Goodyear |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 3B12-322 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel Cover Plate , Rubber Bellows | Goodyear: | 3B12-322 |
|---|---|---|---|
| Gas Hole: | Air Fitting – 1/4 NPTF | Screw Tooth: | 3/8-16UNC |
| Screw Center Distance: | 157.5 Mm | Cover Plate Diameter: | 228.6 Mm |
| Pressure Ability: | 0.2-0.8 M Pa | Stroke: | 120~457 Mm |
| Net Weight: | 7.5 Kg | Package Size: | 33 X 33 X 22 Cm |
| High Light: | W013588042,578-93-3-103,3B12-322 Goodyear Air Spring |
||
578-93-3-103 Goodyear Air Spring 3B12-322 Goodyear Air Shock FIRESTONE W013588042 For NEWAY 905-57-236
Manufacturer: Goodyear
Brand name: Goodyear
Product weight: 7.5 kilograms
Package size: 33 x 33 x 22 cm
Model: 3B12-322
3B12-322 Goodyear Technical parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : Combination Stud Air Fitting:2 pcs XStud – 3/4-16
Screw Center Distance of Top Cover Plate : 157.5 mm
Bottom Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 157.5 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : Air Fitting – 1/4 NPTF
Screw Center Distance Between Gas Hole and Nut : 0 mm
❸ Cover Plate
Top Cover Plate Diameter: 228.6 mm
Bottom Cover Plate Diameter: 228.6 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 330 mm
Rubber Bellows Natural Diameter : 300 mm
The Working Stroke : MIN 120 mm to MAX 457 mm
Maximum Height : 457 mm
Minimum Height :120 mm
Stroke Height : 179mm
❺ Bumper block / Buffer block
With Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
Number of top plate holes / studs: 2
Top plate diameter: 9
Top plate C to C diameter: 6.2 inch
Base plate hole bolt Qyt: 2
Base plate diameter: 9 inch
Diameter of base plates C to C: 6.2 inch
Base plate part number:
Base plate alignment: parallel
Bumper: no
bracket:
Minimum height: 4.8 inch
Maximum height: 18 inch
| Air spring type | Top plate installation type |
| Swivel air spring | Air inlet |
| Top plate diameter | Air intake |
| 10.38 | 2 |
| Piston diameter | Air inlet distance |
| 10.38 | 5.50 |
| Bellows diameter | Piston installation type |
| 11.70 | Threaded hole |
| Minimum compression height | Piston threaded hole quantity |
| 4.55 | 4 |
| Inlet type | The distance between the bottom base studs |
| male | 4.38 |
| Inlet height | With inner bumper |
| 1.57 | Yes |
| Number of bellows | |
| 352 |
3B12-322 Goodyear Cross others OEM
Firestone 8042
Firestone W01-358-8042
Firestone W01 358 8042
Firestone W013588042
Goodyear 3B12-332,
Goodyear 3B12-332,
Goodyear 3B12-332
AUTOMANN
ABSP3B22R-8042
FIRESTONE
8042
W013588042
HENDRICKSON
1015
NEWAY
905-57-236

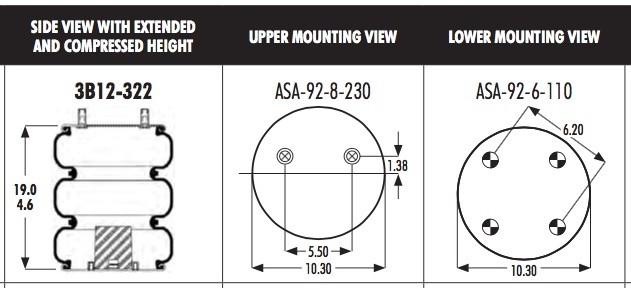

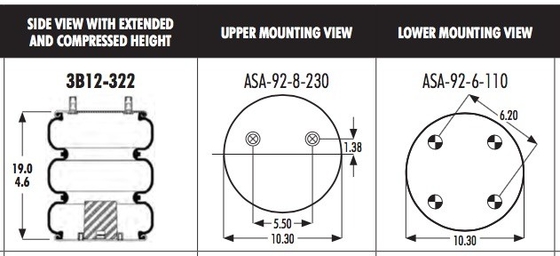

The drawing of GOODYEAR 3B12-322 air spring:
| 57893232200000 | 57893232200000 | 20118920 | Y | 3B12-322 | 3B12-322 |
| 57893232200004 | 3B12-322 | 20118921 | N | 3B12-322 Bellows Air Spring | 3B12-322 Bellows Air Spring |
| 57893232300000 | 57893232300000 | 20118922 | Y | 3B12-323 | 3B12-323 |
| 57893232300004 | 3B12-323 | 20118923 | N | 3B12-323 Bellows Air Spring | 3B12-323 Bellows Air Spring |
| 57893232400000 | 57893232400000 | 20113782 | Y | 3B12-324 | 3B12-324 |
| 57893232400004 | 3B12-324 | 20137951 | N | 3B12-324 Bellows Air Spring | 3B12-324 Bellows Air Spring |
| 57893232500000 | 57893232500000 | 20118924 | Y | 3B12-325 | 3B12-325 |
| 57893232500004 | 3B12-325 | 20118925 | N | 3B12-325 Bellows Air Spring | 3B12-325 Bellows Air Spring |
| 57893232500018 | 57893232500018 | 20118926 | Y | ENIDINE YI-3B12-325 | ENIDINE YI-3B12-325 |
| 57893232500019 | 57893232500019 | 20118927 | Y | ENIDINE YI-3B12-325 | ENIDINE YI-3B12-325 |
| 57893232600000 | 57893232600000 | 20118928 | Y | 3B12-326 | 3B12-326 |
| 57893232600004 | 3B12-326 | 20118929 | N | 3B12-326 Bellows Air Spring | 3B12-326 Bellows Air Spring |
| 57893232600018 | 57893232600018 | 20118931 | Y | ENIDINE YI-3B12-326 | ENIDINE YI-3B12-326 |
| 57893232600019 | 57893232600019 | 20118930 | Y | ENIDINE YI-3B12-326 | ENIDINE YI-3B12-326 |
| 57893232700000 | 57893232700000 | 20132717 | Y | 3B12-327 | 3B12-327 |
| 57893232700004 | 3B12-327 | 20132718 | N | 3B12-327 | 3B12-327 |
| 57893232800000 | 57893232800000 | 20132490 | Y | 3B12-328 | 3B12-328 |
| 57893232800004 | 3B12-328 | 20132491 | N | 3B12-328 Bellows Air Spring | 3B12-328 Bellows Air Spring |
| 57893232800077 | 57893232800077 | 20215646 | Y | 3B12-328 WATSON & CHALIN AS0019 | 3B12-328 WATSON & CHALIN AS0019 |
| 57893232900000 | 57893232900000 | 20132492 | Y | 3B12-329 | 3B12-329 |
| 57893232900004 | 3B12-329 | 20132493 | N | 3B12-329 Bellows Air Spring | 3B12-329 Bellows Air Spring |
| 57893232900077 | 57893232900077 | 20215647 | Y | 3B12-329 WATSON & CHALIN AS0048-2G | 3B12-329 WATSON & CHALIN AS0048-2G |
| 57893233000000 | 57893233000000 | 20130960 | Y | 3B12-330 | 3B12-330 |
| 57893233000004 | 57893233000004 | 20130961 | Y | 3B12-330 | 3B12-330 |
| 57893233400000 | 57893233400000 | 20156850 | Y | 3B12-334 | 3B12-334 |
| 57893233400004 | 3B12-334 | 20156851 | N | 3B12-334 | 3B12-334 |
| 57893233400055 | 57893233400055 | 20551236 | Y | 3B12-334 FOR MDC | 3B12-334 FOR MDC |
| 57893233500000 | 57893233500000 | 20141253 | Y | 3B12-335 | 3B12-335 |
| 57893233500004 | 3B12-335 | 20141254 | N | 3B12-335 Bellows Air Spring | 3B12-335 Bellows Air Spring |
| 57893233600000 | 57893233600000 | 20141257 | Y | 3B12-336 HENDRICKSON HEBRON 004645 | 3B12-336 HENDRICKSON HEBRON 004645 |
| 57893233600004 | 57893233600004 | 20141258 | Y | 3B12-336 HENDRICKSON HEBRON 004645 | 3B12-336 HENDRICKSON HEBRON 004645 |
| 57893233700000 | 57893233700000 | 20156098 | Y | 3B12-337 | 3B12-337 |
| 57893233700004 | 3B12-337 | 20156099 | N | 3B12-337 Bellows Air Spring | 3B12-337 Bellows Air Spring |
| 57893233800000 | 57893233800000 | 20156259 | Y | 3B12-338 | 3B12-338 |
| 57893233800004 | 3B12-338 | 20156300 | N | 3B12-338 Bellows Air Spring | 3B12-338 Bellows Air Spring |
