| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2H320240 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Aluminum Alloy And Rubber | Firestone: | W01-358-7925 |
|---|---|---|---|
| Warranty: | 12 Months | Net Weight: | 4 KG |
| Other Name: | Industry Air Spring Isolator | Pressure Ability: | 0.2-0.8 M Pa |
| Gross Weight: | 5 KG | Flange Ring: | Without |
| Connection Method: | Flange Connection | Flange Ring Size: | 384 Mm |
| BOLT CIRCLE DIA: | 350 Mm | ||
| High Light: | W01-358-7925,Double Convoluted Firestone Air Spring |
||

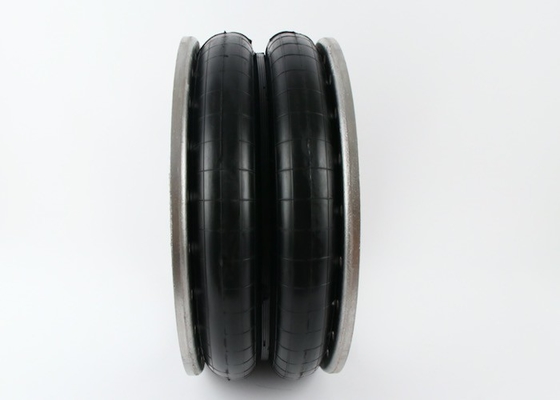

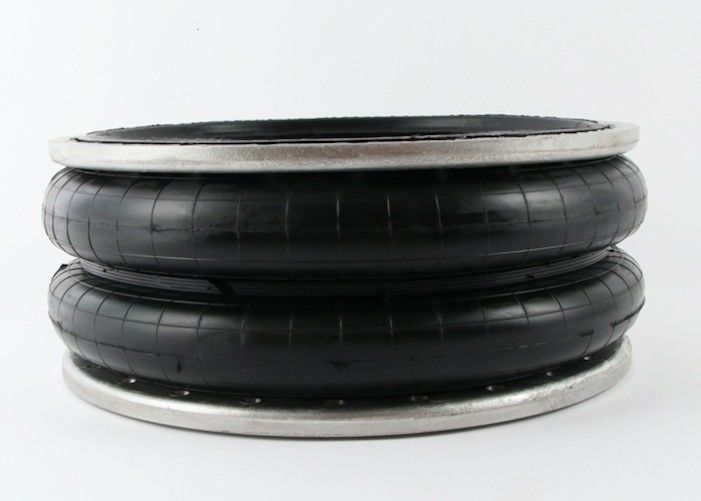

W01-358-7925 Firestone Air Spring Style 28 Double Convoluted Only Rubber Bellows Refer to GUOMAT 2H320240

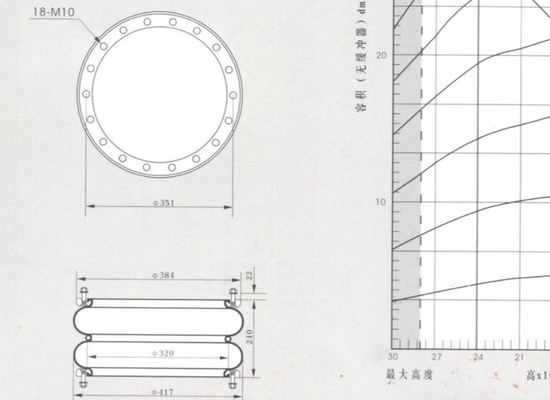

GUOMAT 2H320240 Industrial Double Convoluted Air Spring Specifications
| Design Height (mm) | 241 | Maximum Diameter @ 7 Bar (mm) | 442 |
| Load (at Design Height) at: 3 Bar (kN) | 22.2 | Maximum Height (mm) | 84 |
| Load (at Design Height) at: 5 Bar (kN) | 51.6 | Maximum Stroke (mm) | 173 |
| Load (at Design Height) at: 7 Bar (kN) | 54.1 | Minimum Usable Height (mm) | 257 |
| Natural Frequency (@5 Bar)(fn(Hz) | 1.7 | Force in kN @ 5 Bar at Stroke of 25 mm | 60.5 |
| % of Isolation at Forced Frequency 7 Hz | 92.8 | Force in kN @ 5 Bar at Stroke of 50% of Max Stroke | 50.9 |
| % of Isolation at Forced Frequency 13 Hz | 98.3 | Force in kN @ 5 Bar at Stroke of Maximum Stroke | 34.4 |
| % of Isolation at Forced Frequency 25 Hz | 99.5 | Style Cross-Ref High Strength Style Number | 201 |
| Material | 2-Ply Standard Cord |
GUOMAT 2H320240 Cross Firestone Air Spring
Rubber bellows only
Style 28 Two Ply Bellows
Ribbed neck aluminum bead,rings (equal spacing), 45 mm,bolts, nuts, washers:W01-M58-7531;W01 M58 7531;W01M587531
Rolled plate assembly,1/2 blind nuts, 3/4 NPT:SEE NOTE BELOW
Rubber bellows only:W01-358-7925;W01 358 7925;W013587925
Assembly weight.:.8.62 kg.
Force to collapse to minimum height (@ 0 BAR):169N.
W01-358-7191
W01-358-7194
W01-358-7192
W01-358-7271
W01-358-7925
W013587191
W013587194
W013587192
W013587271
W013587925
W01 358 7191
W01 358 7194
W01 358 7192
W01 358 7271
W01 358 7925
Style 201
High Strength Construction
Rubber bellows only:W01-358-0201;W01 3580201;W013580201
