| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 3LHF440/316 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Aluminum Alloy And Rubber | Torpress: | 93166 |
|---|---|---|---|
| Warranty: | 12 Months | Net Weight: | 10.8 KG |
| Other Name: | Industry Air Spring Isolator | Pressure Ability: | 0.2-0.8 M Pa |
| Gross Weight: | 12.0 KG | Flange Ring: | With Or Without |
| Connection Method: | Flange Connection | Flange Ring Size: | 502 Mm |
| BOLT CIRCLE DIA: | 459 Mm | ||
| High Light: | 3LHF440/316,93166 Industrial Air Spring |
||

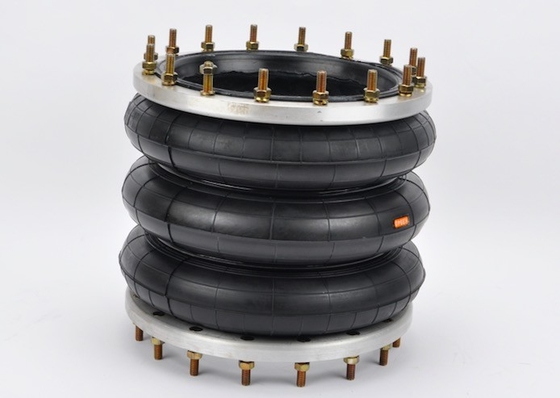

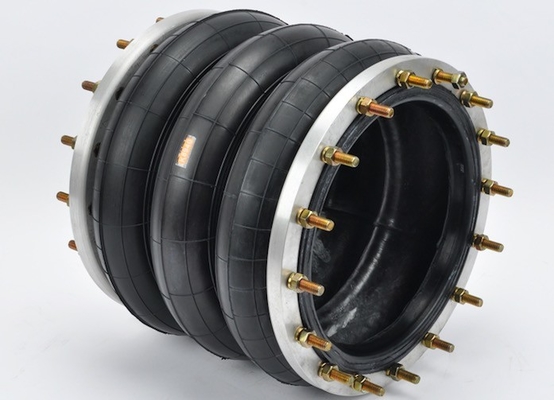

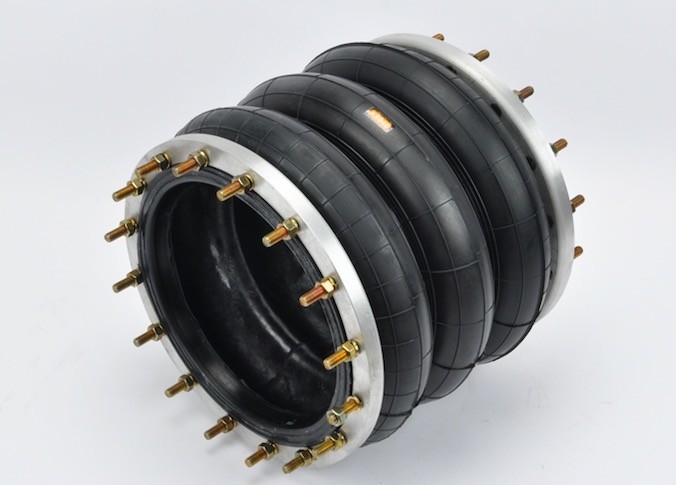

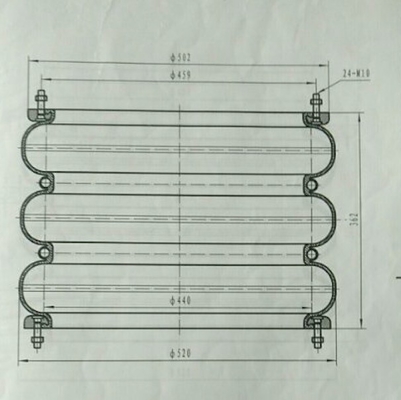

3LHF440/316 Industrial Air Spring Repalce 93166 Flange Ring Bolt Circle DIA 459 Mm Double Convoluted
Industrial Double Convoluted Air Spring Specifications
Rubber bellows only:torpress model 29
standard code 93166
| MODEL |
STAN- DARD Code
|
HIGH- TEMP Code
|
Connection |
Max OD MM |
Min. Height MM |
Max. Height MM |
Total Travel MM |
Thread Air tion Hole |
Connecting bolts or holes N. |
Connecting bolts or holes Ø |
| 31 | 95210 | No | F2 | 700 | 85 | 700 | 620 | No | 18 | M8x1 |
| 325 | 203332 | No | F2 | 400 | 80 | 500 | 420 | No | 18 | M8x1 |
| 322 | 92615 | No | P4 | 310 | 133 | 408 | 275 | M14x1.5* | 3 | M 12 x 1.5 |
| 322 | 87987 | No | F2 | 310 | 125 | 400 | No | 12 | M8x1 | |
| 321 | 88110 | No | F2 | 380 | 125 | 400 | 275 | No | 12 | M8x1 |
| Bead ring Type | 4 | Maximum Diameter @ 7 Bar (mm) | 558 |
| Dim. C (Bolt Circle Diameter mm) | 459 | Maximum Height (mm) | 490 |
| # of Bolts (each ring) | 24 | Maximum Stroke (mm) | 124 |
| Design Height (mm) | 362 | Minimum Usable Height (mm) | 267 |
| Load (at Design Height) at: 3 Bar (kN) | 34.9 | Force in kN @ 5 Bar at Stroke of 25 mm | 86.3 |
| Load (at Design Height) at: 5 Bar (kN) | 80.6 | Force in kN @ 5 Bar at Stroke of 50% of Max Stroke | 75.1 |
| Load (at Design Height) at: 7 Bar (kN) | 84.5 | Force in kN @ 5 Bar at Stroke of Maximum Stroke | 52.1 |
| Natural Frequency (@5 Bar)(fn(Hz) | 1.6 | Style Cross-Ref High Strength Style Number | 218 |
| % of Isolation at Forced Frequency 7 Hz | 93.9 | Material | 2-Ply Standard Cord |
| % of Isolation at Forced Frequency 13 Hz | 98.5 | % of Isolation at Forced Frequency 25 Hz | 99.6 |
