| Place of Origin: | China |
| Brand Name: | Goodyear |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B14-468 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel And Rubber | 2B14-468: | 2B14-468 |
|---|---|---|---|
| Warranty: | 12 Months | Weight: | 8.3kg |
| Other Name: | Air Spring Actuator | Pressure Ability: | 0.2-0.8 M Pa |
| Screw (Nut) Tooth: | 2pcsXM8X1.25 | Gas Hole: | 3/4NPTF |
| Goodyear Bellows: | 578923356 | ||
| High Light: | 2B14-468 Goodyear Air Spring,578-92-3-356 |
||

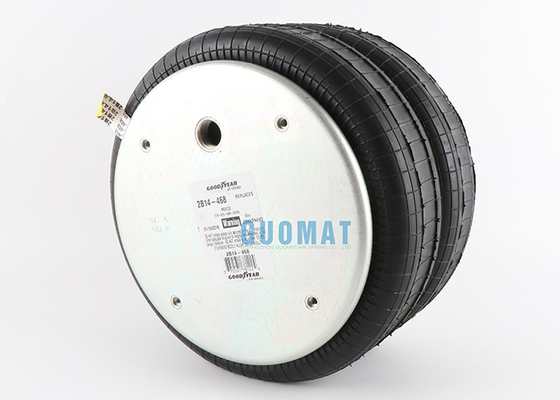

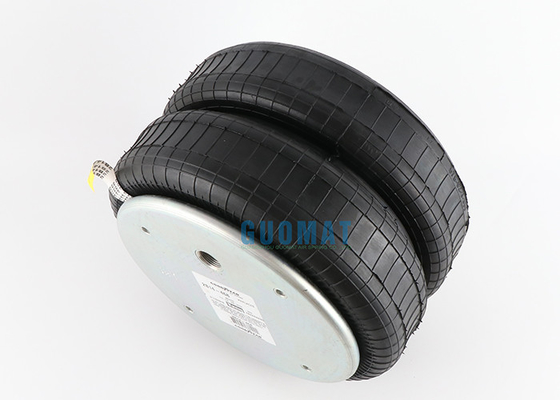

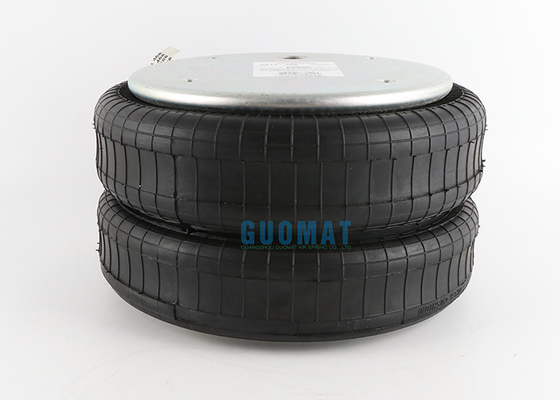

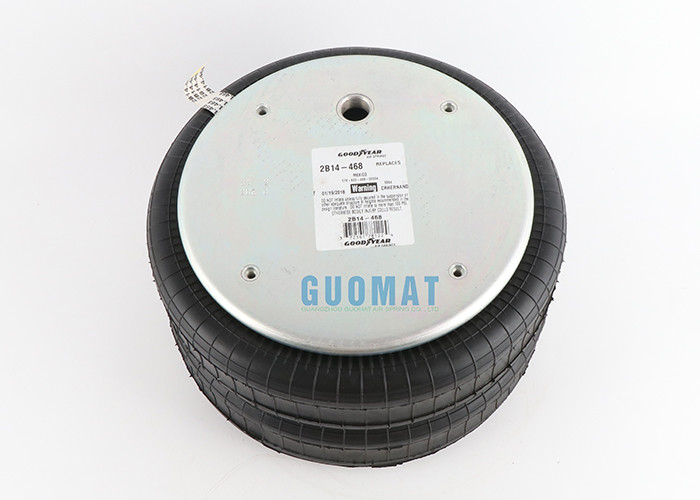

2B14-468 Goodyear Air Spring Bellows Number 578-92-3-356 Air Actuator
Goodyear Part 2B14-468 Technical parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4pcsXM8X1.25
Screw Center Distance of Top Cover Plate : 159 mm
Bottom Cover Plate Screw (Nut) Tooth :4pcsXM8X1.25
Screw Center Distance of Bottom Cover Plate :159 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 3/4-18NPTF
Screw Center Distance Between Gas Hole and Nut : 79.5 mm
❸ Cover Plate
Top Cover Plate Diameter: 287mm
Bottom Cover Plate Diameter: 287mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 406 mm
Rubber Bellows Natural Diameter : 320 mm
The Working Stroke : MIN 77 mm to MAX 355 mm
Maximum Height : 355mm
Minimum Height :77mm
Stroke Height : 278 mm
❺ Bumper block / Buffer block
Without or With Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
| Design Height (mm) | 267 |
| Load (at Design Height) at: 3 Bar (kN) | 16.7 |
| Load (at Design Height) at: 5 Bar (kN) | 39.2 |
| Load (at Design Height) at: 7 Bar (kN) | 41.1 |
| Natural Frequency (@5 Bar)(fn(Hz) | 1.6 |
| % of Isolation at Forced Frequency 7 Hz | 95.6 |
| % of Isolation at Forced Frequency 13 Hz | 98.8 |
| % of Isolation at Forced Frequency 25 Hz | 99.7 |
OEM Original Equipment Manufacturer:
Firestone bellows #22-1,
Goodyear Part # 2B14-468;
Goodyear Part #2B14 468;
Goodyear Part #2B14468
Goodyear bellows # 578-92-3-356;
Goodyear bellows # 578 92 3 356;
Goodyear bellows # 578923356
Firestone Part # W01-M58-6377;
Firestone Part #W01 M58 6377;
Firestone Part #W01M586377
The usal kinds of Double Convolution Air Springs
Style 21-2 Two Ply
Blind nuts, 1/4 BSP:W01-M58-6377;W01-M58-6377;W01 M58 6377;W01M586377
Blind nuts, 1/4 BSP, bumper:W01-M58-6379;W01 M58 6379;W01M586379
Blind nuts, 3/4 BSP:W01-M58-6378;W01 M58- 6378;W01M586378
Rubber bellows only:W01-358-0140;W01 358 0140;W013580140
Assembly weight (bead plate version, no bumper):8.3kg.
Force to collapse to minimum height (@ 0 BAR):156 N.
Goodyear other kinds of air springs:
| 57892246100000 | 57892246100000 | 20094884 | Y | 2B14-461 | 2B14-461 |
| 57892246200000 | 57892246200000 | 20094885 | Y | 2B14-462 | 2B14-462 |
| 57892246200004 | 2B14-462 | 20126196 | N | 2B14-462 Bellows Air Spring | 2B14-462 Bellows Air Spring |
| 57892246200082 | 57892246200082 | 20657133 | Y | 2B14-462 Torshin | 2B14-462 Torshin |
| 57892246200111 | 57892246200111 | 20662409 | Y | dummy for 2B14-462 | dummy for 2B14-462 |
| 57892246300000 | 57892246300000 | 20157114 | Y | 2B12-463 | 2B12-463 |
| 57892246300004 | 2B12-463 | 20132734 | N | 2B12-463 Bellows Air Spring | 2B12-463 Bellows Air Spring |
| 57892246400000 | 57892246400000 | 20114248 | Y | 2B14-464 TOOLING NOT YET AVAILABLE | 2B14-464 TOOLING NOT YET AVAILABLE |
| 57892246500000 | 57892246500000 | 20069531 | Y | 2B14-465 | 2B14-465 |
| 57892246600000 | 57892246600000 | 20094886 | Y | 2B12-466 | 2B12-466 |
| 57892246600004 | 57892246600004 | 20132915 | Y | 2B12-466 | 2B12-466 |
| 57892246700019 | 57892246700019 | 20106778 | Y | ENIDINE YI-2B14-467 | ENIDINE YI-2B14-467 |
| 57892246800004 | 2B14-468 | 20457850 | N | 2B14-468 | 2B14-468 |
| 57892246800019 | 57892246800019 | 20106779 | Y | ENIDINE YI-2B14-468 | ENIDINE YI-2B14-468 |
| 57892246900000 | 57892246900000 | 20135749 | Y | 2B14-469 | 2B14-469 |
| 57892246900004 | 2B14-469 | 20135820 | N | 2B14-469 Bellows Air Spring | 2B14-469 Bellows Air Spring |
| 57892246900034 | 57892246900034 | 20106772 | Y | 2B14-469 NEWAY 90557257 A | 2B14-469 NEWAY 90557257 A |
| 57892246900055 | 2B14-469 MDC | 20837718 | 2B14-469 MDC | 2B14-469 MDC | |
| 57892247000000 | 57892247000000 | 20106823 | Y | 2B14-470 | 2B14-470 |
| 57892247000004 | 2B14-470 | 20113669 | N | 2B14-470 Bellows Air Spring | 2B14-470 Bellows Air Spring |
| 57892247000034 | 57892247000034 | 20113701 | Y | 2B14-470 NEWAY 90557203 | 2B14-470 NEWAY 90557203 |
| 57892247300000 | 57892247300000 | 20132937 | Y | 2B14-473 | 2B14-473 |
| 57892247300004 | 2B14-473 | 20132936 | N | 2B14-473 Bellows Air Spring | 2B14-473 Bellows Air Spring |
| 57892247400000 | 57892247400000 | 20136941 | Y | 2B14-474 | 2B14-474 |
| 57892247400004 | 2B14-474 | 20136942 | N | 2B14-474 | 2B14-474 |
| 57892247400077 | 57892247400077 | 20215644 | Y | 2B14-474 WATSON & CHALIN AS0123G | 2B14-474 WATSON & CHALIN AS0123G |
| 57892247600000 | 57892247600000 | 20156644 | Y | 2B14-476 | 2B14-476 |
| 57892247600004 | 2B14-476 | 20156645 | N | 2B14-476 Bellows Air Spring | 2B14-476 Bellows Air Spring |
| 57892247700000 | 57892247700000 | 20184201 | Y | 2B12-477 | 2B12-477 |
| 57892247700004 | 2B12-477 | 20183207 | N | 2B12-477 | 2B12-477 |
| 57892247900000 | 57892247900000 | 20239817 | Y | 2B14-479 | 2B14-479 |
| 57892247900004 | 2B14-479 | 20239818 | N | 2B14-479 Bellows Air Spring | 2B14-479 Bellows Air Spring |
| 57892248000004 | 57892248000004 | 20258401 | Y | 2B12-480 | 2B12-480 |
| 57892248000076 | 57892248000076 | 20258402 | Y | 2B12-480 DANA S-3094-237 | 2B12-480 DANA S-3094-237 |
| 57892248700000 | 57892248700000 | 20395891 | Y | Halmek 578-9-2-3356M | Halmek 578-9-2-3356M |
| 57892248700004 | 2B14-487 | 20395893 | N | 2B14-487 | 2B14-487 |
| 57892248800000 | 57892248800000 | 20428774 | Y | 2B12-488 | 2B12-488 |
| 57892248800004 | 2B12-488 | 20428775 | N | 2B12-488 | 2B12-488 |
| 57892248900000 | 57892248900000 | 20677024 | Y | 2B14-489 | 2B14-489 |
| 57892248900004 | 57892248900004 | 20673737 | Y | 2B14-489 | 2B14-489 |
