| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B4067 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel Cover Plate , Rubber Bellows | Norgren: | 16X2 |
|---|---|---|---|
| Assembly Weight:: | 9.5 Kg | Natural Diameter: | 430 Mm |
| Pressure Ability: | 0.2-0.8 M Pa | Design Height: | 77-230mm |
| DIA OF PLATE: | 311MM | ||
| High Light: | W01-R58-4067 Air Lift Helper Bags,Air Lift Helper Bags 510008DX,SP 1557 Air Lift Helper Bags |
||

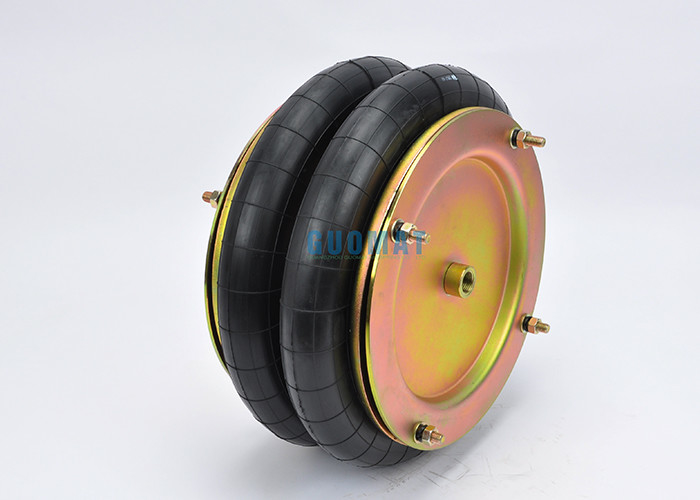

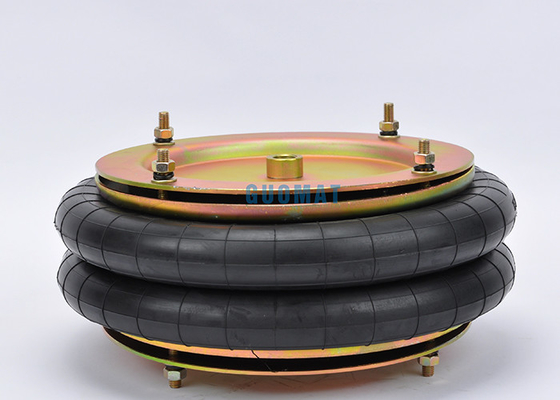

W01-R58-4067 Industrial Air Springs Bellows DUNLOP SP 1557 WEWELER USN 510008DX
W01-R58-4067 Data:
GUOMAT NO.:2B4067
Rubber bellows:16 X 2
Rubber bellows:16X2
Firestone:W01-R58-4067
Firestone:W01 R58 4067
Firestone:W01R584067
Net weight:9,43 KG
WEWELER USN 510008DX
DUNLOP SP 1557
DUNLOP SP1557
Continental ContiTech: FD 816-30 1/2 M10
Continental ContiTech order number: 68052
European ContiTech: FD 816-30 DS G1/2[GB/CN/DE]
Continental ContiTech order number: 68052
Dunlop FR: SP1557
Dunlop FR bellows: 16"x2
Dunlop UK (Pneuride): PNP 30415 0113
Dunlop UK (Pneuride) bellows: 16"x2
Firestone Code: W01-R58 4067 (Airstroke TM Actuator 1 AirideTM Spring)
Firestone style: 16 x2
IMI Norgren: M/31162
Oria: 16x2
Parker: 9109171
Parker type: 16x2
Pneumatic: DB1628
Pneumatic bellows: 16"x2
Sopra: DB-1628
Sopra Tyle: 16” x2
Trelleborg Rubena: 16" x 2
Original parts
Weweler
Application: Trailer
Model:-
OE Number: USN 510008DX
16X2 AIRSPRING
LOBES: 2
ø MAX: 430
STATIC HEIGHT: 180 MM
TOTAL STROKE: 243 MM
MAX ANGLE: 15º
MAX AXIAL OFFSET: 10 mm
øC: 283
ø SPACE ENVELOPES: 445 MM
LOAD IN daN: 9
MAX WORK PRESSURE: 8 BAR
BURST PRESSURE: 25 BAR
WEIGHT: 6.12 LBS
DIMENSIONS: 16" X 16" X 4"
Operation mode: Single actionStroke: 315 mmPort size: G1 / 2Nominal diameter: 16"Convolution number: 2

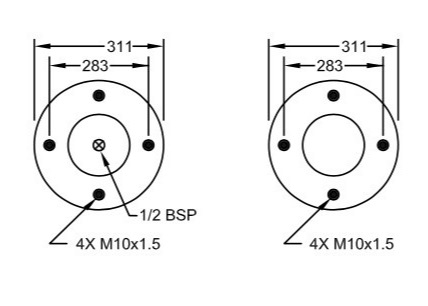

❶Nut/ Blind Nut
Top cover screw (nut) teeth: 4x M10
Top cover screw center distance: 282 mm
Bottom cover screw (nut) teeth: 4x M10
Bottom cover screw center distance: 282 mm
❷ air hole / air inlet / air connector
Air vent / air inlet: 1 / 2 BSP
❸ cover
Top cover diameter (width): 311MM
Bottom cover diameter (width): 311MM

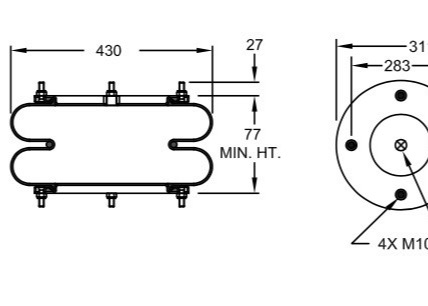

❹Rubber bellows
Rubber bellows MAX diameter: 430 mm
Working stroke: 77 MM- 320 MM
Maximum height: 320 MM
Minimum height (compression height): 77 mm
Stroke height: 155 mm
❺ bumper block / buffer block
No Bumper Block
Twisted waist/waist ring
Belt hoop: a band loop
| GUOMAT NO. | Model | Nominal Ø (inch) x convolutions | Maximum stroke (mm) | Air Port size |
| 1B 2 3/4x 1 | M/31021 | 2 3/4“ x 1 | 20 | G1/4 |
| 2B 2 3/4x 2 | M/31022 | 2 3/4“ x 2 | 45 | G1/4 |
| 3B 2 3/4x 3 | M/31023 | 2 3/4“ x 3 | 65 | G1/4 |
| 1B 4 1/2x 1 | M/31041 | 4 1/2“ x 1 | 140 | G3/8 |
| 2B 4 1/2x 2 | M/31042 | 4 1/2“ x 2 | 280 | G3/8 |
| 1B 6x 1 | M/31061 | 6" x 1 | 155 | G1/2 |
| 2B 6x 2 | M/31062 | 6" x 2 | 155 | G1/2 |
| 1B 8x 1 | PM/31081 | 8" x 1 | 95 | G3/4 |
| 2B 8x 2 | M/31082 | 8" x 2 | 185 | G3/4 |
| 1B 9 1/4x 1 | M/31091 | 9 1/4” x 1 | 105 | G3/4 |
| 2B 9 1/4x 1 | M/31092 | 9 1/4“ x 1 | 230 | G3/4 |
| 1B 12x 1 | M/31121 | 12" x 1 | 105 | G3/4 |
| 2B 12x 2 | M/31122 | 12" x 2 | 215 | G3/4 |
| 3B 12x 3 | M/31123 | 12" x 3 | 315 | G3/4 |
