Place of Origin: | Guangdong,China |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949:2009 |
Model Number: | 2Y205130 |
Minimum Order Quantity: | 1pc |
---|---|
Packaging Details: | strong carton box or as customers need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union,Paypal or Others |
Supply Ability: | 1000pcs/week |
Material: | Steel Cover Plate , Rubber Bellows | Norgren Air Spring: | M/31082 |
---|---|---|---|
Goodyear: | 2B8-2150 | Firestone: | W01R584090 |
Plate Dia.: | 153.5mm | Max Dia.: | 175mm |
Pressure Ability: | 0.2-0.8 MPa | Air Inlet: | G1/2 |
Stroke: | 115mm | ||
High Light: | Goodyear 2B8-2150 Norgren Air Bellows,M/31082 Norgren Air Bellows,W01R584090 Firestone Norgren Air Bellows |

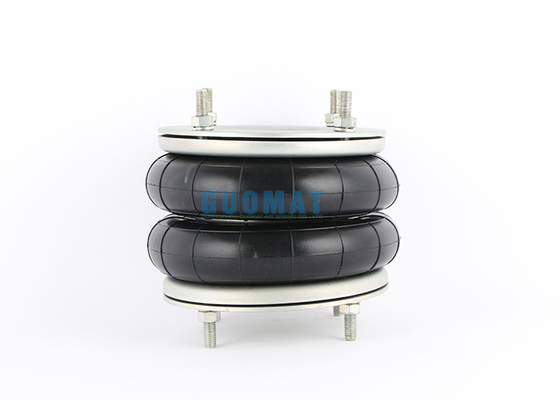

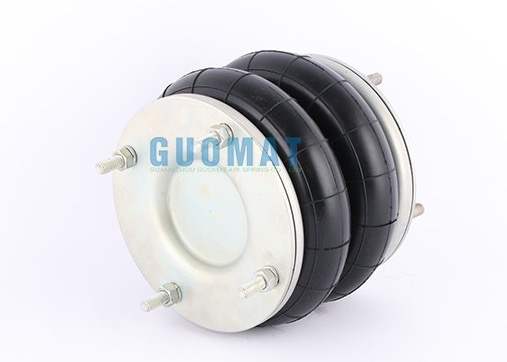

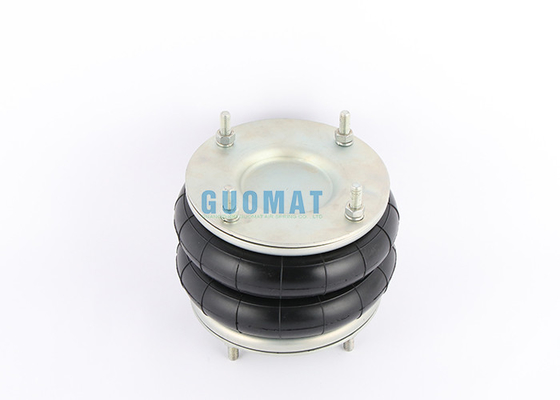

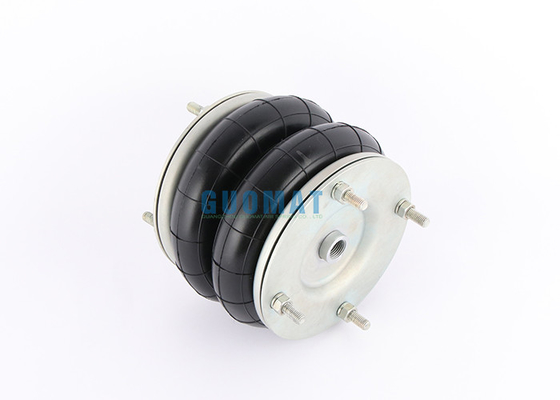

Norgren Air Spring M/31082 Cross to Goodyear 2B8-2150 With 203.2 Rubber Dia.
GUOMAT 2Y205130 Cross OEM :
GUOMAT Part Number:2Y205130
Norgren Part Number:M/31082
Norgren Part Number:M 31082
Norgren Part Number:M31082
Goodyear Part Number:2B8-2150
Goodyear Part Number:2B8 2150
Goodyear Part Number:2B8-2150
Continental Part Number: FD 138-18 DS 66505
Continental Part Number: FD 138-181/2 M10
Continental Part Number: FD 138-18 DS 1/2 M10
Continental Part Number: FD-138 DS G1/2
Continental Part Number: FD 138-18 DS G1/2 M10
Continental Part Number: FD 138-18 DS 1 FD138-18DS 1 FD13818DS
Continental Part Number:: FD 138-18 / FD138-13-181 1
Contitech Part Number: FD 138-18 DS 66505
Contitech Part Number: FD 138-181/2 M10
Contitech Part Number: FD 138-18 DS 1/2 M10
Contitech Part Number: FD-138 DS G1/2
Contitech Part Number: FD 138-18 DS G1/2 M10
Contitech Part Number: FD 138-18 DS 1 FD138-18DS 1 FD13818DS
Contitech Part Number:: FD 138-18 / FD138-13-181 1
Specifications of Style 8" x2
Compressed height | Metric |
2.95" | Air inlet |
Maximum deployment height | 1/2" |
9.84" | series |
The maximum diameter | D |
9.06" | lowest temperature |
Maximum inflation pressure | -76°F |
120 psi | Maximum temperature |
Maximum stroke | 158 degrees F |
6.89" | Bellows type |
Inlet type | Double zigzag |
weight | |
1 pound. |
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4pcs X M10
Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M10
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/2
❸ Cover Plate
Top Cover Plate Diameter (Width): 184 mm
Bottom Cover Plate Diameter (Width): 184 mm
Material top and bottom plate:Steel
❹Rubber Bellows
Diameter max at 7 bar:225MM
Stroke of Rubber Bellows:75mm-225m
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
max force at stroke 25 mm and 5 bar 12,3 kN
Rubber material Standard up to 70°C natural rubber
Bellows type industrial air spring,
Double spin,
138 square centimeters of effective area,
18 cm maximum stroke,
Bellows only
Features
Single acting
Aperture (inch)
8
Stroke length (mm)
175
Port size (inch)
G1/2
End cap material
aluminum
body fluid
Compressed air
Working temperature (°C)
From -40 to 70
Working pressure (bar)
From 0 to 8
Standard models
Model Nominal Ø (inch) Maximum stroke Port size x convolutions (mm) |
PM/31021 2È" x 1 20 G1/4 |
PM/31022 2È" x 2 45 G1/4 |
PM/31023 2È" x 3 65 G1/4 |
PM/31041 4Ë" x 1 40 G3/8 |
PM/31042 4Ë" x 2 80 G3/8 |
PM/31061 6" x 1 55 G1/2 |
PM/31062 6" x 2 115 G1/2 |
PM/31081 8" x 1 95 G3/4 |
PM/31082 8" x 2 185 G3/4 |
PM/31091 9Ê" x 1 105 G3/4 |
PM/31092 9Ê" x 2 230 G3/4 |
PM/31121 12" x 1 105 G3/4 |
PM/31122 12" x 2 215 G3/4 |
PM/31123 12" x 3 315 G3/4 |
Model Nominal Ø (inch) x convolutions Strokes Installation (mm) height B min. (mm) Installation kg height |
PM/31021 2 È x 1 20 50 70 0,21 |
PM/31022 2 È x 2 45 65 110 0,26 |
PM/31023 2 È x 3 65 80 145 0,30 |
PM/31041 4 Ë x 1 40 50 90 0,73 |
PM/31042 4 Ë x 2 80 65 145 0,91 |
Model Nominal Ø (inch) x
convolutions
Strokes Installation height (mm) B min. B max.
(mm) (mm)
Clearance around the air bellow
PM/31081 8x1 95 55 150
PM/31082 8x2 185 80 265
PM/31091 9 Ê x 1 105 55 160
PM/31092 9 Ê x 2 230 80 310
PM/31121 12 x 1 105 60 165
PM/31122 12 x 2 215 85 300
PM/31123 12 x 3 315 120 435
