| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 7008 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Product Name: | Single Convoluted Air Bellow | Other Name: | Air Spring, Air Suspension, Air Bellow |
|---|---|---|---|
| Material: | Steel+Rubber | Warranty: | 12 Months |
| Size: | OEM Standard | Shock Absorber Type:: | Gas-Filled |
| Quality: | 100% Tested | Sample: | Accept |
| High Light: | W01-358-7008 Industrial Air Spring,1B12-300/313 Industrial Air Spring |
||
Industrial Air Spring Firestone W01-358-7008 / Air Bellows FS330-11 474/Goodyear 1B12-300/313
Product Information
|
Description: Convoluted Industrial Air Spring Air Suspension Bellows Firestone :W01-358-7008 Contitech : FS 330-11 474 Goodyear :1B12-300/313 Triangle :6374/4474 Holland(Neway): 90557226 Model:For Truck / Trailer Material: Rubber Steel Position:Front Condition:Brand new Warranty:12 Months Packing: Neutral Packing Or As Requirement Delivery:after payment 2-8 working days Payment terms: Paypal, Western Union ,TT,L/C
|
Cross references are not a guarantee that a part will fit a specific application. Please check available information before replying on a cross reference to make a purchase.
Applications
Various applications for the vehicle industry such
---as steering damping, engine vibration damping, belt
---tensioning damping for engines and on driver seats in commercial vehicles, etc.
On household products such as washing machines
Special shock absorbers for bicycles
On commercial lawn movers
In the medical equipment industry ie. on wheelchairs

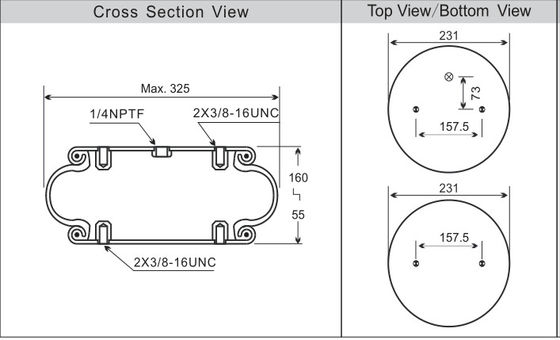

Detailed Data Drawing of Product
Air Spring Cover Plate Data
Top Cover Plate Diameter:231mm
Between Threaded Hole Distance on Top:157.5mm
Between Threaded Hole And Air Inlet Distance:73mm
Bottom Cover Plate Diameter:231mm
Between Threaded Hole Distance on Bottom:157.5mm
Air Spring Screw(Nut) Tooth Data
Screw(Nut) on Top Cover Plate:2X3/8-16UNC
Screw(Nut) on Bottom Cover Plate:2X3/8-16UNC
Air Spring Gas Hole/Air Inlet
Gas Hole/Air Inlet:1/4 NPTF
Air Spring Rubber Bellows Data
Rubber Bellows MAX Diameter:325mm
Air Spring Working Stroke Data
The Working Stroke:55mm~160mm
The Maximum Height:160mm
The Minimum Height:55mm
The Compressed Height:105mm
GUOMAT produces other kinds of truck air spring shocks:
| Contitech | Goodyear | Firestone | Phoenix |
| 928N | 8042 | W01-095-0228 | 2E23A |
| 943N | 9001 | W01-095-0189 | |
| 973N | 8012 | W01-095-0198 | 1F21A |
| 945N | 9014 | W01-095-0063 | 1E21C |
| 975N | W01-095-0437 | 1E10 | |
| W01-095-0294 | |||
| W01-358-9391 | |||
| 4913NP02 | 1R14-753 | W01-095-0500 | 1D28H-16 |
| 1R14-869 | |||
| 4159NP06 | W01-M58-0736 | ||
| 810NTB | 1R14-713 | W01-M58-0749 | 1DK28A4 |
| 4022NP02 | 1R11-709 | W01-M58-0756 | |
| 4022NP02 | 1R11-709 | W01-M58-0756 | |
| 836MB | W01-M58-0775 | 1DF25-4 | |
| 836MB | 1R12-700 | W01-M58-0776 | 1DF25-1 |
| 836M2K1 | 1R12-711 | W01-M58-8721 | 1DF25-13 |
| 887M | 1R11-796 | W01-M58-0780 | |
| 889MK2 | W01-M58-0781 | ||
| W01-M58-0918 | |||
| 4004NP02 | W01-M58-0919 | ||
| 4004NP02 | W01-M58-0919 | ||
| 6603NP02 | |||
| 4183NP23 | |||
| 4883N1P07 | |||
| 6609NP01 |

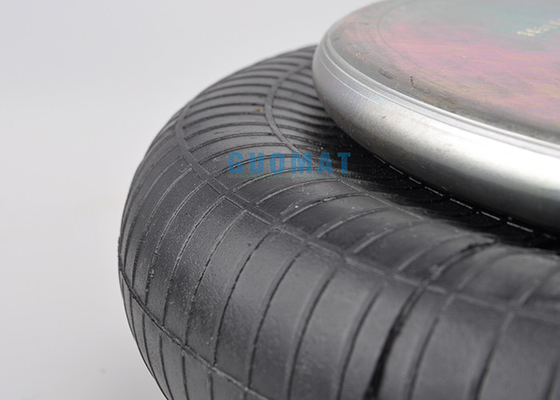

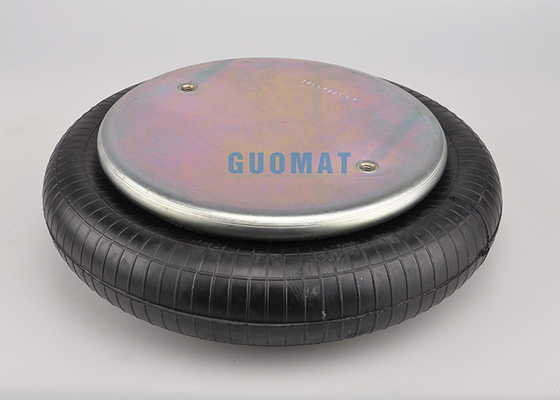

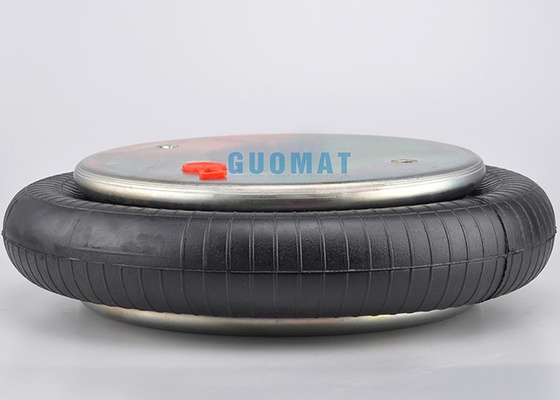

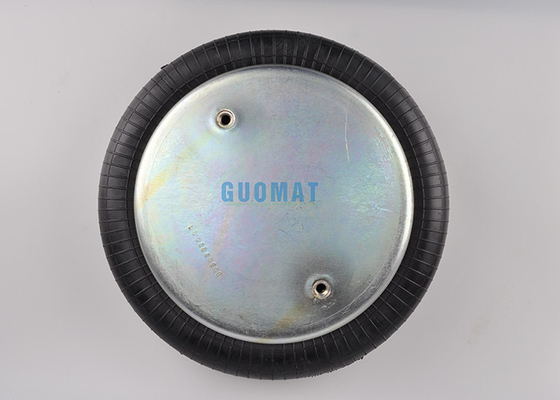

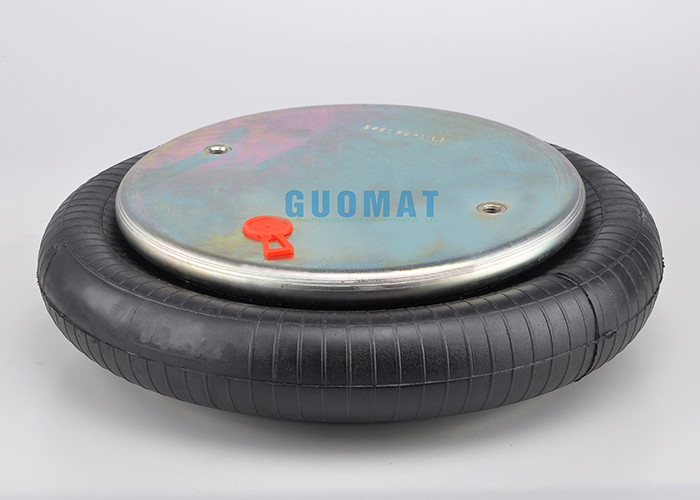

Product Images
