| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | W01-358-7598 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Place Of Origin: | Guangzhou China | Type: | SingleConvoluted Style |
|---|---|---|---|
| Spring Material: | Steel+Rubber | Warranty: | 12 Months,1 Year |
| Suspension System: | Air Suspension Spring | Shock Absorber Type:: | Gas-Filled |
| Packing: | Neutral Packing Or Customized | Quality: | 100% Tested |
| High Light: | Universal Lift Air Bag Suspension,W01-358-7598 Air Bag Suspension,Firestone Industrial Air Spring |
||

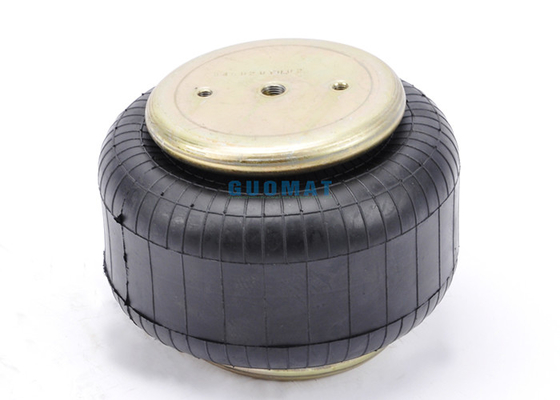

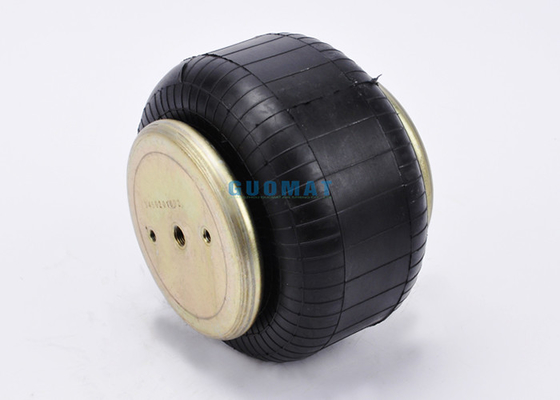

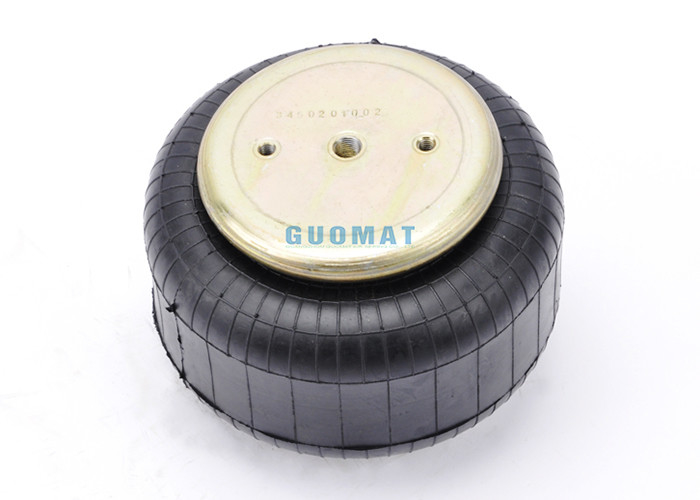

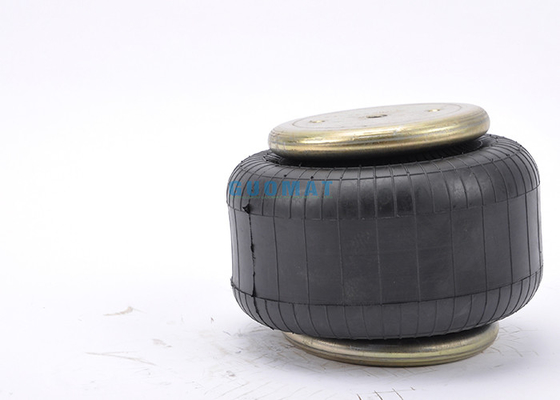

Universal Lift Air Bag Suspension Apply For Truck/Trailer W01-358-7598 Firestone
Product Describe
| Type Name | Firestone Lift Air Spring |
| Type Number | 1B 5054 |
|
Warranty |
12 Months |
|
Truck Model |
Heavy Duty Truck |
| Color | Black |
| Place of Origin | Guangzhou,China |
|
Certification |
ISO/TS16949:2009 |
|
Material |
Rubber+Steel |
|
Packing |
Neutral Packing |
|
MOQ |
1PCS |
|
Quality |
High-Quality |
|
Position |
Auto/Truck parts/Industrial Machine |
OEM Number
Firestone:W01-358-7598,W013587598,7598
Goodyear:1B8-580,1B 8 580
Technical Data
|
Top Cover Plate Diameter:135mm Bottom Cover Plate Diameter:135mm Rubber Bellows MAX Diameter:240mm The Working Stroke:MAX 180 mm to MIN 60 mm Screw Center Distance of Top Cover Plate:70mm Screw Center Distance of Bottom Cover Plate:70mm |
Manufacturers:Firestone
Manufacturers OEM Number:W01-358-7598
Airide springs can reduce your costs and increase your profits. Last at least twice, and as much as four times longer than steel springs Require little or no maintenance Increase life of tires and brake linings Substantially reduce breakage and maintenance of other vehicle components, including electrical, air conditioning, cab mounts, exhaust, chassis, seals, wiring and drive train Let you haul anything; eliminate expensive deadheading runs Reduce driver discomfort and dangerous fatigue; improve driver safety, productivity and loyalty Allow perfect load equalization between axles; let you run at the maximum legal limit Provide smoother ride for payload, reducing costly insurance claims and the expense of overpackaging Pay you back at trade-in time; trucks and trailers with air suspensions are worth more 100% of all air spring assemblies are pressure tested before they leave Firestones factory. Firestone is the original designer of composite pistons. Firestone rubber compounds have superior 'flex' range through temperatures of -65 F to 135 F. Air Spring Components Inside the World's No. 1 Air Spring: Airide springs are available in single, double and triple convolution types plus reversible sleeve models for virtually every conceivable heavy-duty vehicle suspension application.
1) Stud - Manufactured as a permanent part of the bead plate assembly for maximum strength and durability. Used to attach the spring to the vehicle's suspension.
2) Combo Stud - Serves the dual purpose of mounting the spring to the suspension and providing an entrance for air.
3) Blind Nut - Also a permanent part of the bead plate assembly. Provides an alternative mounting system to the stud.
4) Air Fitting - Usually 1/4 N.P.T. Provides an air entrance to the bellows.
5) Bead Plate - Crimped onto the bellows at the factory for a more durable design.
